3-4 CHAPTER 3: SETTING INTO OPERATION
ALPHA 552
Preparation for mounting
For mounting and installing the barfeed system, it is advisable to contact LNS
or one of its agents. The latter cannot be held responsible for any malfunction
resulting from an incorrect installation in which they did not take part.

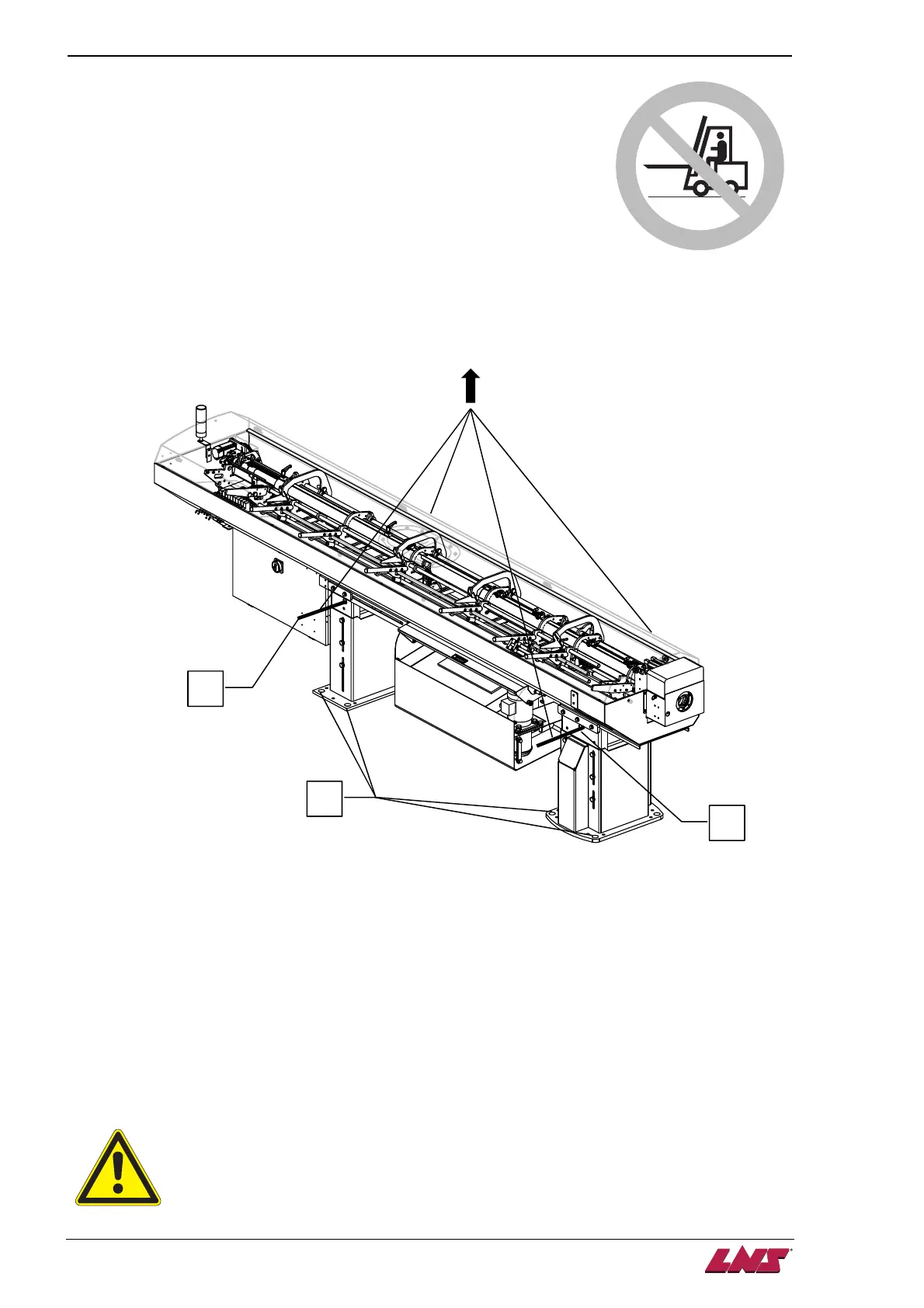

• Insert the two bars (B) delivered with the barfeed system into the holes of
the lifting plates.
• Place the hoist vertically above the barfeed system.
• Place the straps over the ends of the bars (B), then attach them to the hoist.
• Raise the hoist to tighten the straps.
• Remove the screws (A) holding the barfeed system to the pallet during transportation.
• Lift the barfeed system and remove the pallet. Ensure that the bar-feed system is balanced.
• Move the barfeed system, taking care that it remains horizontal and that no one is nearby or under
the suspended load.
• Do not knock the barfeed system as you move it; this may damage it.
• Place the barfeed system behind the lathe, as close as possible and in approximate alignment with
the spindle. For the placement, the stationary and mobile space requirements for the lathe and the
barfeed system should be taken into account. When placing the barfeed system insert levelling plates
under the feet.
The distance between the lathe and the barfeed system should not exceed 20 mm.
Should an obstacle impose a greater distance, contact LNS or their local
representative.
The area around the lathe and the barfeed system must be cleared to allow for their
maintenance and handling. It should remain clear after the installation is completed.
