5. 3S SYNCHRONIZATION
5.1. Description
The barfeed ALPHA 552 uses an electronic synchronization that is directly connected to the lathe to
measure the movements of the sliding headstock and replicate them to the pusher. This prevents the
small bar stock to be bent during the spindle movements.

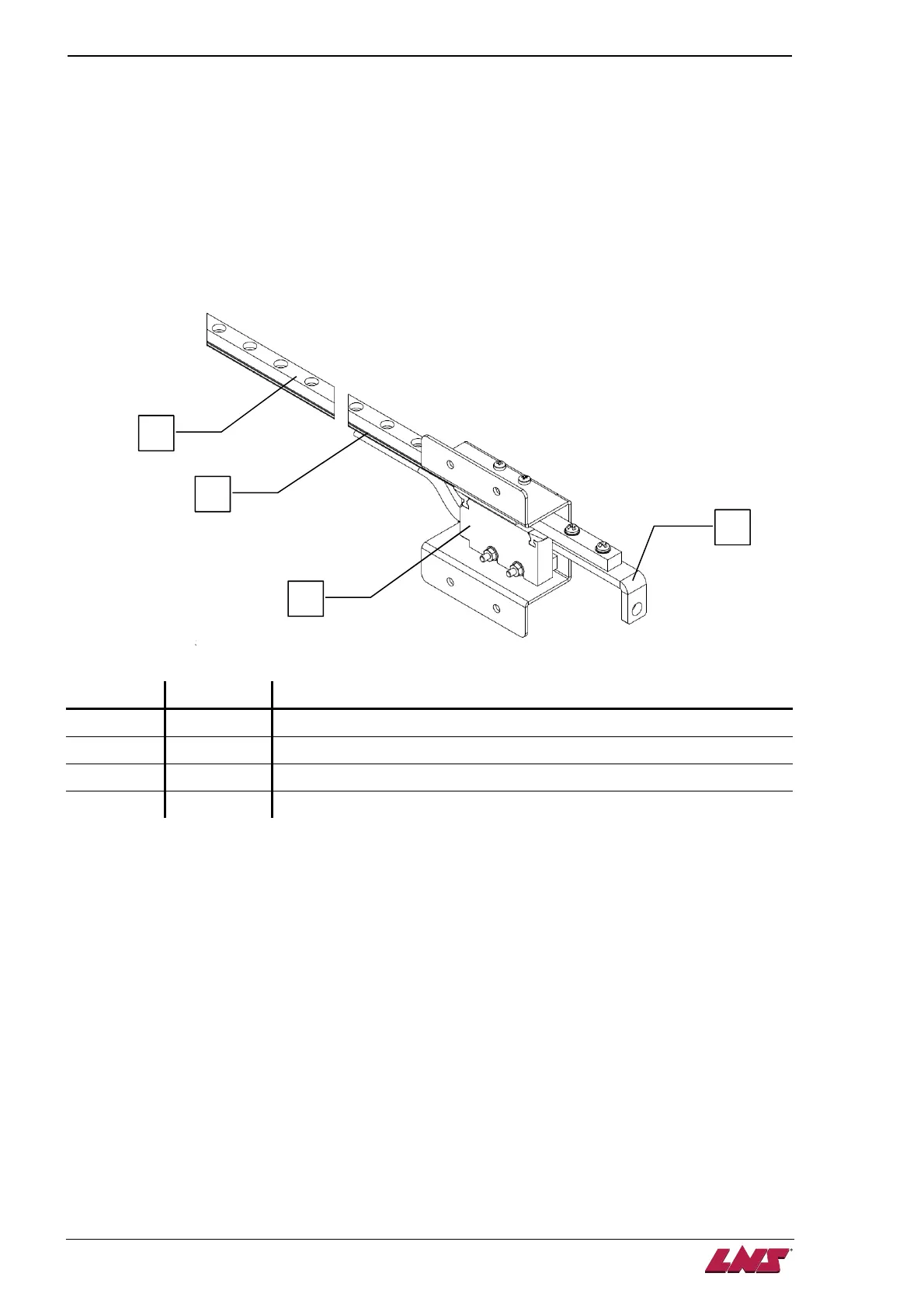

5.2. Layout of the elements
Designation Article No Description
A B16120301 Measurement switch
B B16120400 Magnetic track
C X51.16.P006A
Linear guiding
D - Attach to the spindle
D
A
B
C
