4-18 CHAPTER 4: ELECTRICS
ALPHA 552
4. INTERFACE

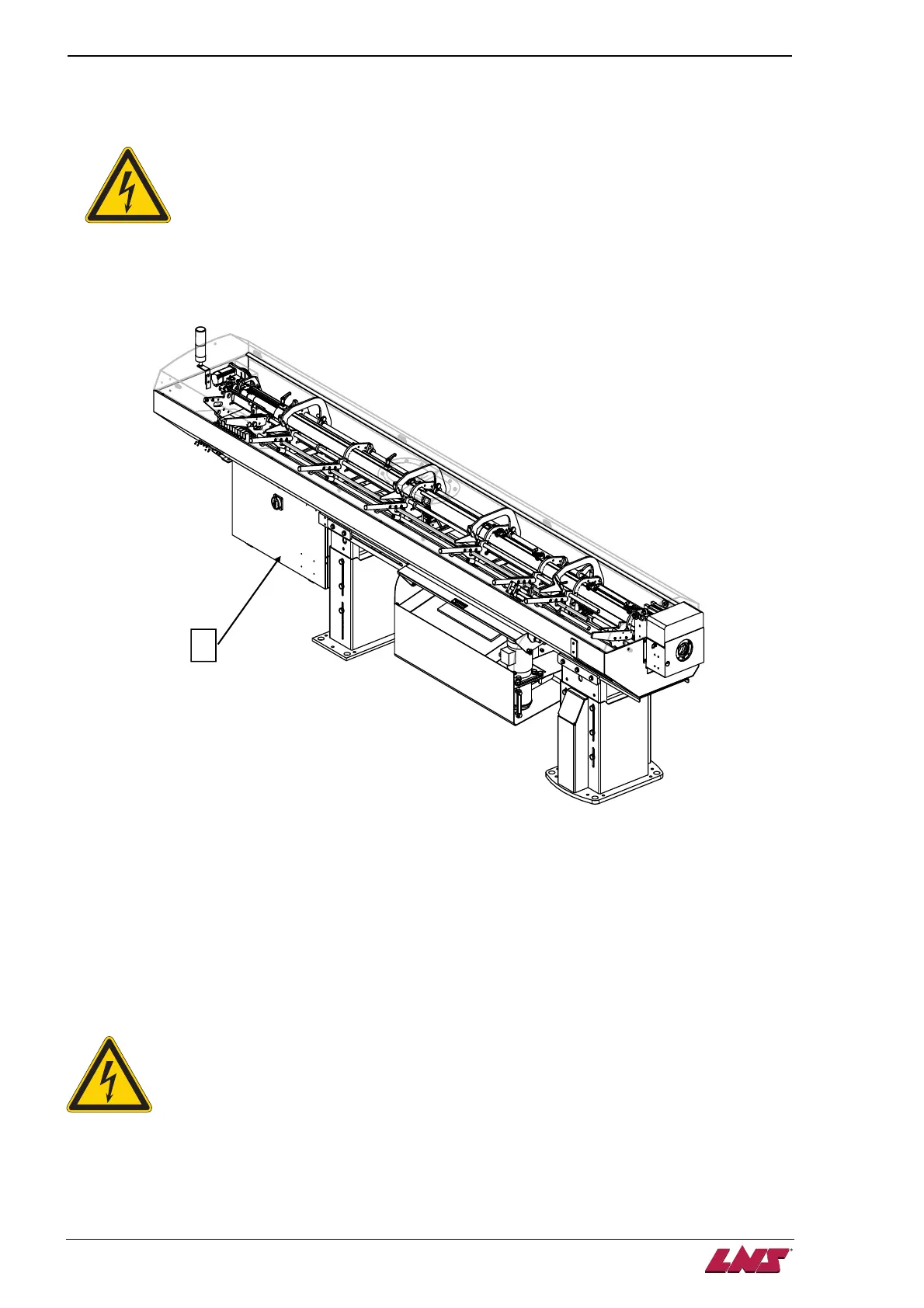

Before turning the power on, check that the voltage of the barfeed system corresponds
to that of the lathe. The voltage of the barfeed system is indicated on the identification
plate (A).
4.1. Description
The interface cable(s), between the barfeed system and the lathe, are provided by LNS.
The diagram for the interface corresponding to your device, essential when making the electrical
connection, is located inside the electrical cabinet.
When making connections, ensure that the cables are long enough to allow the entire travel of the
retraction system (500 mm).
Should the interface instructions not be observed during the setting into operation, the
damaged elements as well as the resulting damages are not covered by warranty.
