2-2 CHAPTER 2: TECHNICAL DATA
QUICK LOAD SERVO III MI
1. CHARACTERISTICS
Note : Depending on the country and the standards in effect, certain technical data, such as the
power supply, may vary. Please see the technical card delivered with the device.
Weight 570 Kg
Overall length 2048 mm
Overall width 1486 mm
Magazine depth 1000 mm
Height 1248 - 1748 mm
Centerline range 900 - 1149mm / 1150 - 1400 mm
X and Z axis retraction travel 600 mm
Minimum diameter (round) 6 mm
Maximum diameter (round) 102 mm
Minimum bar stock length 300 mm (*)
Maximum bar stock length 1300 mm (*)
Maximum bar stock weight 80 kg/barstock
Air pressure 5 bar
Maximum air consumption 6 litres (per loading cycle)
Main electrical power (volts) 220 - 480 volts / 50 Hz - 60 Hz
Maximum current rate (amps) 1 A
Pushing force/torque 167 Nm
Maximum feed rate > 100 m/min
Loading cycle for bar stock 8 - 12 secs.
Loading cycle for shaft loading (one shot) 4 - 7 secs.
(*) Depending on the barfeeder, these technical data may vary. Please refer to the Options for Quick
Load Servo III MI.

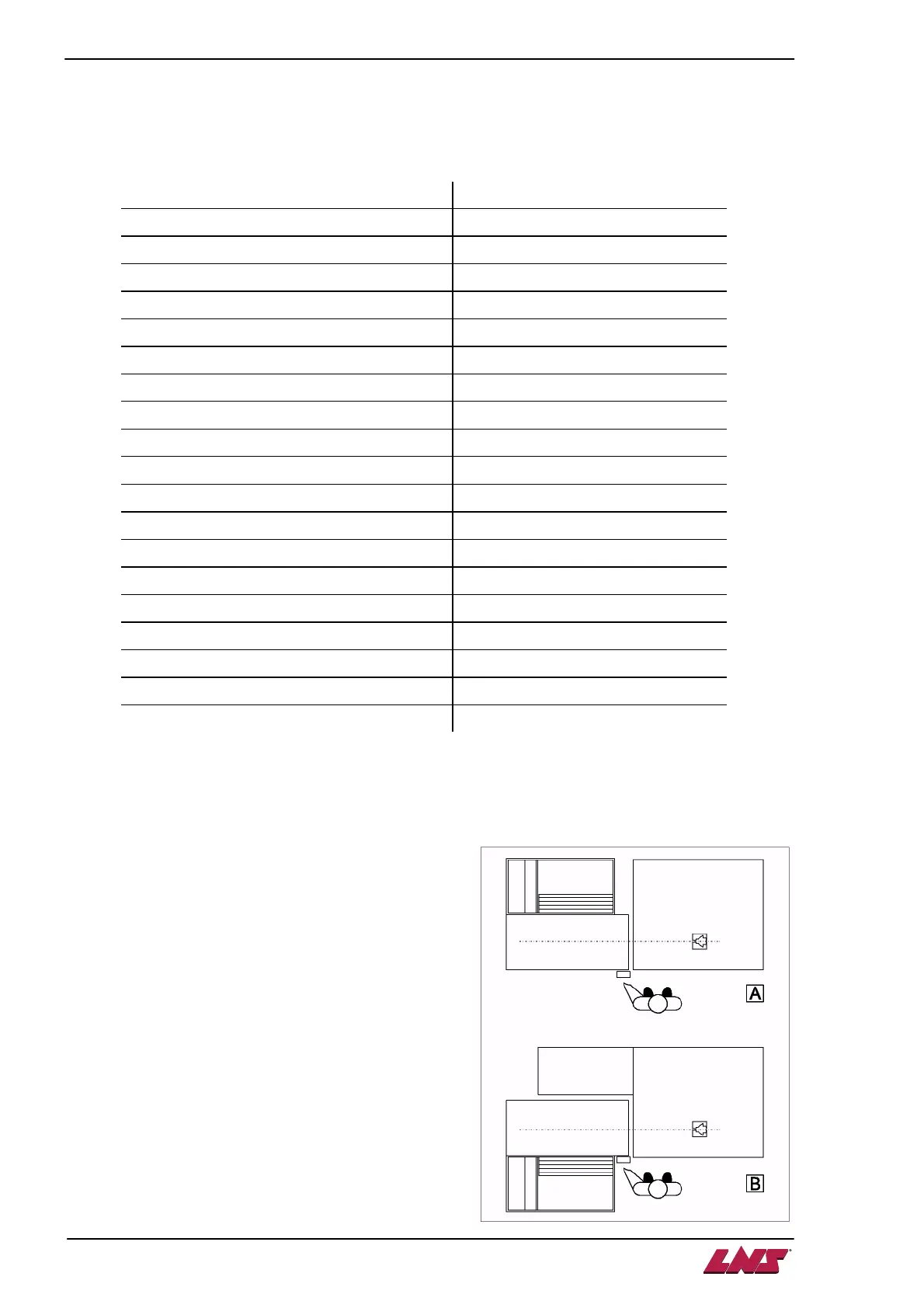

2. FLOOR PLANS
The following floor space plans indicate the most
frequently used dimensions for placing the bar feed
system. Details on the dimensions of other parts or
elements of the bar feed system will be furnished upon
request.
The plans 2.1. and 2.2. shows the Quick Load Servo II
MI bar feed system with left/rear loading (A).
The plans 2.3. and 2.4. shows the Quick Load Servo II
MI bar feed system with left/front loading (B).
All dimensions are in millimeters.
