6-10 CHAPTER 6: GENERAL DESCRIPTION
QUICK LOAD SERVO III MI

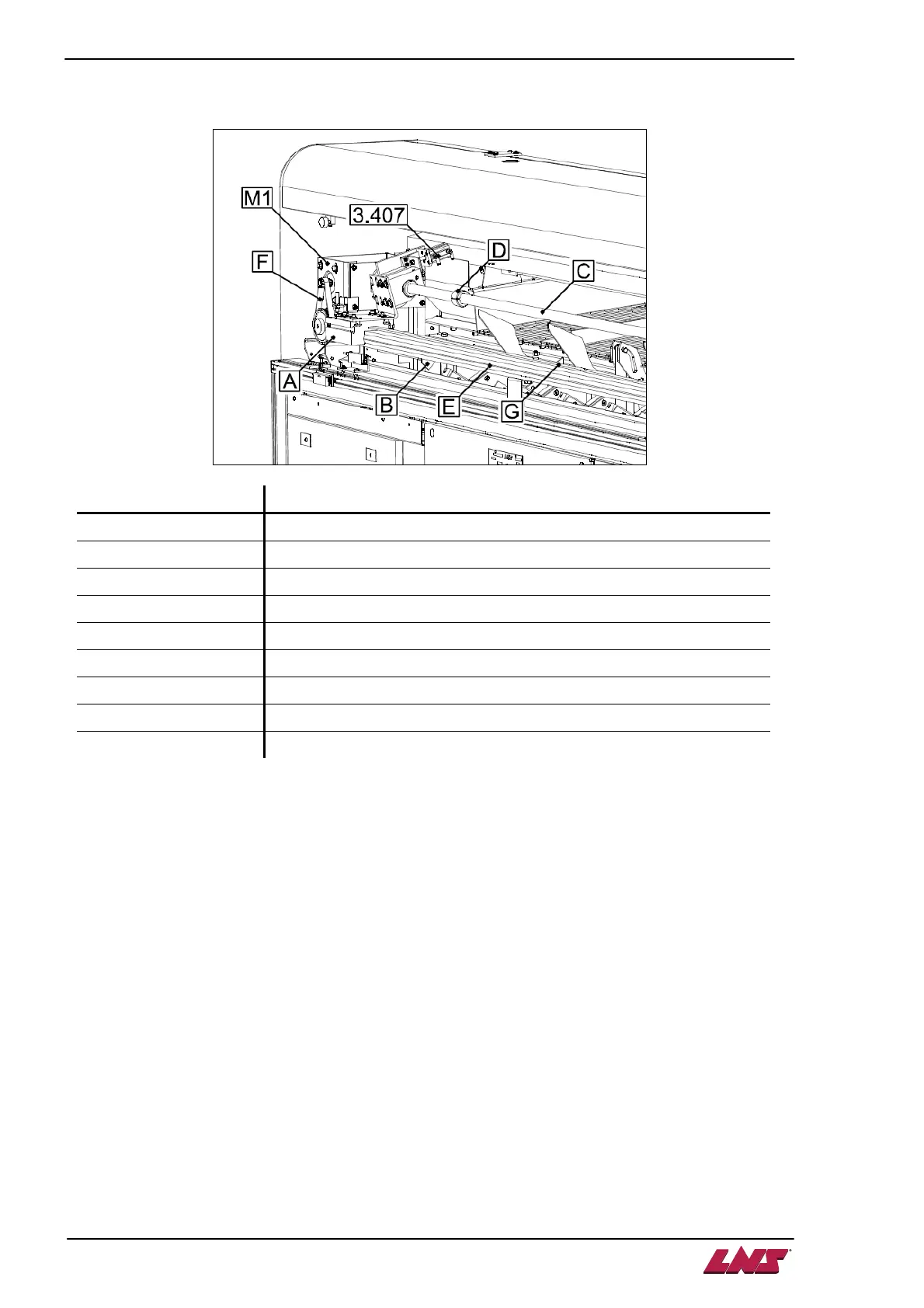

3.2. Layout of the elements
Designation Description
A Carrier
B Loading pusher
C Feeding pusher
D Mechanical stop
E Linear rail
F Notched belt
G Linear unit belt
3.95020.A.30 Locking cylinder
M1 Servo motor
4. LOADING PUSHER
Contrary to the feeding pusher, the loading pusher (A) does not need to be replaced when the bar
diameter changes.
Same-length bars may be loaded directly with a loading pusher without using the feeding pusher. To do
this, a special extended loading pusher, available as an option, is required. Selected parameters must
then be chosen; see Chapter 7 / point 4.2.7.
