CHAPTER 6: GENERAL DESCRIPTION 6-13
QUICK LOAD SERVO III MI
6. BELT
After it has been in use for some time, the bar feed system may indicate, by means of a message on the
display, that the tension of the belt (A) should be adjusted.
Should the tension be adjusted, make sure that while adjusting the belt remains under
tension in order not to lose the reference point. Should the reference point be lost, enter
the new reference point (Chapter 7 / point 5.2). Same procedure when the belt needs
replacement.
Procedure :
• Switch the bar feed system to STOP mode (remote station).
• Open the main access cover.

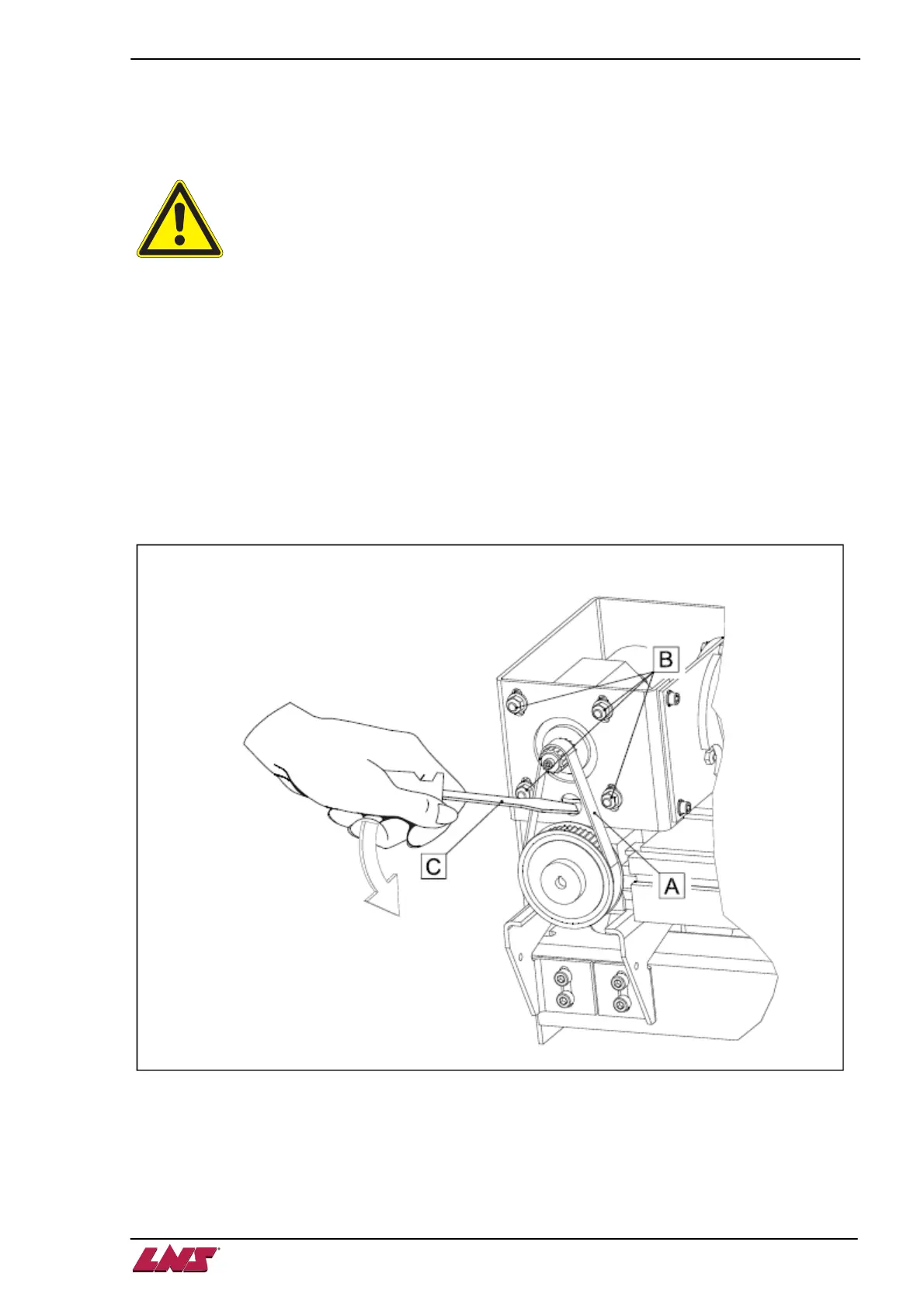

• Use a lever (C) in the opening between the pulleys to take the weight of the motor.
• Holding the weight of the motor, loosen the fixing screws (B).
• With the lever (C) push the motor up to tighten the dented belt (A).
• Holding the belt taut, tighten the fixing screws (B).
• Remove the lever and close the main access cover.
