6-16 CHAPTER 6: GENERAL DESCRIPTION
QUICK LOAD SERVO III MI
8. OPTIONS
Please read the safety precautions described at the beginning of this manual before
handling the following devices.

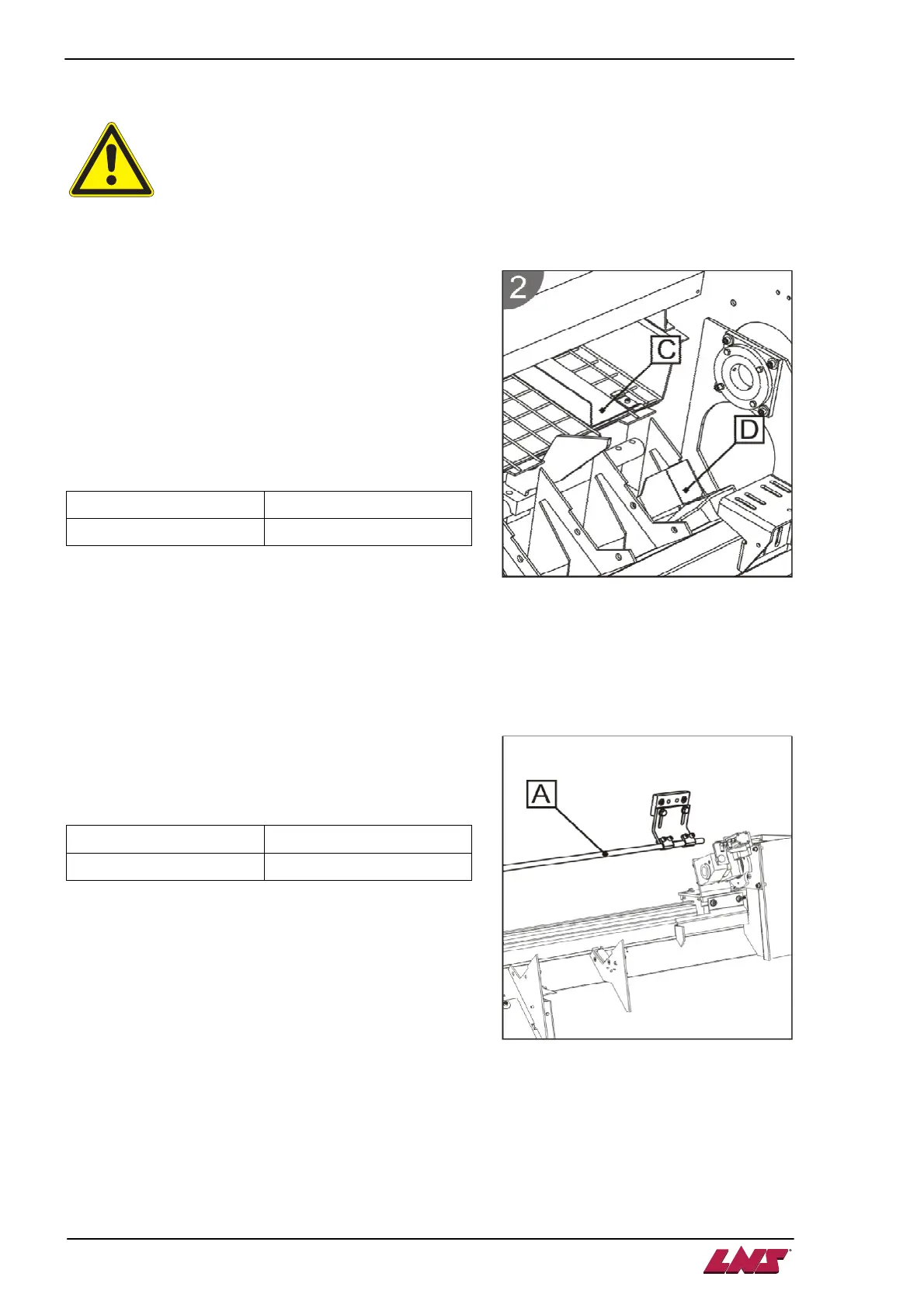

8.1. Kit for square stock
The use of an adaptor for square stocks is required in order
to orientate the square stock from the 120° V-channel into
the spindle centre.
This kit includes:
- Steel angle support 120° to 90°
- additional limiter
Depending on the unit configuration, different references are
available :
Unit version Reference no.
Left / Rear loading rack
021.002.163
8.2. Kit for One Shot Shaft loading
Parts of the same length can be loaded with a specially designed pusher (A).
The loading procedure is simplified, and the loading cycle
time can be reduced with specific interface and adaptations.
This kit includes a loading pusher ø12 mm for shaft loading,
adjustable to the part length.
Description Reference no.
One shot shaft loading
021.018.012
