CHAPTER 6: GENERAL DESCRIPTION 6-17
QUICK LOAD SERVO III MI

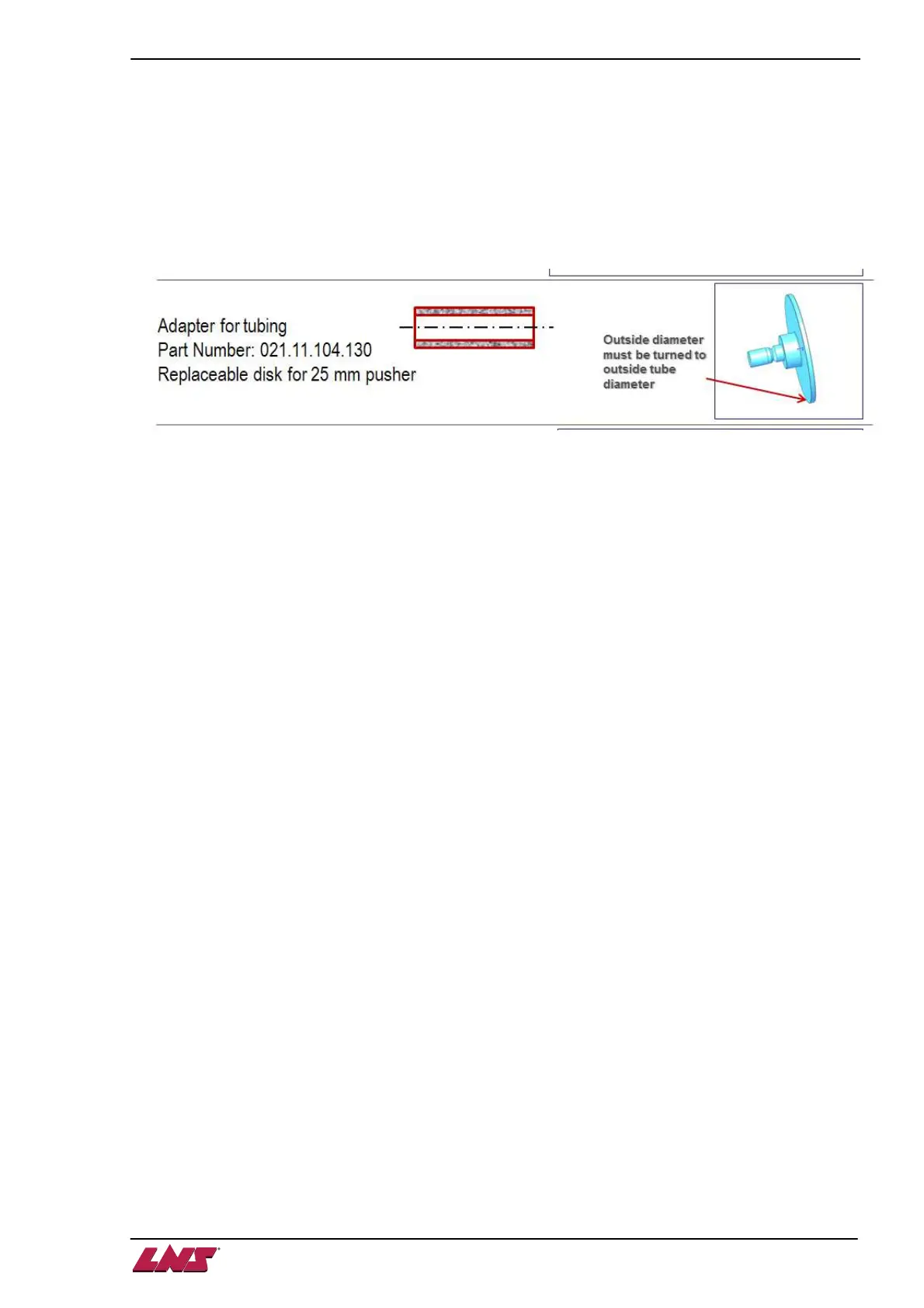

8.3. Loading of tubes
When bar stocks to be loaded are tubes, an adapter is necessary to create a flat contact surface between
the tube and the pusher.
The adapter must be adapted to the outside diameter of the tube (by turning the outside diameter of the
adapter), and then be mounted on the tip of the 25 mm pusher.
