5-2 CHAPTER 5: PNEUMATICS
QUICK LOAD SERVO III MI
1. PNEUMATICAL EQUIPMENT
Please read the safety instructions provided at the beginning of this manual before
handling the following devices.
1.1. Description
The following automatic movements of the bar feed system are done via pneumatic elements, namely:
• Bar stock loading into the loading table
• Pusher locking system
• Loading table moving / down
To guarantee an optimal operation of the bar feed system, a minimum pressure of 5 bars (75 PSI), and a
maximum pressure of 6 bars (90 PSI) is mandatory.

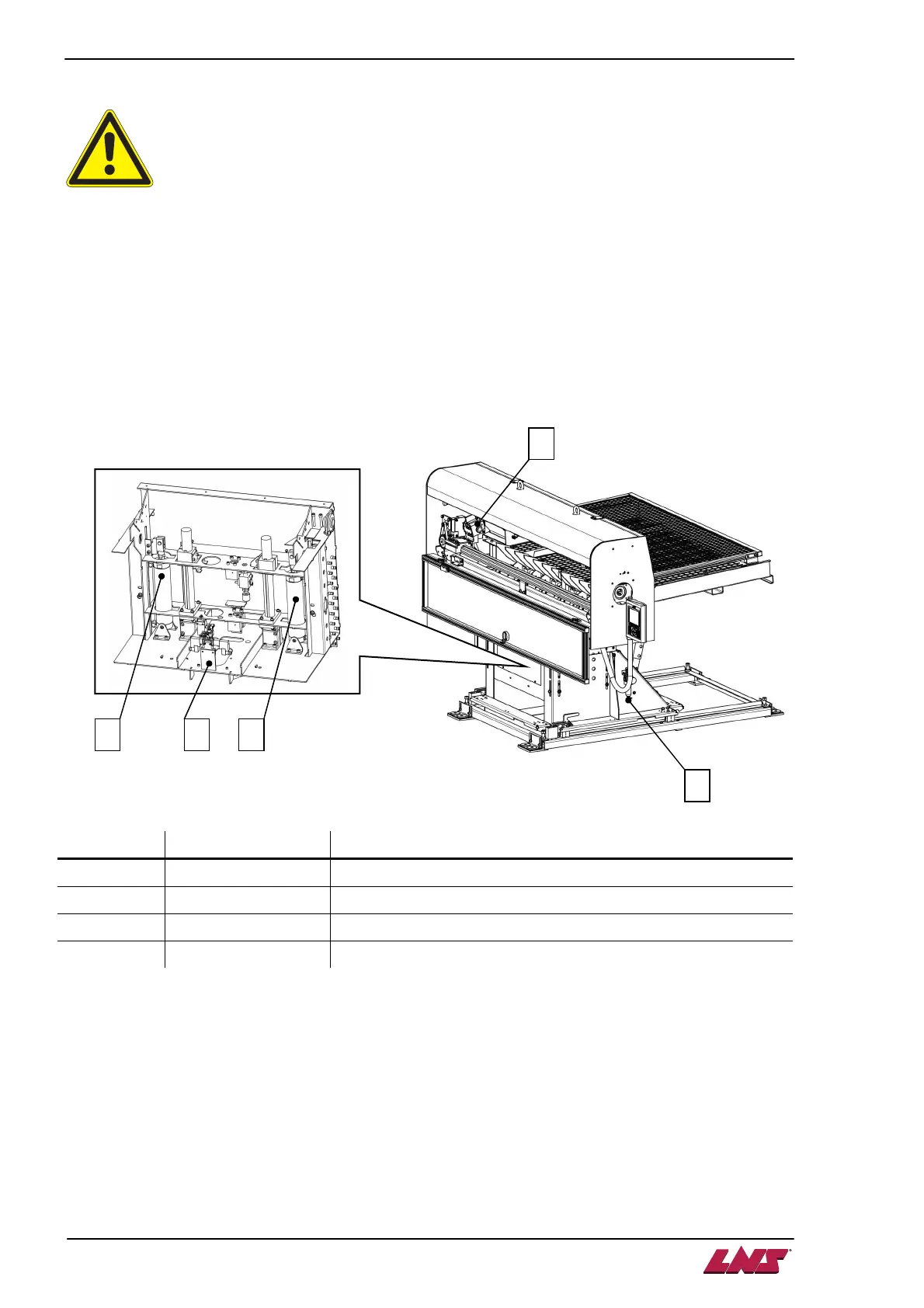

1.2. Layout of the pneumatic elements
Designation Reference no. Description
A 3.636/3.638 Air filtering unit
B 3.407 Cylinder for feeding pusher locking mechanism
C 3.95020.A.30 Cylinder for loading channel up/down motion
D 3.656 Pneumatic valve battery
