CHAPTER 3: SETTING INTO OPERATION 3-3
QUICK LOAD SERVO III MI

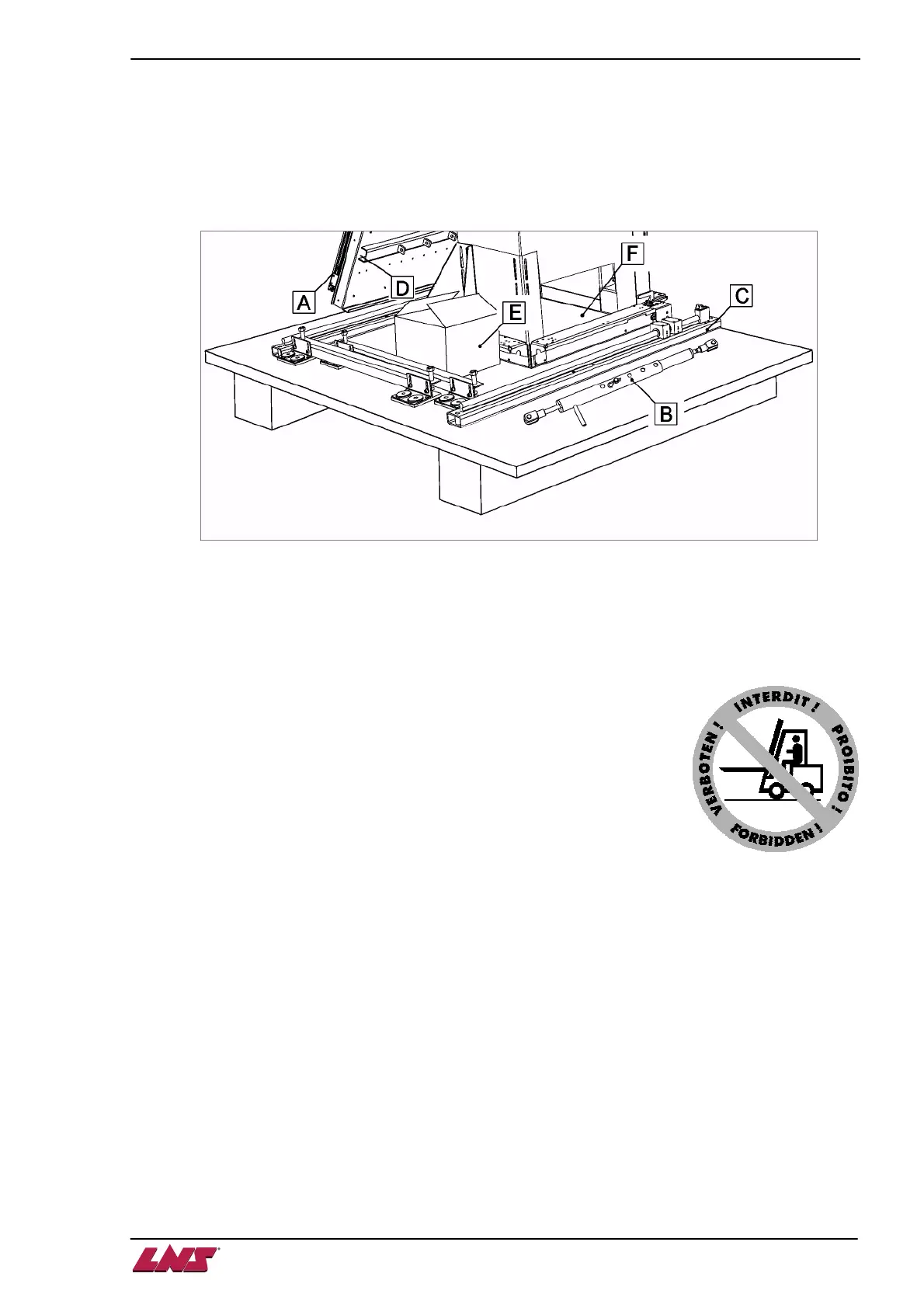

The Quick Load Servo bar feed system is always delivered as follows :
• Magazine (A) is assembled on the bar feed system, but the two support axles (B) are bolted on
the pallet. The outer side of the magazine rests on the pallet.
• The retraction mechanism (C) is supplied partly assembled, but is not mounted onto the bar feed
system.
• A feeding pusher is supplied mounted on. The additional pushers, are affixed under the loading
table (D).
• The notice instruction and the accessories are delivered in a separate package (E).
• The bar feed system is held on the pallet by bolts and nuts (F).
Take out the parts, and place them in an easily accessible area for mounting
the bar feed system.
