3-10 CHAPTER 3: SETTING INTO OPERATION
QUICK LOAD SERVO III MI

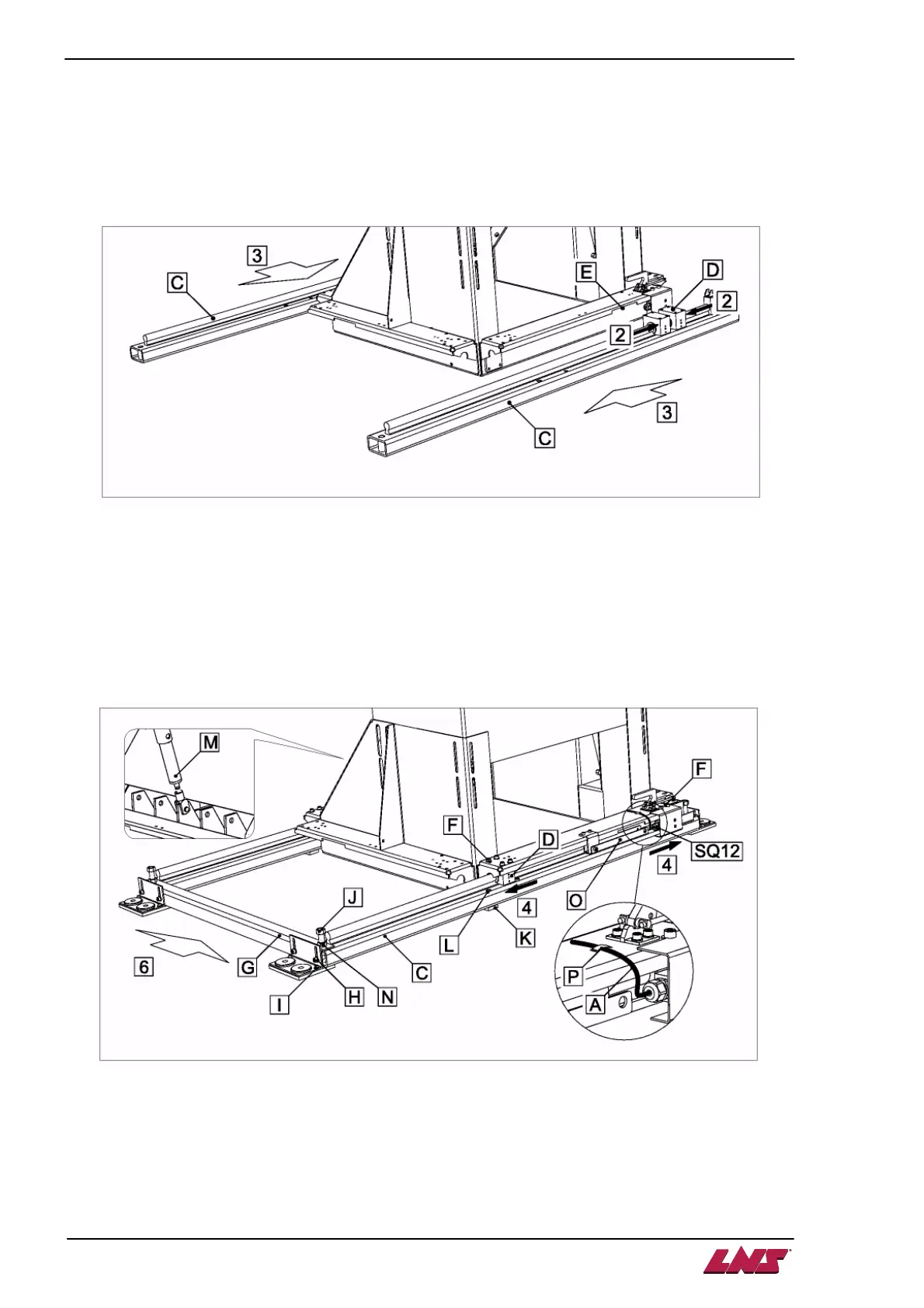

Installing the retraction mechanism longitudinally:
1. Bring the rails on their correct side.
2. Put the sliding bearings (D) in front of the opening (E).
3. Push the rails (C) under the unit.
4. Spread the sliding bearings to face the fixing holes.
5. Put the fixing screws (F) in the bearings (D) without tightening.
6. Install the cross girders (G) against the rails (C).
7. Loose the fixing screws (H) and (I) (16 in all) on each anchoring square.
8. Install the four levelling screws (J) to guarantee the parallel of the rails.
