3-12 CHAPTER 3: SETTING INTO OPERATION
QUICK LOAD SERVO III MI

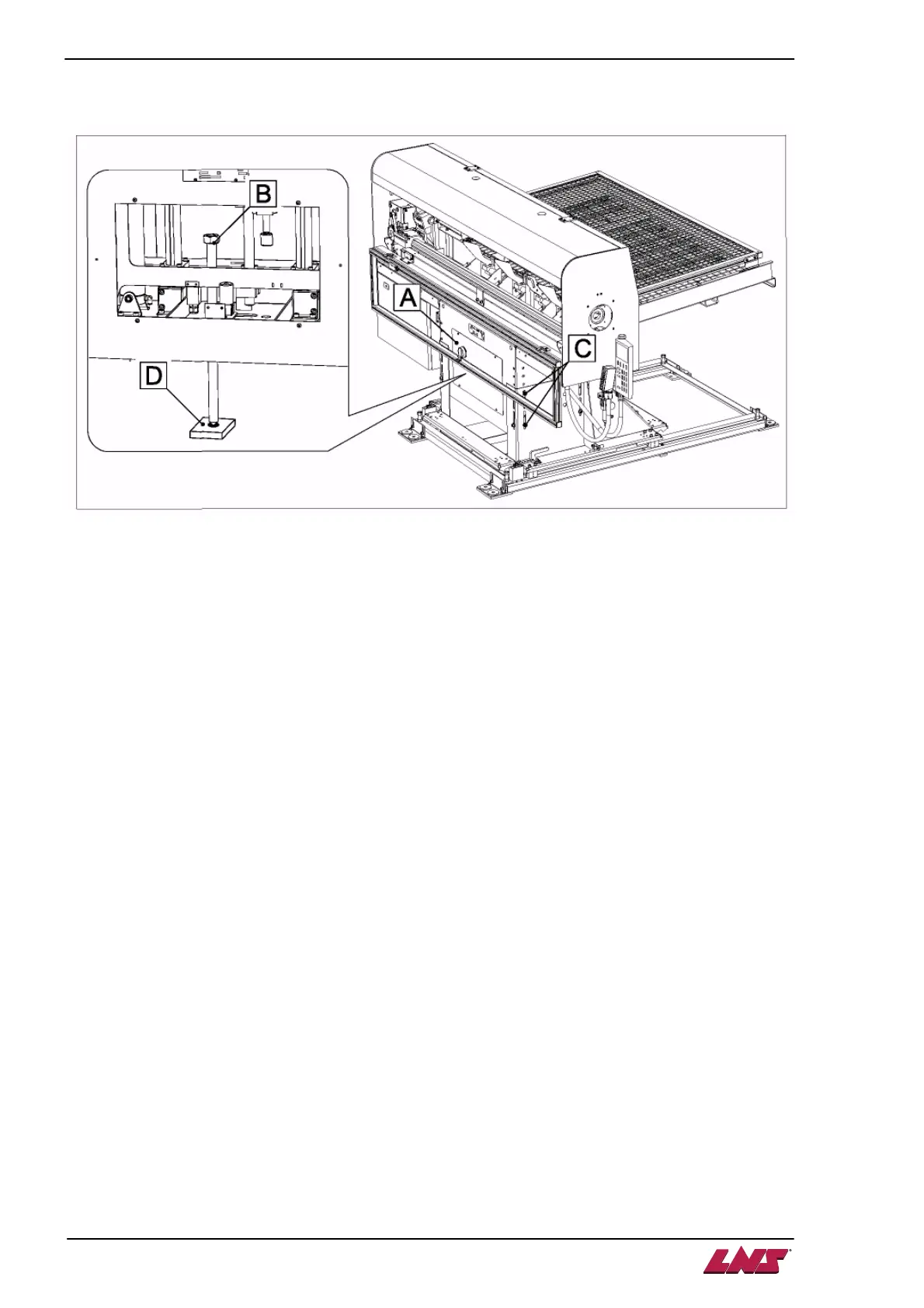

2.4. Adjusting the table height
• Remove front cover (A).
• Check that the central screw (B) rests on the plate (D).
• Carefully loosen the 16 screws (C).
• Adjust the height of the bar feed system by tightening or loosening the central screw (B).
• A hexagonal tube, delivered with the system, allows access to the adjusting screw from the top,
through the loading table.
• When the correct height is reached, tighten the screws (C) and proceed with the alignment of the
bar feed system.
• Remount the plate (A).
