3-14 CHAPTER 3: SETTING INTO OPERATION
QUICK LOAD SERVO III MI
2.6. Anchoring to the ground

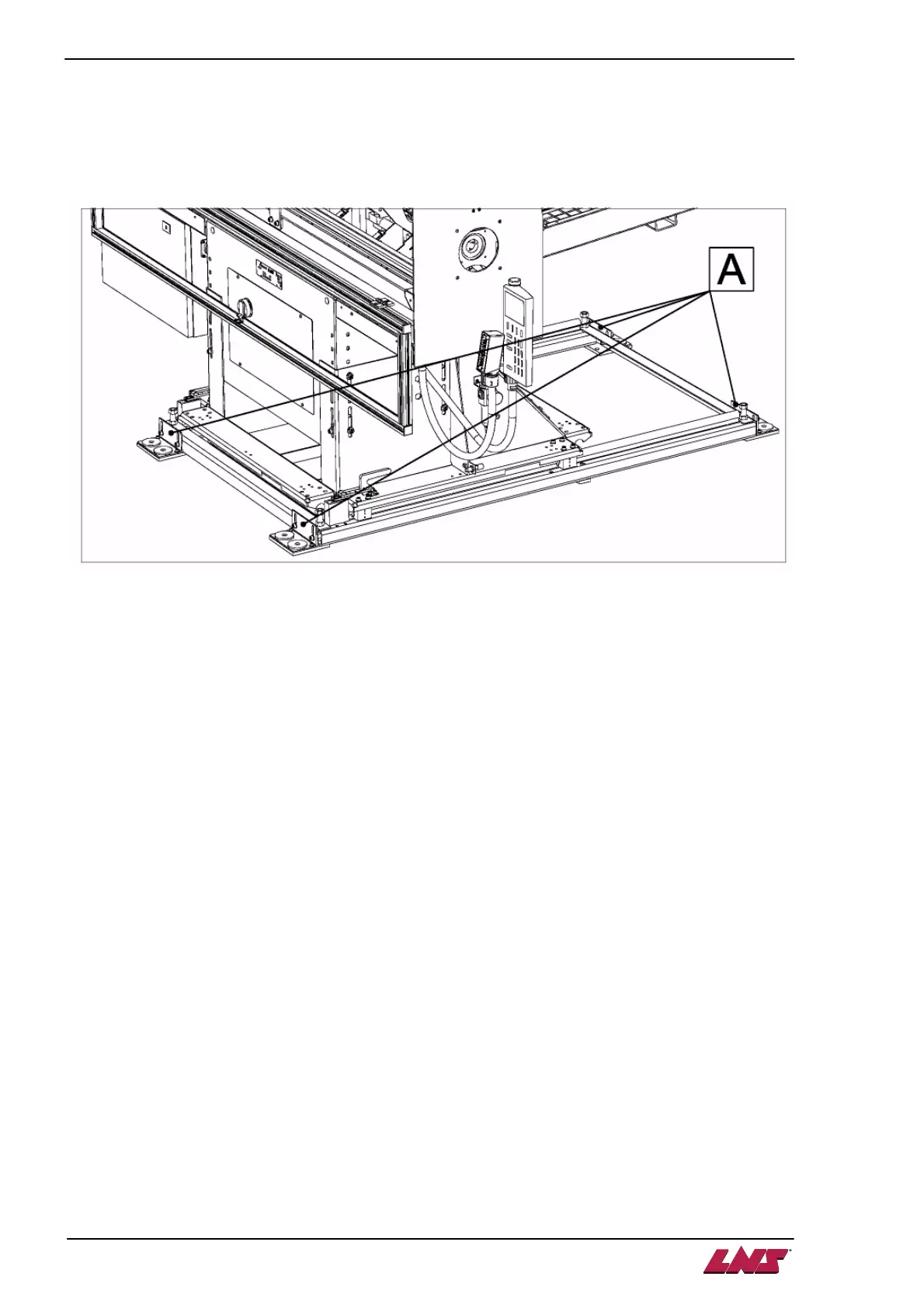

Once the bar feed system is in place, and perfectly aligned, it should be anchored to the ground to make
it stable. To accomplish this, 4 x 2 anchorage points (A) have been provided.
8 anchorage bolts (B) must be furnished by the client (Minimum M 10 x 100 mm) (Minimum 1/2" x 4").
Once the anchoring bolts are tightened, check the alignment again, and correct it if necessary.
