CHAPTER 4: ELECTRICS 4-3
QUICK LOAD SERVO III MI

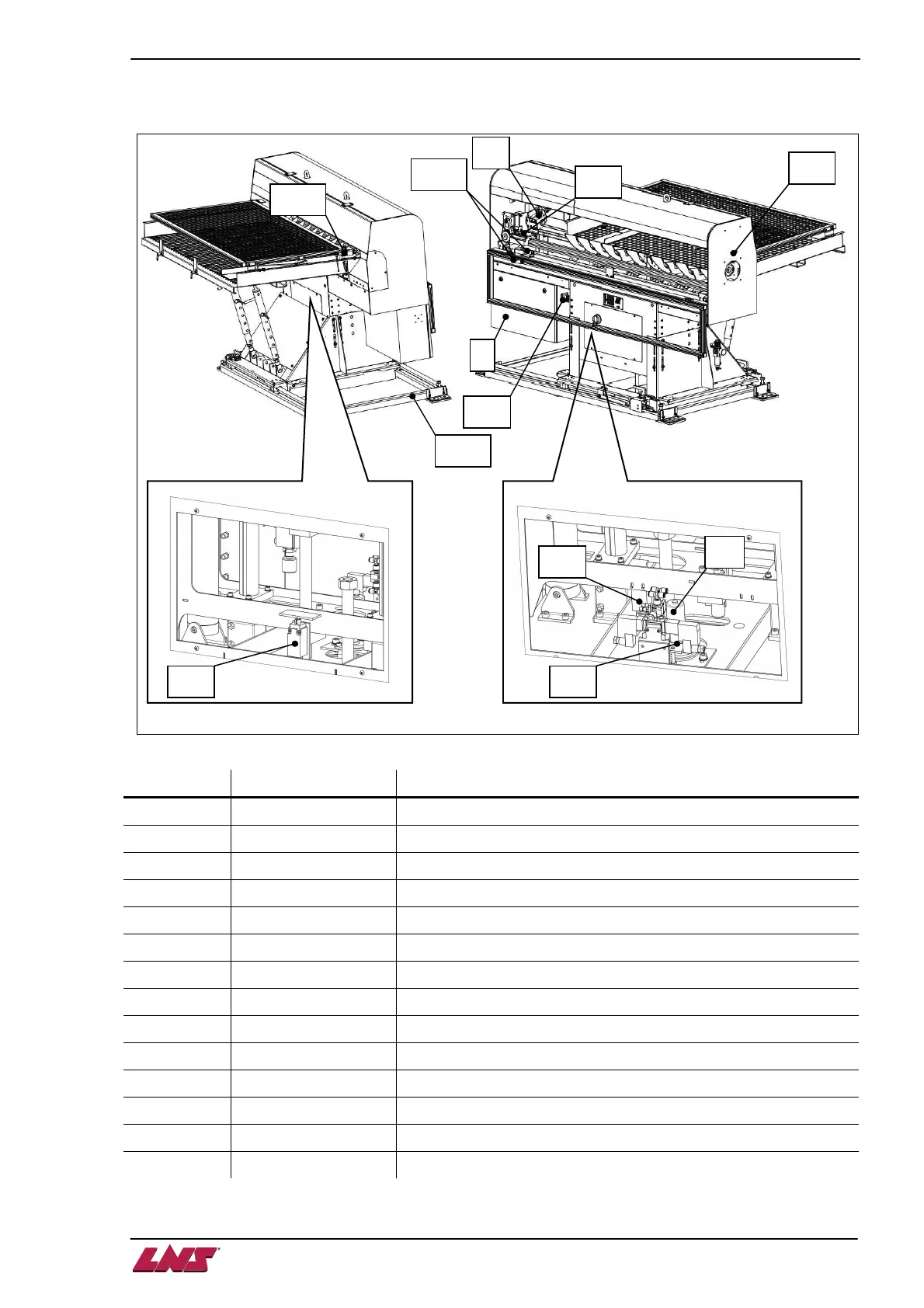

1.2. Layout of the electrical elements on the bar feed system
Designation Reference no. Description
A 4.972 Remote control (not shown here)
B 4.068/4.074 24 pin connector with cover (not shown here)
C - Control cabinet
QS1 4.242 Main disconnect switch
M1 4.569 Servo motor
M2 4.307 Motor for diameter adjustment
SQ1 4.484 Loading table in lower position
SQ2 4.484 Loading table in upper position
SQ3 44.0072 Measuring cell
SQ4 4.391 Proximity switch for diameter adjustment
SQ5 4.391 Proximity switch for pusher in home position
SQ10 4.284 Main access cover safety switch
SQ11 4.277 Magazine grid cover safety switch
SQ12 4.291/4.292 Retraction system in position switch (incl. key)
