5-4 CHAPTER 5: PNEUMATICS
QUICK LOAD SERVO III MI
2.4. Settings

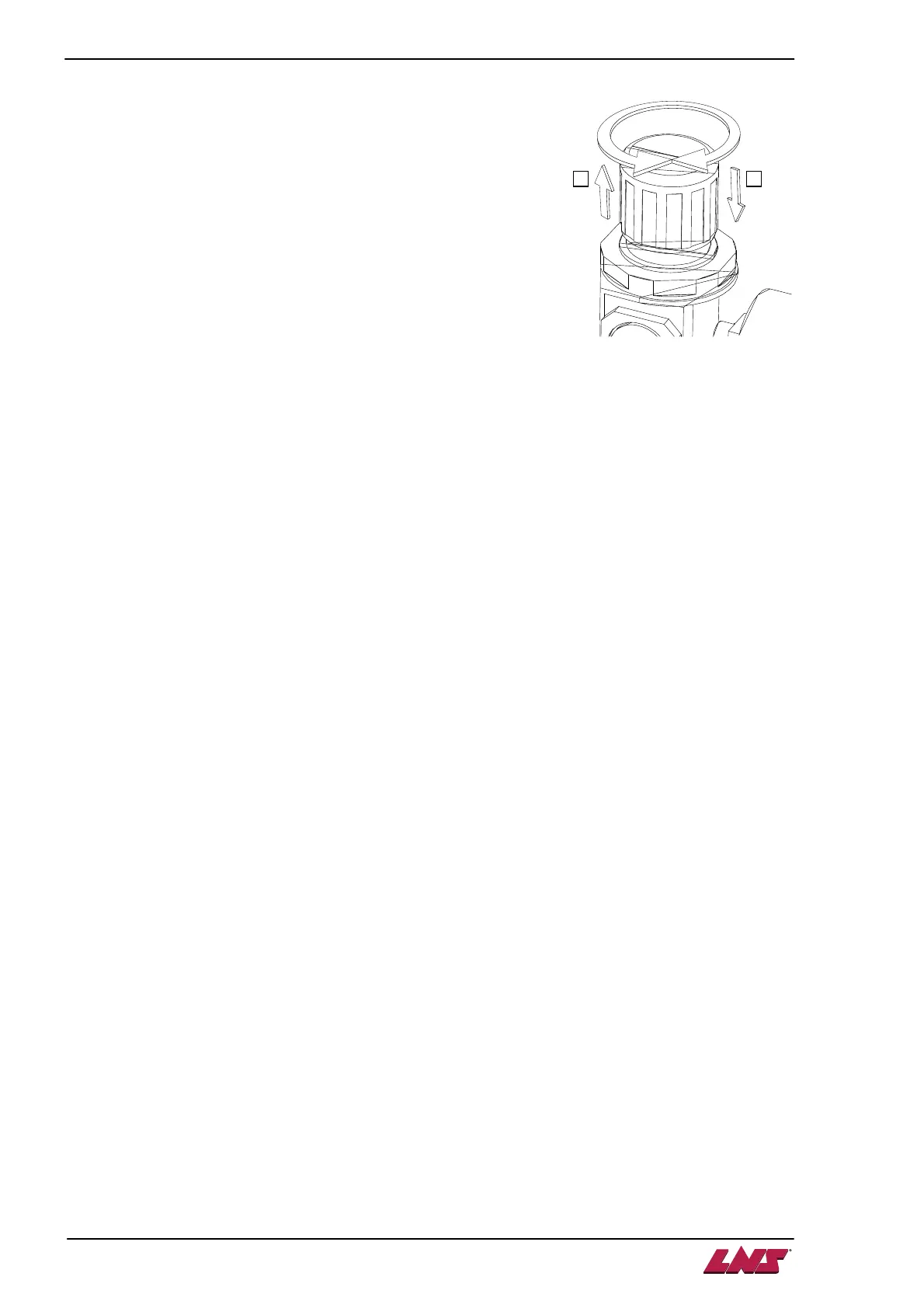

1. Unlock the adjusting knob by pulling it upward.
To increase the pressure, turn it clockwise. To decrease it, turn
it in the opposite direction. The operational pressure should be
set at 5 bar.
2. When the settings are done, lock the adjuster by pushing it
downward.
