CHAPTER 6: GENERAL DESCRIPTION 6-3
QUICK LOAD SERVO III MI

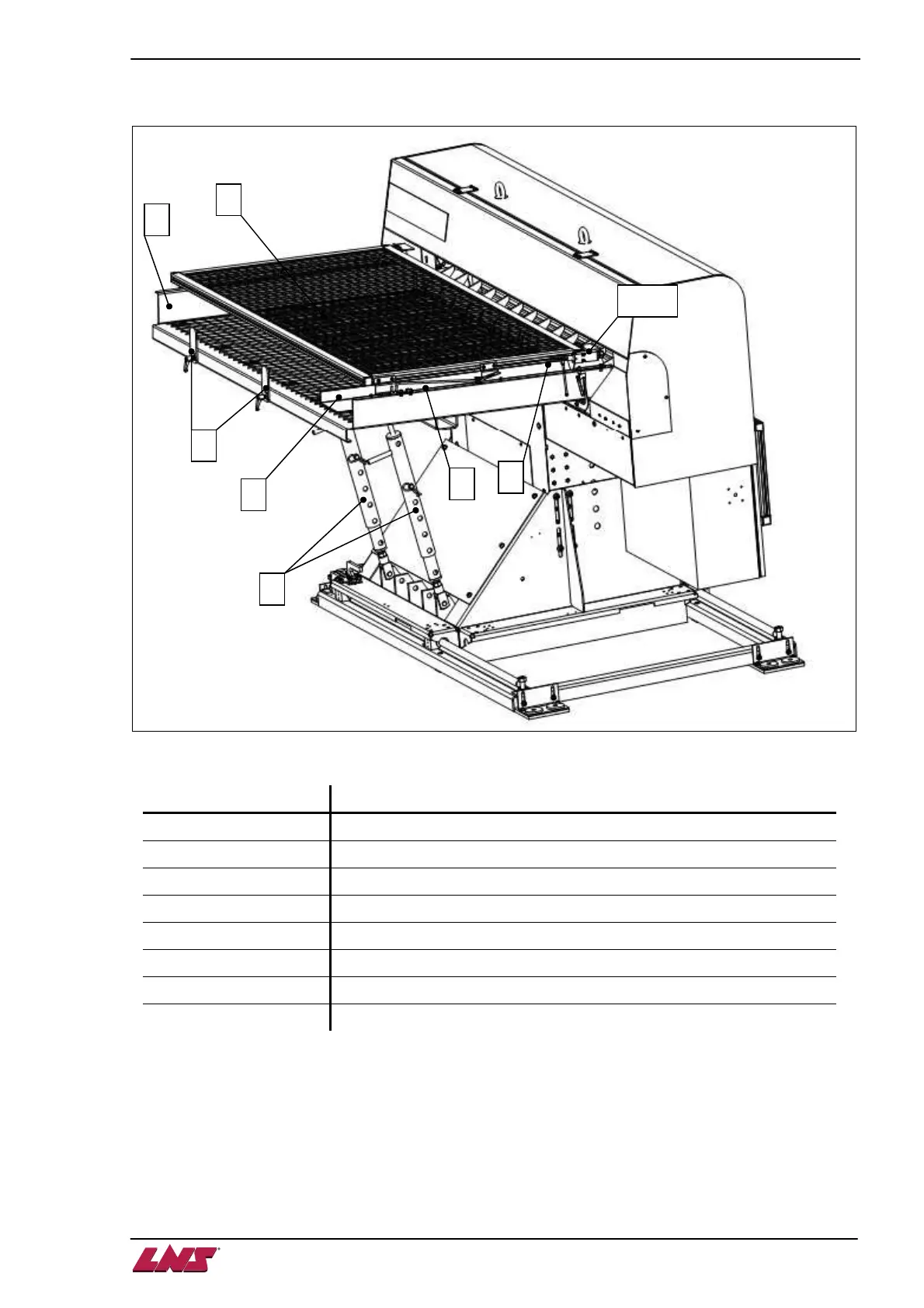

1.2. Layout of the elements
Designation Description
A Magazine table
B Protection grid
C Rear limiter
D Slope inclination adjusting axle
E Fingers for bar selection
F Holding rod
G Bar safety stopper
SQ11 Grid closed safety switch
