CHAPTER 7: OPERATION 7-15
QUICK LOAD SERVO III MI

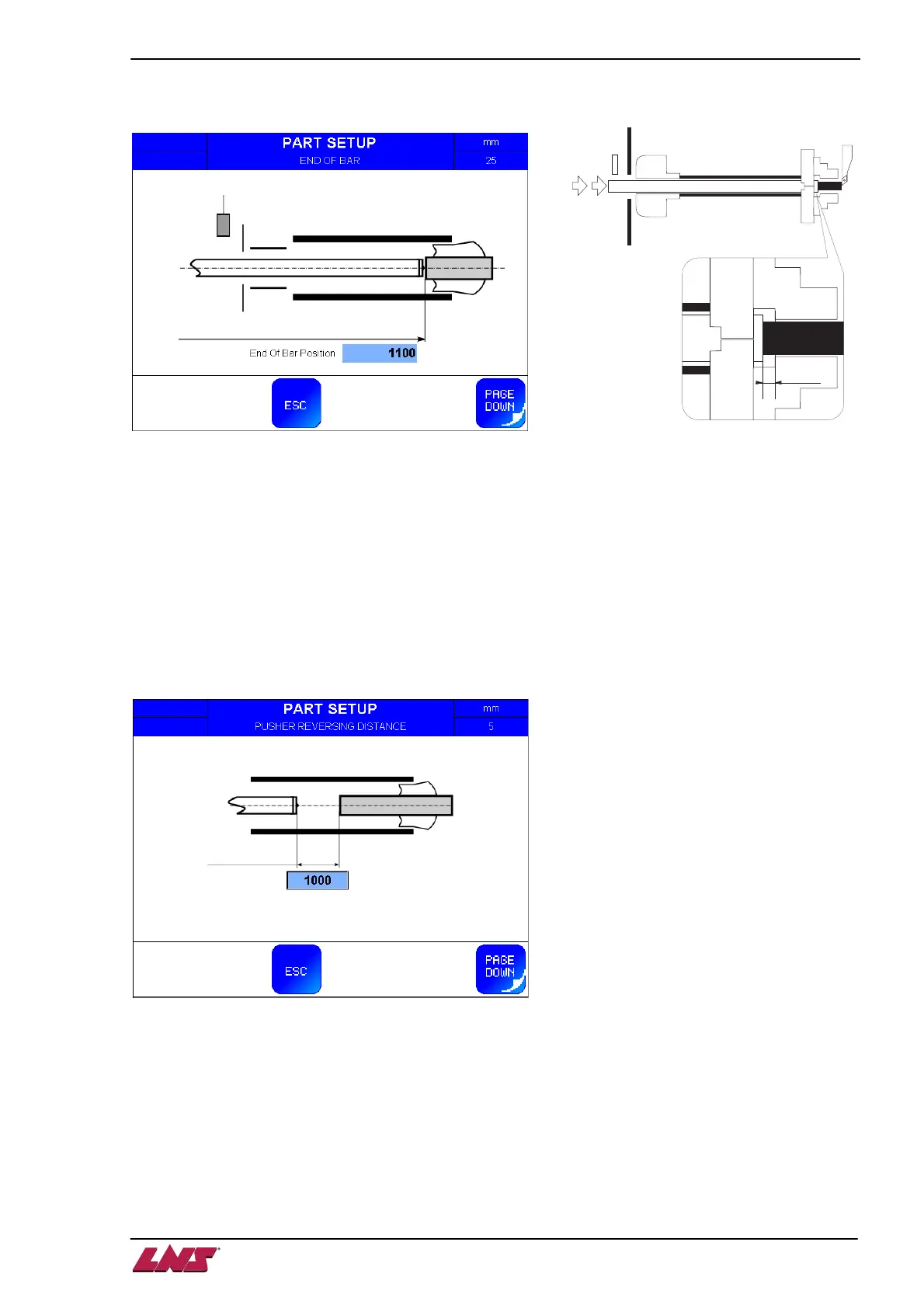

End Of Bar (may be not visible)
The end of bar position determines the moment when the bar feed enters the loading cycle.
Usually, the end of bar position is adjusted as closely as possible behind the clamping system of the lathe
(approximately 5 mm or a 1/4" behind the chuck jaws or collet pads).This will provide minimum bar stock
remnant.
Regardless of the length of the bars, or parts, the end of bar position is always the same. In very special
cases, a different end of bar setting needs to be selected.
More information the section 6. END OF BAR of this chapter.
Pusher reversing distance
This parameter allows to define the clearance between the bar stock and the pusher after the part feed
out, when the clamping device closes and the bar is rotating again. This value should be set so that the
pusher never touches any rotating part (bar or spindle, or spindle liner).
