4.2.5. Miscellaneous functions

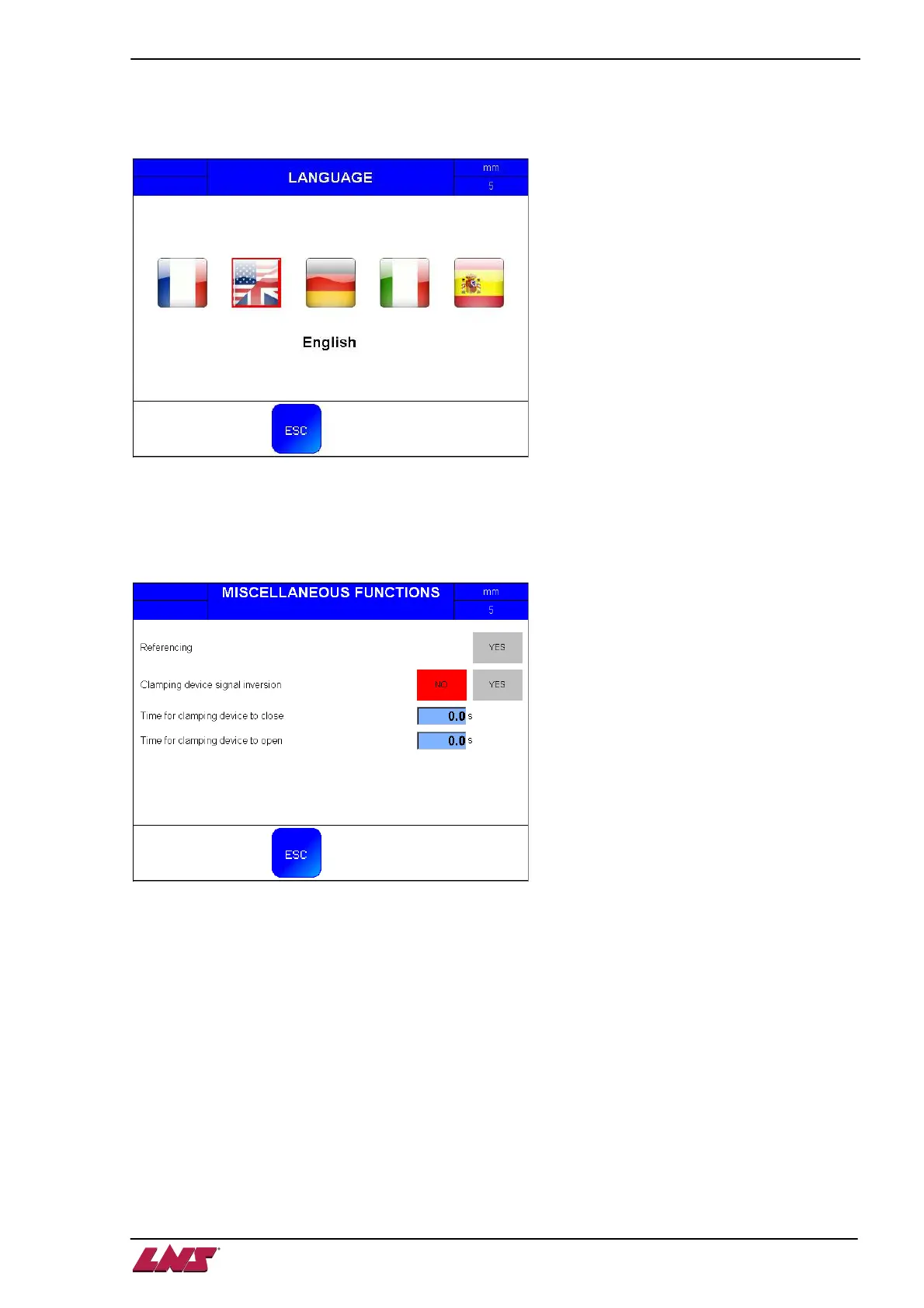

Language
This parameter allows to adapt the language in which the messages will appear, depending on the
country of destination of the bar feed system (for practical reason, it is not necessary to stop the bar
feeder to select a language).
Miscellaneous functions
Referencing
This operation allows the bar feed system to find the original position of the servo motor and the
parameters when and if these have been lost.
Clamping device signal inversion (may be not visible)
The interface signal is reversed depending on whether the clamping device functions by pushing or by
pulling. It is therefore essential to know the operation of the clamping device, without this, the feeding
process cannot be done correctly.
Time for clamping device to close (may be not visible)
This is the time it takes for the clamping device to be physically closed. The majority of CNC lathes are
equipped with confirmation switches to provide this signal. The time is set at a default value of zero
seconds.
Time for clamping device to open (may be not visible)
In the case of a clamping device with jaws, sometime may be provided to prevent any movement before
the clamping device is completely open.
