4.3 Replacing varioDrawer

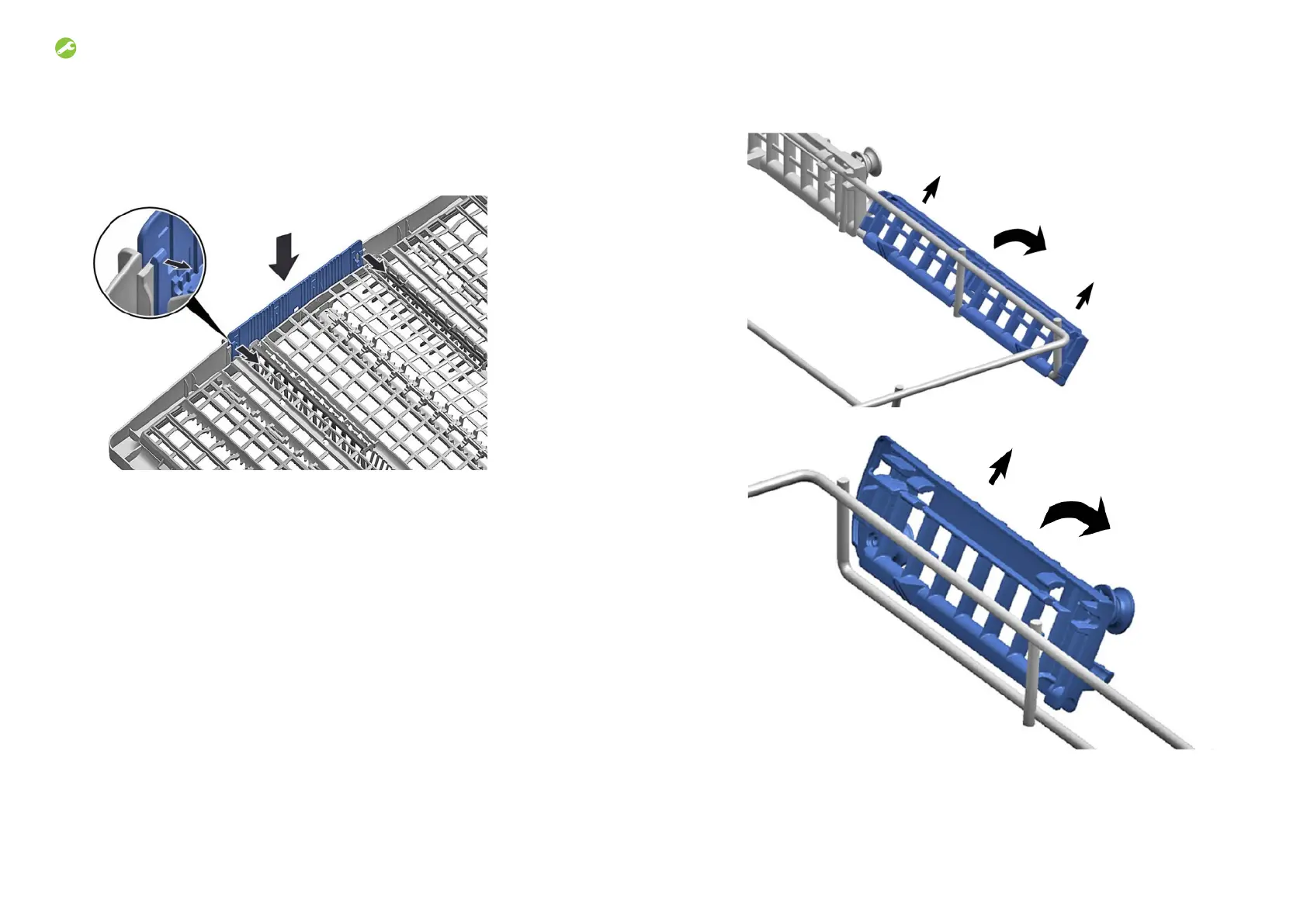

4.3.1 Removing varioDrawer
1. Bend the handle flaps inwards.
2. Remove the handle upwards.
3. Press plastic side inserts outwards and press them upwards out of the frame.
