4.

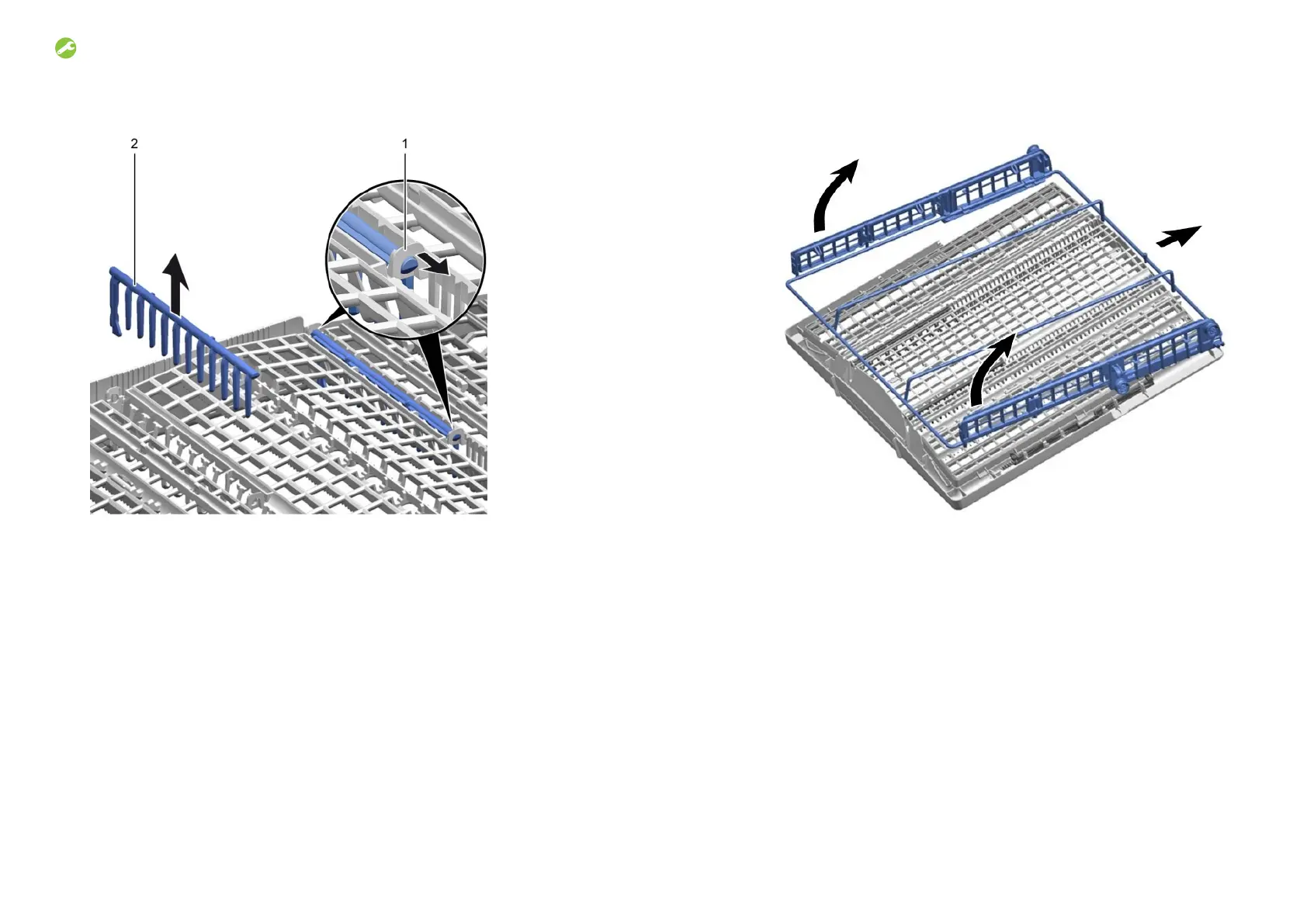

Carefully bend the guide tabs outwards.
5.
Pull the folding spines out of the tabs.
6.
Press metal frame at the front out of the holders.
7.
Push metal frame back out of the guide.
4.3.2
Installing varioDrawer
▶
Install in reverse order.
Repair
12
14
Table of Contents
en
3
Concerning this document
5
Important information
5
Purpose
5
Explanation of symbols
5
Danger levels
5
Hazard symbols
5
Structure of the warnings
6
General symbols
6
Safety
7
General Safety instructions
7
All domestic appliances
7
Tools and aids
8
Repair
9
Replacing worktop
9
Removing worktop
9
Installing worktop
9
Installing basket system
10
Installing a tab slide for the 86 cm model
10
Installing cup support clip
10
Installing steamer insert
11
Replacing varioDrawer
12
Removing varioDrawer
12
Installing varioDrawer
13
Replacing spray arms
14
Removing spray arm
14
Installing spray arm
14
Replacing filters
15
Removing filter
15
Installing filters
15
Installing baking sheet spray head
16
Replacing power cord
17
Unplugging power cord
17
Plugging in power cord
17
Replacing detergent cover
18
Removing detergent cover
18
Inserting spring
18
Installing detergent cover
18
Replacing wastewater pump cover
19
Removing wastewater pump cover
19
Installing wastewater pump cover
19
Replacing side panel
20
Removing side panel
20
Installing side panel
21
Replacing outer door
22
Removing outer door
22
Installing outer door
22
Replacing control panel
24
Removing control panel
24
Installing control panel
24
Fix door springs
25
Replacing toe panel
27
Removing toe panel
27
Installing toe panel
27
Replacing base socket plate
28
Removing base socket plate
28
Installing base socket plate
28
Replacing overflow conduit
29
Removing overflow channel
29
Installing overflow conduit
30
Replacing inner door
32
Removing inner door
32
Installing inner door
32
Replacing door hinge
33
Removing door hinge
33
Installing door hinge
33
Replacing (lower) door seal
35
Removing the door seal
35
Installing the door seal
36
Replacing (upper) door seal
37
Removing door seal
37
Installing door seal
37
Replacing EmotionLight
38
Removing EmotionLight
38
Installing EmotionLight
38
Replacing TimeLight
41
Removing TimeLight
41
Installing TimeLight
41
Replacing Gap illumination
42
Removing Gap illumination
42
Installing Gap illumination
43
