4.12 Replacing control panel
If an operating module is defective, the entire control panel must be re-
placed.
Prerequisite:
Appliance is disconnected from power supply.
Appliance is disconnected from water supply.
Outer door has been removed.
Outer door has been removed (fully integrated/integrated).
4.12.1 Removing control panel

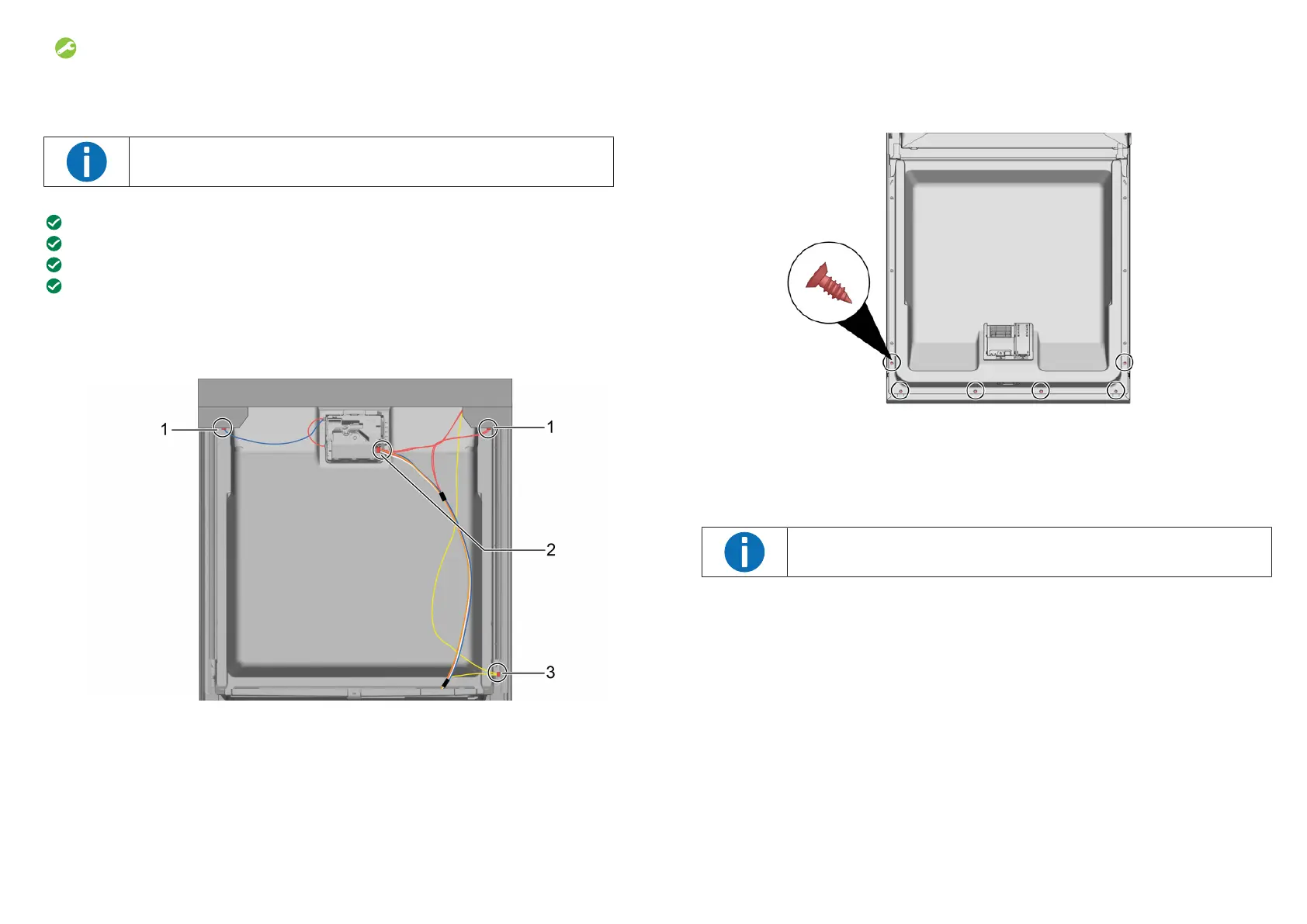

1. Disconnect electrical connections from the control panel and the low rinse-aid
sensor (1, 2).
2. Disconnect the earth cable (3) (optional).
3. Open the appliance door.
4. Secure the control panel to prevent it from falling down (hold on to it).
5. Remove six screws.
6. Remove the control panel.
4.12.2 Installing control panel
Use screws 4 x 16 mm.
▶
Install in reverse order.
