Using the Main Menu14

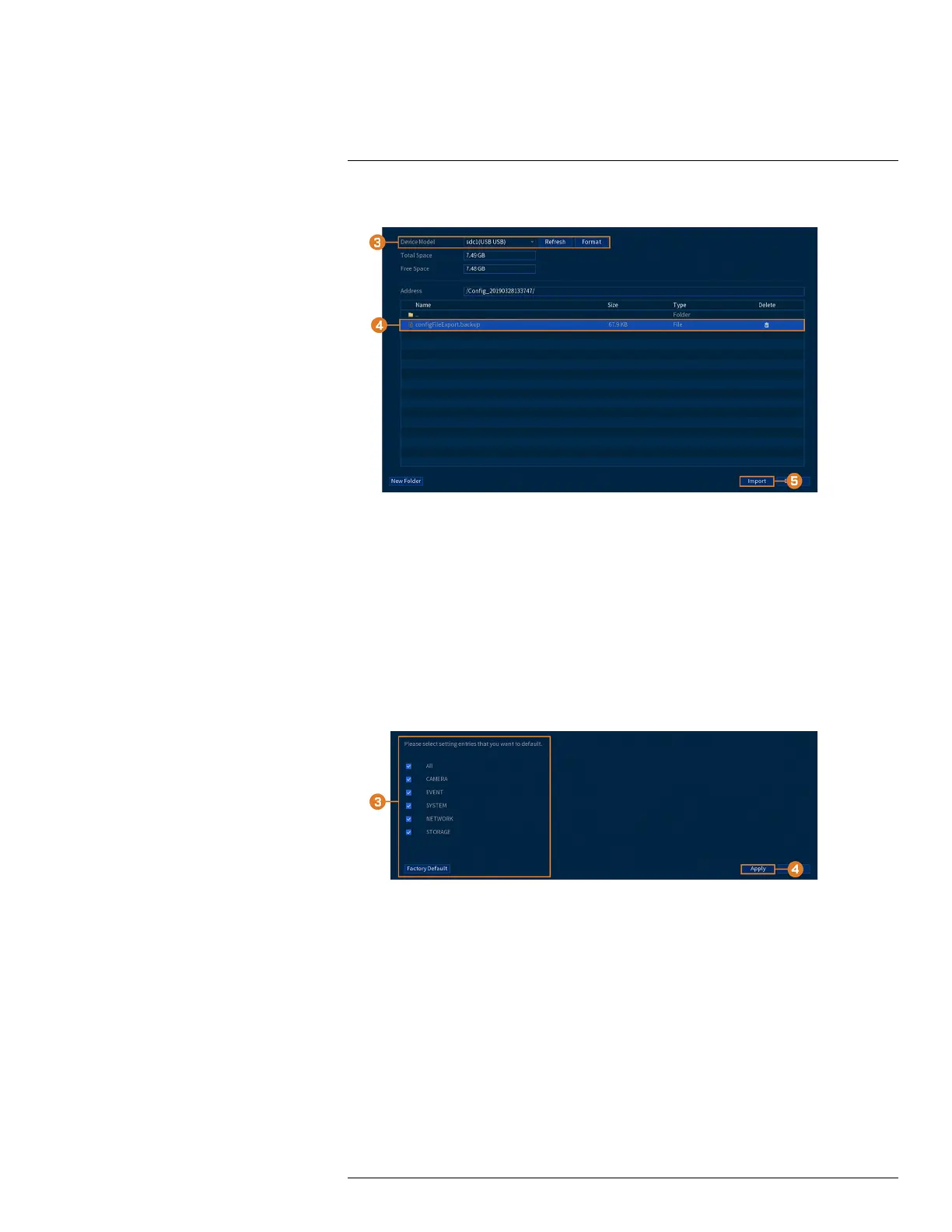

2. Click SYSTEM, then click the CONFIG BACKUP tab.
3. Under Device Model, select the USB device where a system configuration has been saved.
4. Click the folder with the configuration files you would like to restore. Configuration file fold-
ers are labeled Config and then the time and date the configuration was saved (e.g., Config_
20140425103727).
5. Click Import to save your current system configuration.
14.7.7 Restoring Default Settings
Reset the system to default settings.
To restore default settings:
1. From the Live View display, right-click to open the Quick Menu, then click Main Menu.
2. Click SYSTEM, then click the DEFAULT tab.
3. Check boxes for menus you would like to be reset to default settings, or click Factory Default
to reset the unit to its out-of-box state.
4. Click Apply. The system will restart automatically. Do not power down the unit or disconnect
the power cable.
14.7.8 Upgrading Firmware Manually
The primary method for upgrading system firmware is automatically over the Internet. The system
also supports firmware upgrades from a USB thumb drive (not included).
Prerequisite:
• Save the .bin firmware file for your unit onto a USB flash drive (not included), and connect the
drive to one of the system’s free USB ports.
#LX400111; r. 1.0/55872/56018; en-US 69
