107

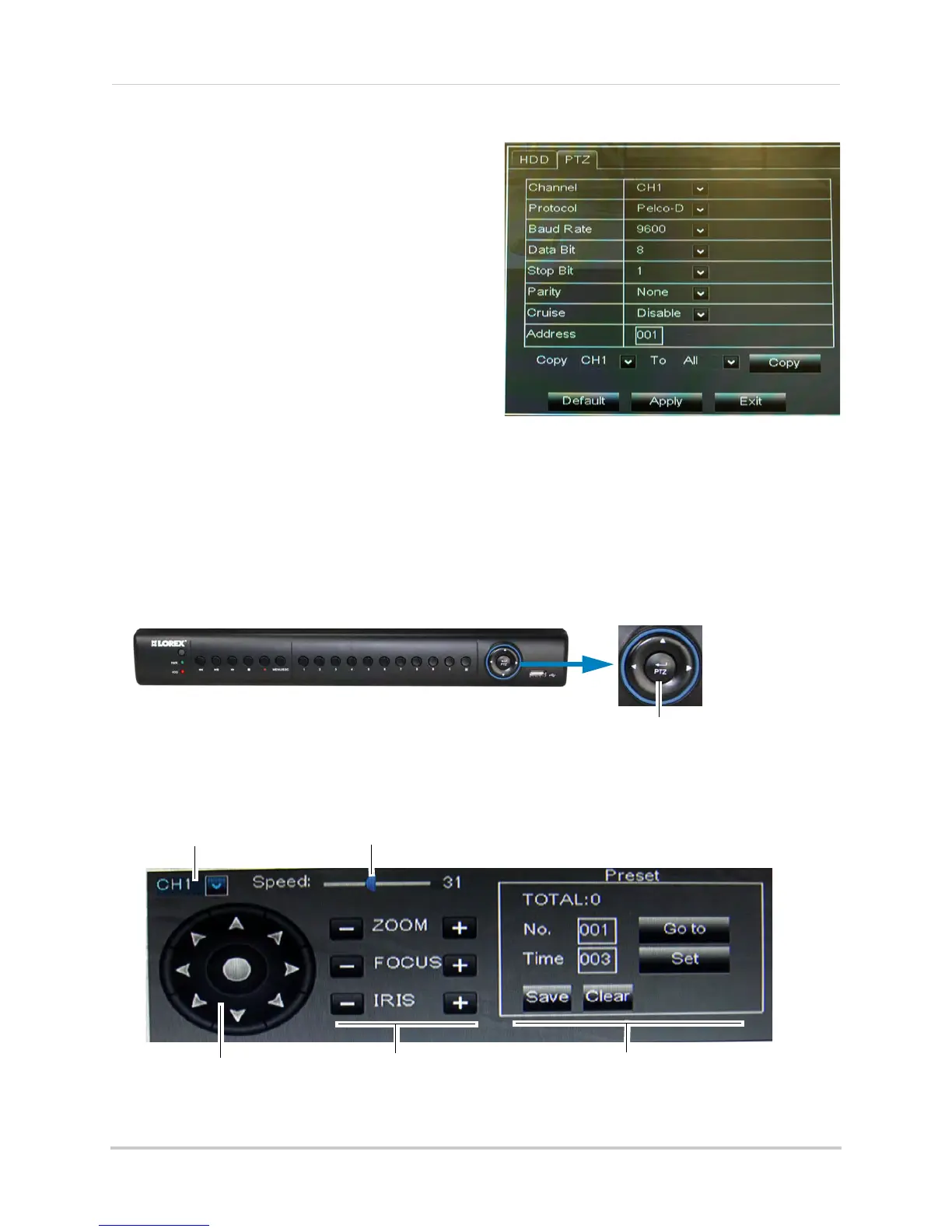

Appendix B: Connecting a PTZ Camera
3 Configure the following according to your PTZ
camera’s specifications:
• Chan
nel: Select the channel the PTZ camera
is connected to.
• Pr
otocol: Select from Pelco-D or Pelco-P.
• Ba
ud rate: Select the PTZ camera’s baud rate.
• Data B
it: Select from 5~8 data bits.
• Stop Bit: Sel
ect from 1 or 2 stop bits.
• Pa
rity: Select from None, Odd, Even, Mark
or Space.
• Cr
uise: Select Enable to enable PTZ cruise.
• Addr
ess: Enter the PTZ camera’s address
Use the Copy To drop-down menu to copy the
PTZ
settings to multiple channels.
4 Cl
ick Apply to save your settings.
Using the PTZ Menu (Local DVR)
To control the PTZ camera locally on your DVR:
1 Sel
ect the channel that the PTZ camera is connected to.
2 Pr
ess and hold the PTZ button on the front panel of the system for 6 seconds. Enter the
system password. The PTZ menu opens.
3 Use
the on-screen PTZ controls to control the camera.
PTZ button
Press and hold for 6 seconds
Channel:
Select the channel the PTZ
camera connects to.
Click the + and - symbols to
adjust the camera Zoom,
Focus and Iris settings
Direction keys:
Click to pan and tilt the camera
Speed Slider:
Increase or decrease the pan and tilt
speed
Camera Pre-set
controls
To Next Page
