Lorex LH156 User Manual

2

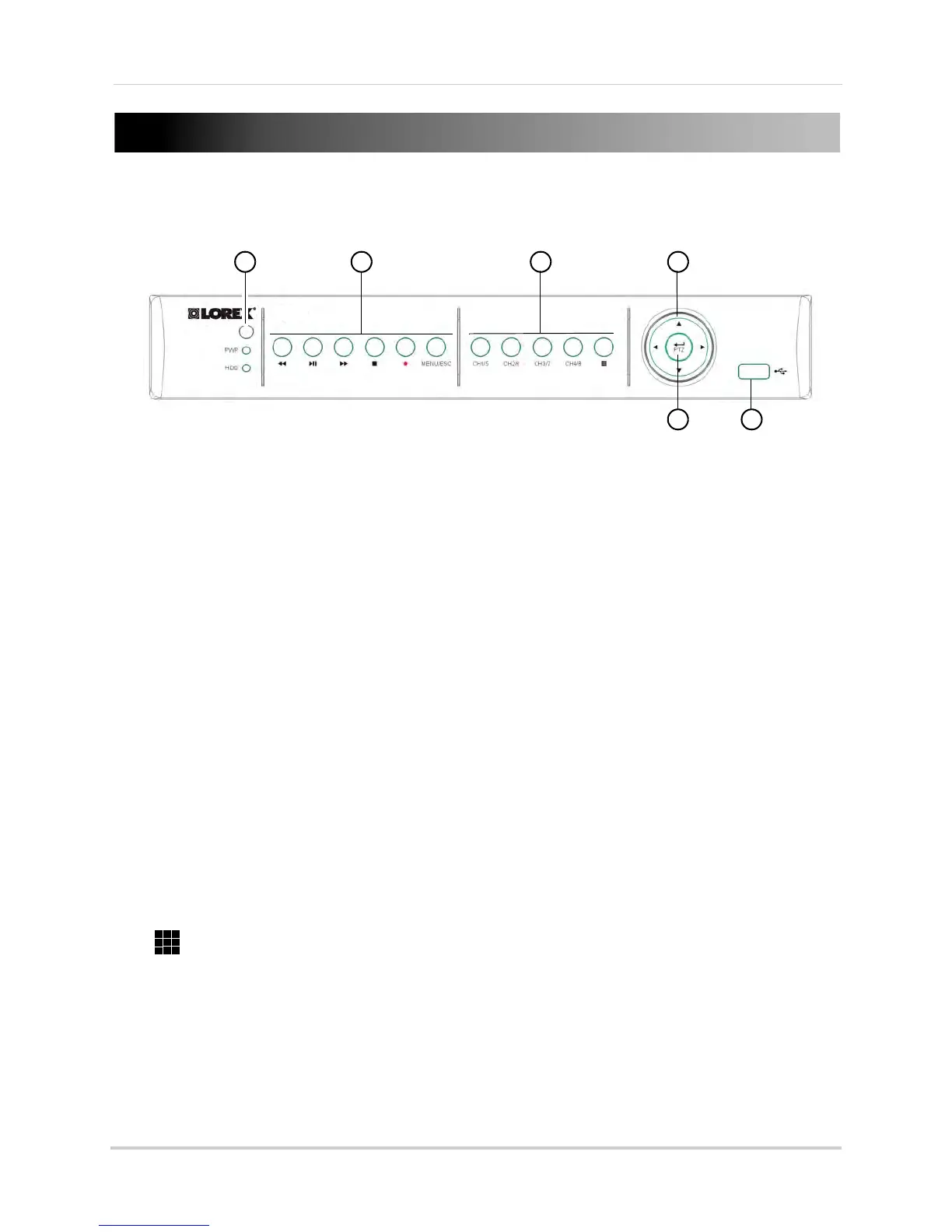

Front Panel
8-Channel
1 IR Sensor: IR receiver for the remote control.
LED Indicators:
• PWR: P
ower LED.
• HDD: Har
d disk activity LED.
2 Menu & Playbac
k Controls:
•
: In Playback Mode, press to rewind. Press repeatedly to increase rewind speed.
•
: In Playback Mode, press to play / pause video.
• In Live Viewing Mode, press to open Search Menu to select playback time.
•
: In Playback Mode, press to fast forward. Press repeatedly to increase fast forward speed.
• : In
Playback Mode, press to stop video playback.
• In Live Viewing Mode, press to stop DVR recording. Password required; does not override
sc
heduled recording.
• Press and hold for 15 seconds to reset the DVR to the default resolution. DVR will reboot.
• :
Press to stop / resume recording. When the channel displays a red box with the letter "C",
the channel is recording.
• Menu / Esc: Open
s the system menu. In menus, press to go back / exit menus.
3 Channel Contr
ols for full screen view:
• CH
1/5: Press to switch between channel 1 or channel 5 in full screen.
• CH
2/6: Press to switch between channel 2 or channel 6 in full screen.
• CH
3/7: Press to switch between channel 3 or channel 7 in full screen.
• CH
4/8: Press to switch between channel 4 or channel 8 in full screen.
• : In Live Viewing Mode, press repeatedly to switch between Split-screen Viewing modes.
4 Navigati
on Buttons:
•
: Press to move cursor up.
•
: Press to move cursor down.
•
: Press to move cursor left.
•
: Press to move cursor right.
3
1 2
4
5 6
