Getting Started (LHV2000 Series)

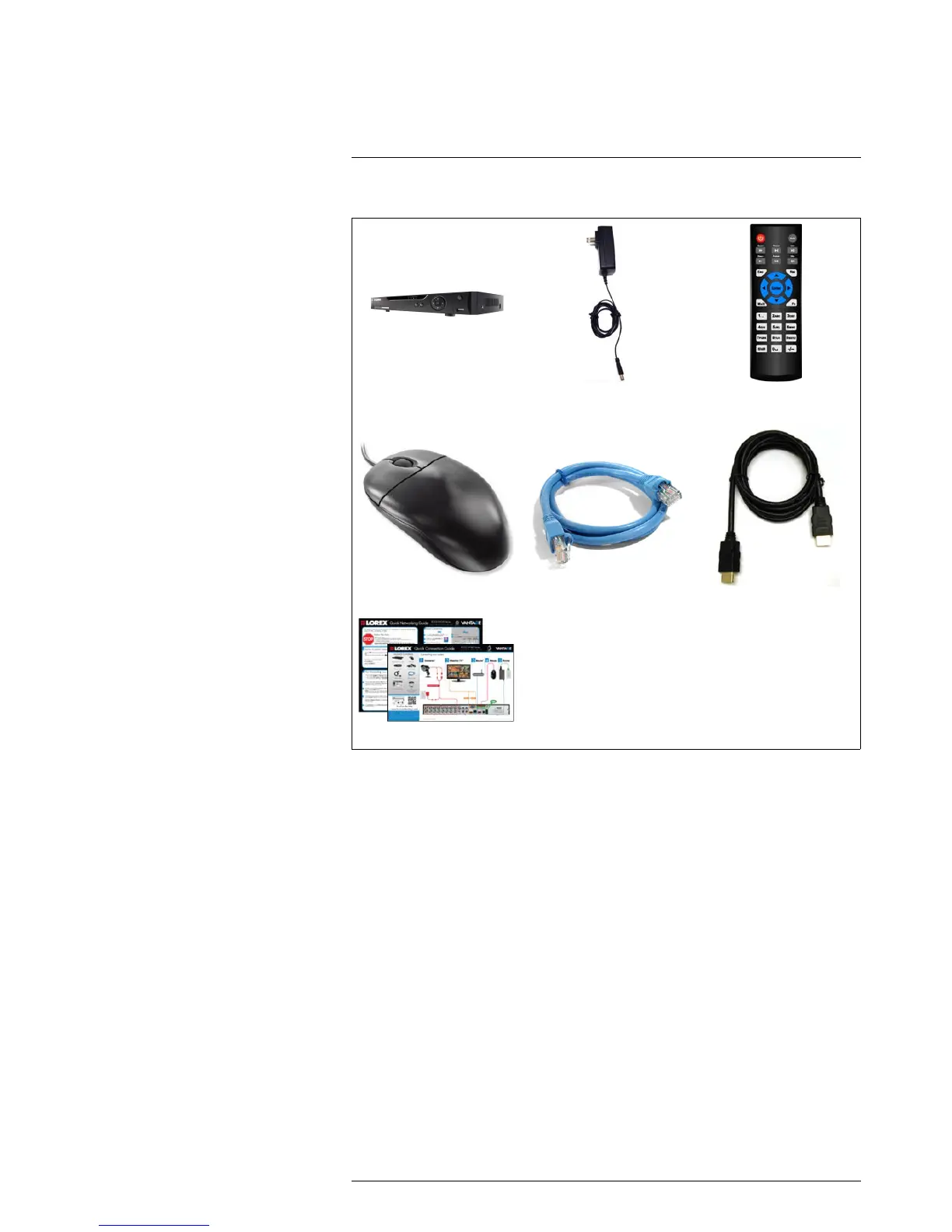

The system comes with the following components:

DVR (Digital Video Recorder) 12V DC power supply

Remote control

(may not be exactly as shown)

USB mouse Ethernet cable HDMI cable

Quick start guides

Hard drive size, number of channels, and camera configuration may vary by model.

Please refer to your package for specific details. Check your package to confirm that you

have received the complete system, including all components shown above.
