LCD Receiver Overview
6

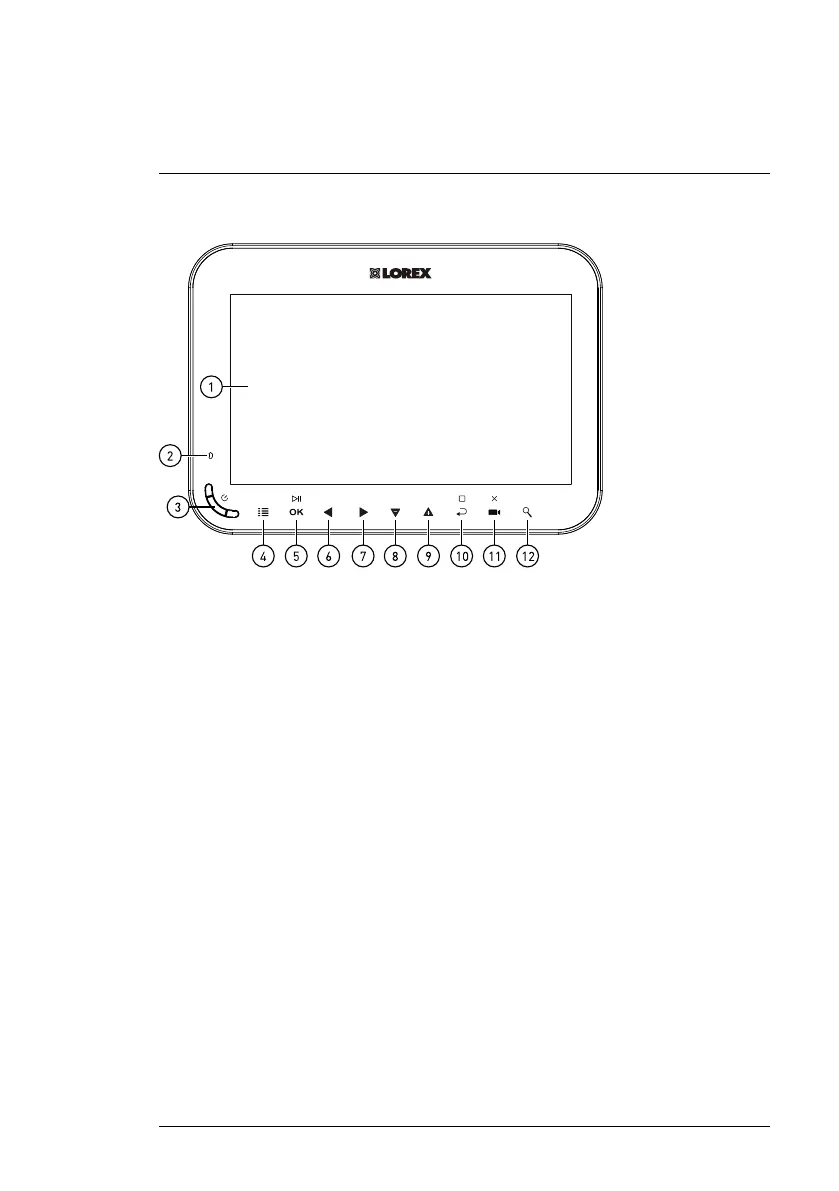

6.1 Front Panel
1. LCD Screen.
2. Indicator LED: Indicates system status in the following ways:
• Solid green: Indicates that battery life is half-full or greater.
• Solid red: Indicates that the receiver is plugged in and turned off.
• Flashing red: Indicates that the battery is low and needs to be con-
nected to power OR, the receiver is plugged in but the battery is not
inserted.
3. Power Button: Press and hold for 2 seconds to turn the receiver on or off.
4. Menu: Press to enter the system menu.
5. Enter / Play / Pause:
• In menus, press to confirm a selection.
• In video playback, press to play / pause video.
6. Left / Rewind:
• In menus, press to move selection to the left.
• In live view, press to switch the viewing mode. For details, see 7.3 View-
ing Modes, page 16.
• In video playback, press and hold to rewind.
#LX400030; r. 2.0/22135/22135; en-US
11
