126
NOTE:
To switch back to the internal GPS antenna, repeat the steps
above. The internal GPS will be automatically enabled when you
turn off (uncheck) the LGC module Set Active box.
Bus Setup
Selecting Bus Setup from the NMEA 2000 menu gives you access to the
Bus Configuration menu and the NMEA Diagnostics and Ethernet Di-
agnostics pages. The Bus Configuration menu allows you to choose an
engine-tank configuration and manage devices on the network. When
the Bus Configuration menu is accessed, a list will appear of all NMEA
2000 devices on the network.

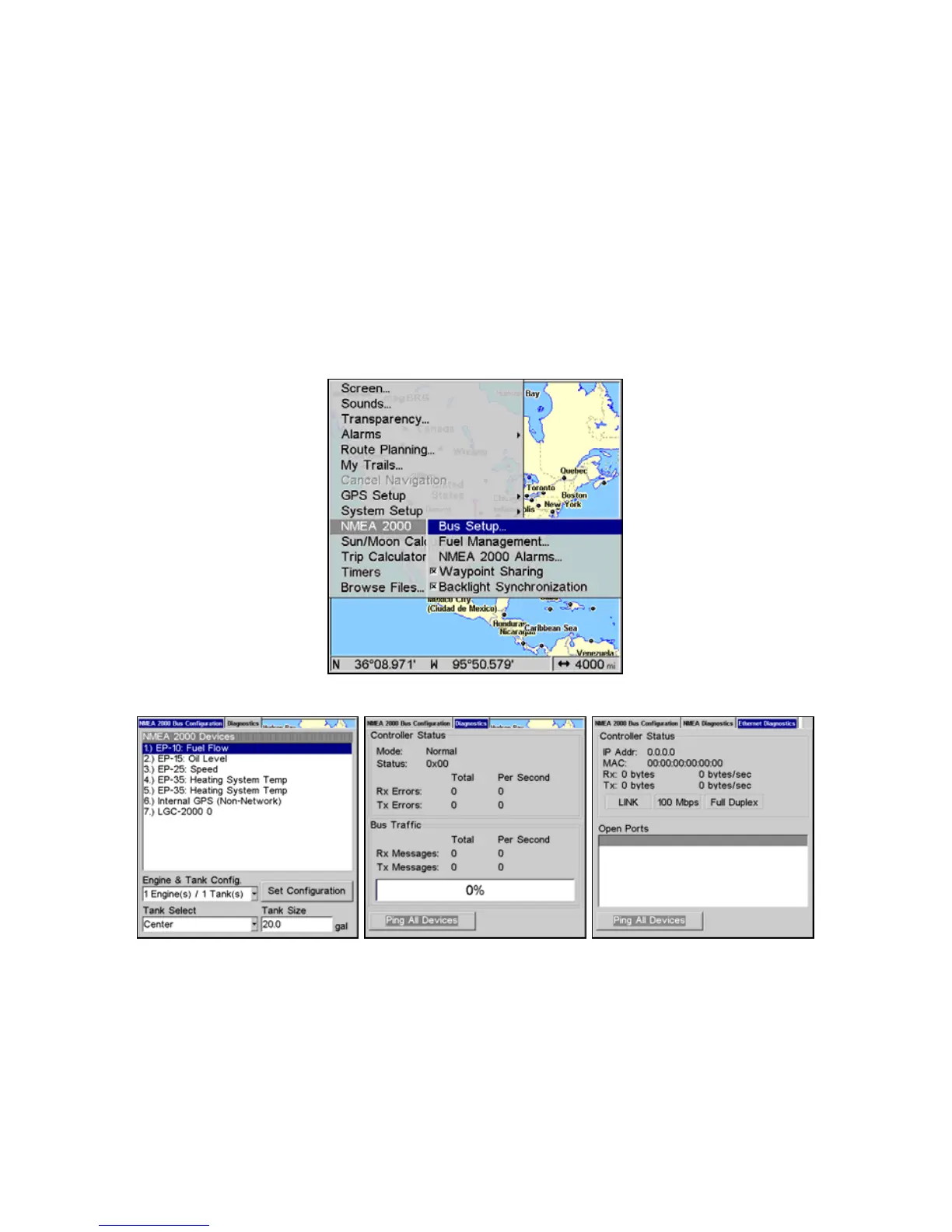

Bus Setup highlighted on the NMEA 2000 menu.
Bus Configuration menu (left). NMEA Diagnostics page (center).
Ethernet Diagnostics (right)
The NMEA Diagnostics page displays information about the perform-
ance of the network bus, keeping you updated on bus status, mode, er-
rors and bus traffic.
The Ethernet Diagnostics page keeps you updated on the performance
of an Ethernet connection (if applicable) supplying information ranging
