Chapter 7 Built-in High-speed Counter Function
XBC E-Type Main Unit 7-22 Ver. 1
7.2 Internal Memory
7.2.1 Special area for High-speed counter
Parameter and operation command area of built-in high-speed counter use a special K device.
If values set in parameter are changed, it uses the changed values. Make sure to use WRT command to save
the changed value to flash. If not saved in flash, the changed values when power cycling or mode change may
not be maintained.

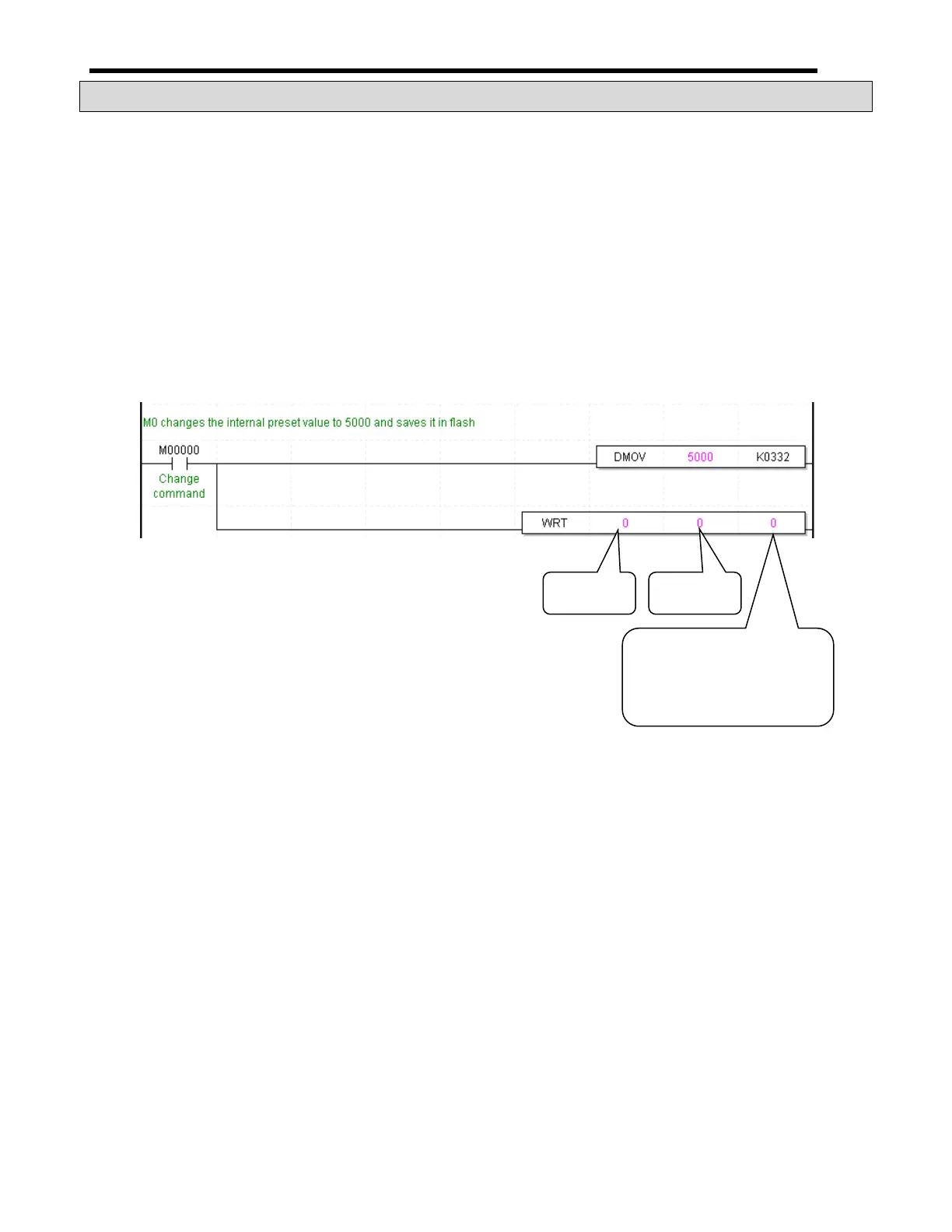

1. The following example shows that the internal preset values of CH1 set in parameter are
changed by program and saved in flash.
a. Receiving an order command (M000), it moves (MOV) the new internal preset value
(5000) to the CH1 present area (K332).
b. To save the changed settings into flash, use the WRT command. Slot information is set
to ’0’ when using built-in function.
Slot info
Unused
0: High speed counter
1: determining a
location
