LS tractor LW3150 - Manual Chute Rotation

PARTS
OM 0467SB-A [34]

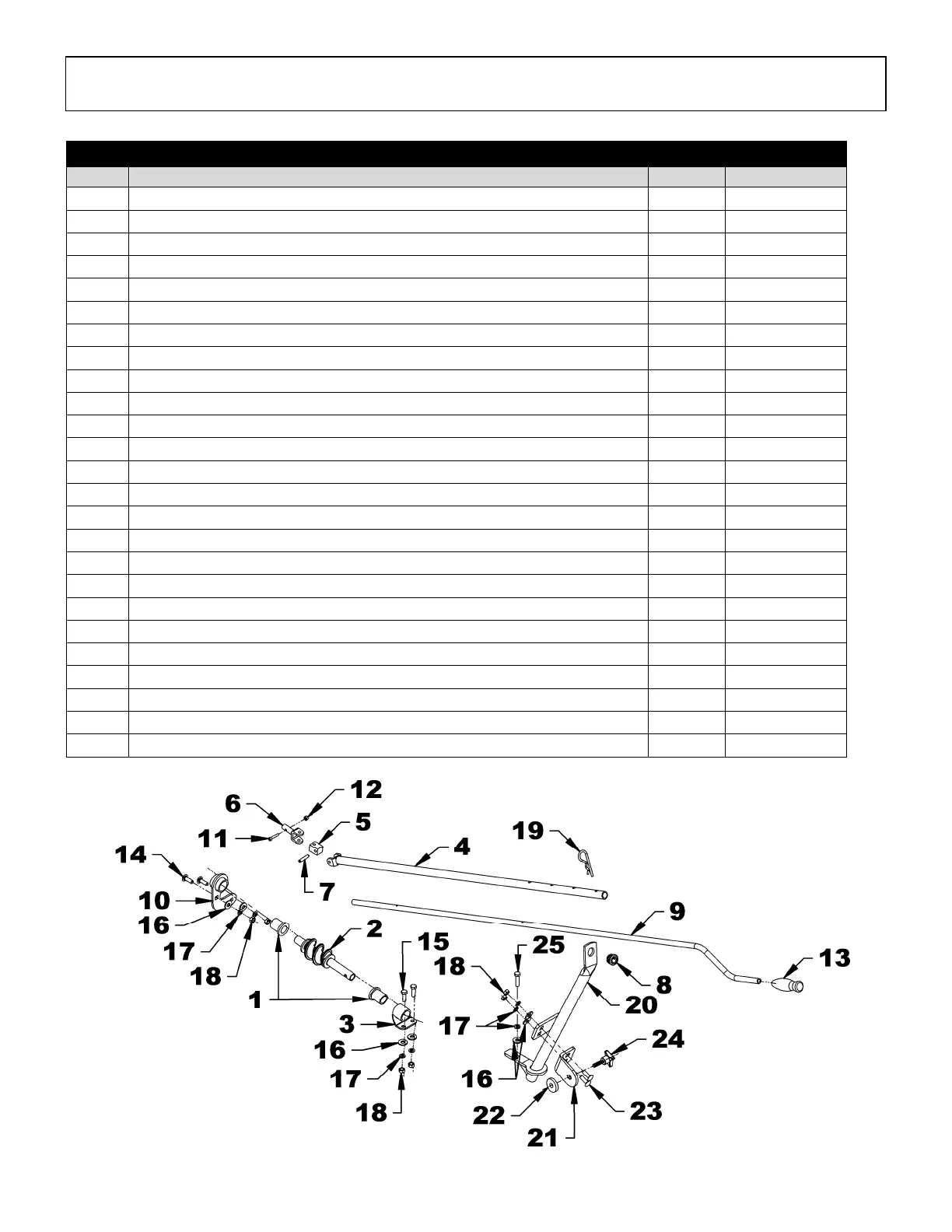

MANUAL CHUTE ROTATION
REF DESCRIPTION QTY PART#
1
PLASTIC BUSHING 1 5/16"
2 657335
2
ROTATION WORM
1 665037
3
REAR ROTATION WORM SUPPORT
1 670916
4
ROTATION TUBE ASSEMBLY (INCL.#5-6-7)
1 665041
5
- UNIVERSAL BLOCK
2 658193
6
- ROTATION YOKE
1 659595
7
- SPRING PIN 1/4 X 1 1/4
2 1600015
8
PLASTIC GROMMET
1 657390
9
HANDLE
1 667014
10 FRONT ROTATION BRACKET 1 671118
11
ALLEN SOCKET HEAD CAPSCREW 10-24 NC X 1"
1 0800009
12
PLASTIC BUSHING 1 5/16"
1 1000002
13 PLASTIC HANDLE 1/2" X 3" LG 1 656797
14
CARRIAGE BOLT 5/16" X 1"NC
3 0300003
15
BOLT HEX. 5/16"NC X 1" LG, GR. 5, PTD
2 0100019
16
FLAT WASHER 5/16" INT. PTD
7 1400003
17
LOCKWASHER 5/16", PTD
7 1200003
18
NUT HEX 5/16"NC PTD
6 0900002
19 HAIRPIN 4MM X 80MM PTD 1 1800002
20 HANDLE SUPPORT 1 671931
21 HANDLE SUPPORT BRACKET 1 671932
22 SPACER 1 671933
23 CARRIAGE BOLT 5/16" X 1"NC 2 0300003
24 PLASTIC "X" KNOB M8 X 1.25 X 30MM 1 0400032
25 BOLT HEX. 5/16"NC X 1 1/4" LG, GR. 5, PTD 1 0100020
FIG: RAD17XXXXX
