Leveling cylinder Up
Leveling cylinder Down
▶ According to the ambient temperature, the lift up/down speed of the implement
may be changed.
▶ Do not press and hold this switch over 20 seconds. If so, the error diagnostic code
shall be displayed on the instrument panel. BE CAREFUL !
Notice
▶DO NOT operate the switch with standing between tractor and rear implement.
The operator must only activate the external switch while standing to the side of the
tractor.
▶Never extend arms, any part of the body or any object into the area near the 3-point
linkage while operating the external up/down switch.
Caution

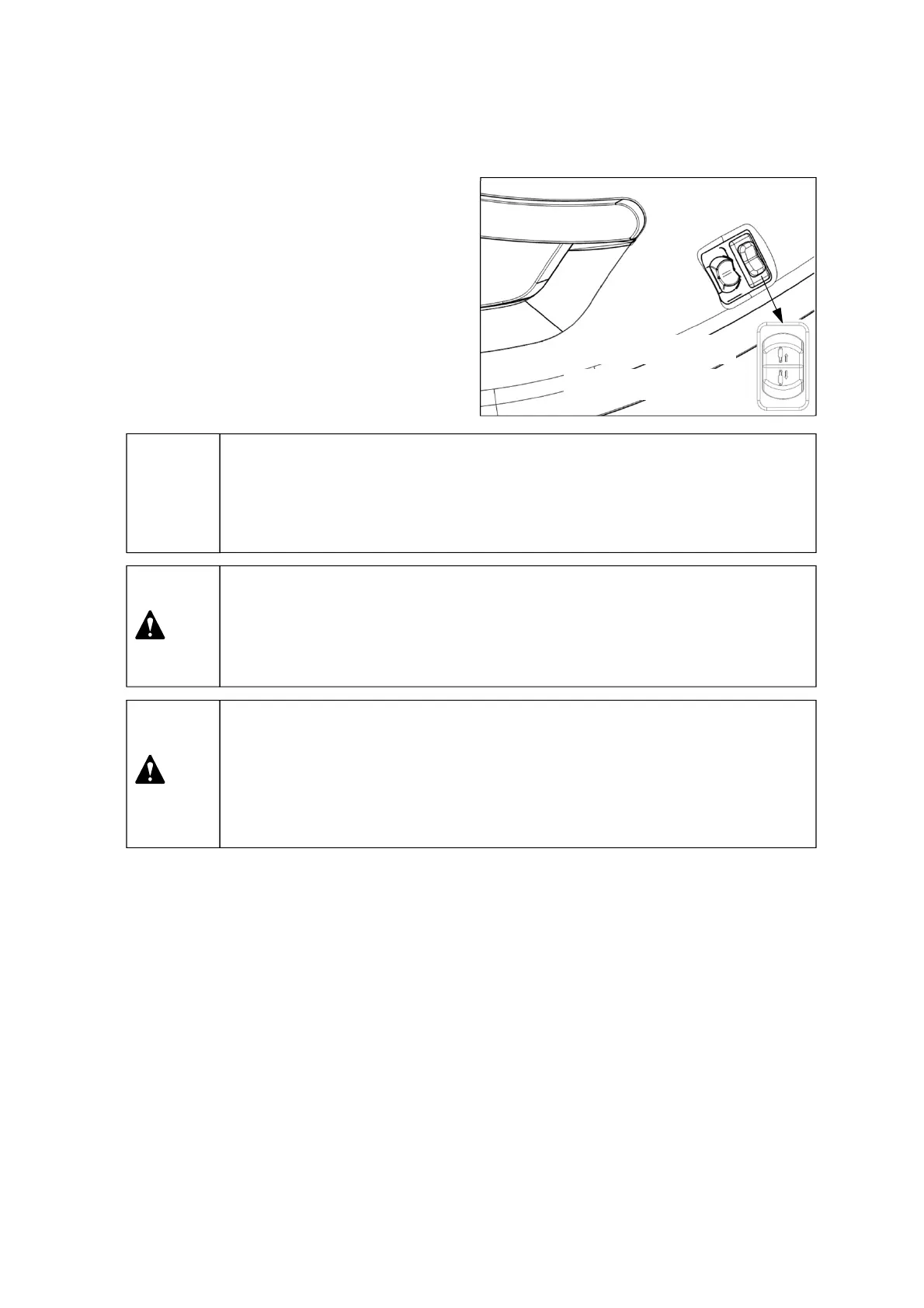

This switch is attached on the rear mudguards.
This is used to lift/lower the auto-leveling
cylinder for:
1) attaching or detaching the implement to the 3-
point linkage.
2) leveling the implement horizontally.
The auto-leveling cylinder is lifted/lowered while
pressing and holding this switch.
▶Before operating this switch, change the leveling mode switch to the Manual(M)
model.
▶If operating this switch in “Auto(A)” or “Slope(S) mode, the cylinder shall return to
original position automatically. BE CAREFUL !
Caution
② External leveling cylinder up/down switch (EHL, if fitted)
