5-12. Every 3000hr check
(1) Cleaning Emission related
parts
The following items are major
engine emission
related parts. These items are checked and
cleaned
periodically. But it is performed by
special engine service expe
rts. Contact your
authorized local dealer for check.
-. Fuel injector
-. DOC&DPF assembly
-. Tur
bocharger
-. ECU
-. EGR valve
-. Sensors
-. Air Control Valv
e (ACV)

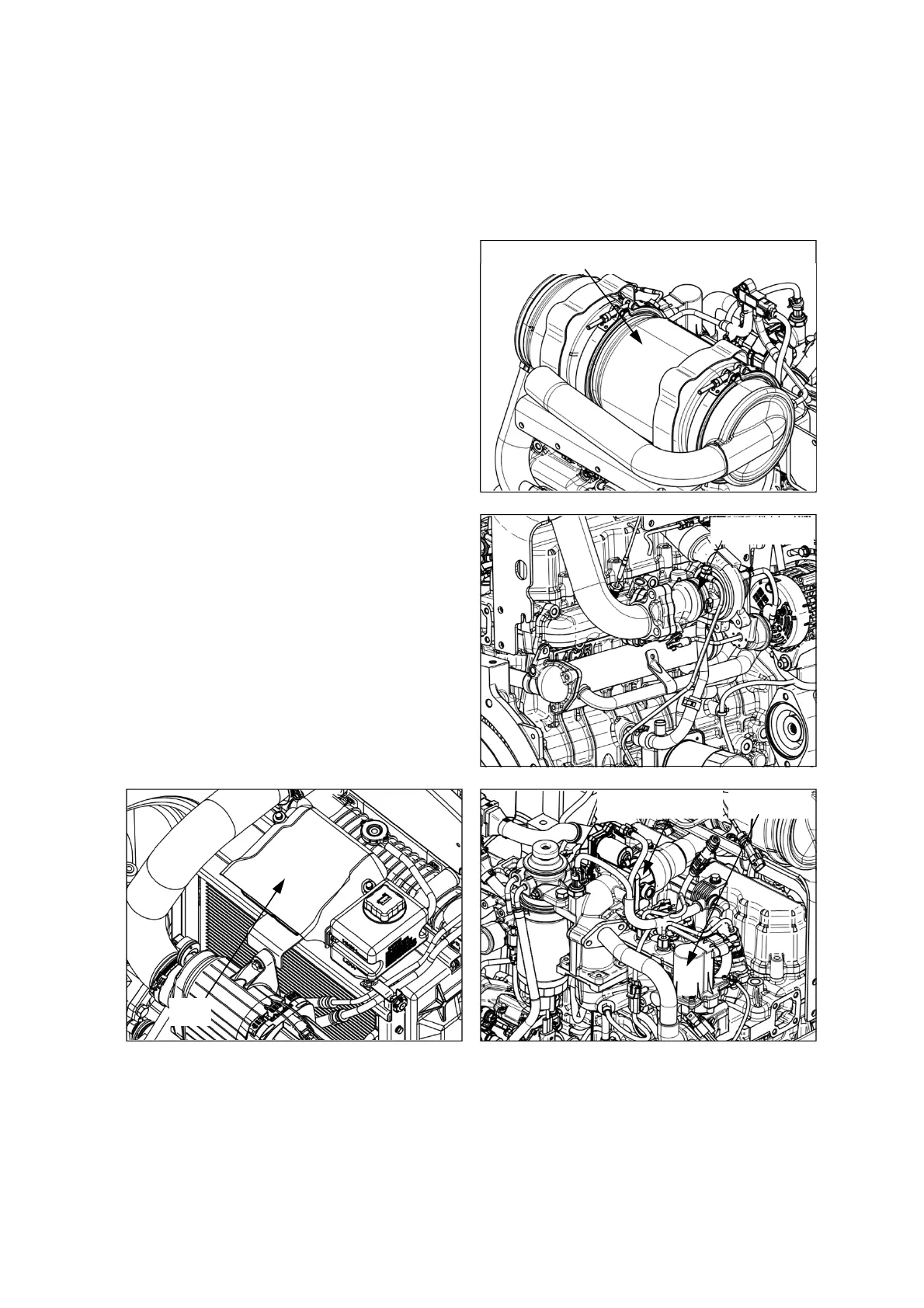

DOC&DPF assembly
ECU
EGR valve
Air Control Valv
e
Turbochar
ger
163
165
Table of Contents
Default Chapter
7
Table of Contents
7
1 General Notices for Safety
12
Before Using the Tractor
12
Safety Precautions (Read this for Safety before Using)
15
Notices before Using the Tractor
15
Notices When Starting Engine
18
Notices While Operating/Using the Tractor
19
Notices When Connecting Implement
22
Notices When Towing the Tractor
23
Notices When Transporting the Tractor
23
Notices When Servicing the Tractor after Work
24
Notices When Handling Diesel Fuel
25
Notices When Leaving the Tractor
26
Notice Relating to Toxic Substances
26
Long-Term Storage
27
Preparation for Storage
27
Check & Maintenance During Storage
28
Preparation for Reuse
28
Notices for "Use & Disposal" Related to the Environment
29
Symbols
30
Safety Decals
31
Handling and Maintenance of Safety Decals
31
Safety Decals and Attaching Position
31
2 Instruction for Safe Operation
36
The Name of each Part
36
Boarding and Exiting the Tractor
37
Boarding the Tractor
37
Seat Adjustment
38
Seat Belt
40
Tilting Steering Wheel
41
Ventilation (Cabin Only)
41
Exiting the Tractor
42
Safety Device
43
Hood (Bonnet)
43
Fender
43
PTO Safety Cover and Protection Cap
43
Roll-Over Protective Structure (ROPS)
44
3 Instruments and Controls
45
Instrument Panel and Front Controls
45
Instrument Panel
46
Key Switch
52
Throttle Pedal
52
Brake Pedals
53
Clutch Pedal
53
Shuttle Lever (Synchro-Shuttle)
54
Combination Switch
55
Hazard Warning Light Switch
56
Grille Work Light Switch
56
DPF Switch
57
Beacon Lamp Switch (if Fitted)
62
PTO Switch (if Fitted)
62
Right-Hand Controls and Cabin Pillar
63
Throttle Lever
63
Main Gear Shift Lever
64
Work Light Switch
65
Window Wiper Switch (Front, Rear)
65
Electrical Power Outlet Socket (Cabin Only)
66
Indoor Light (Cabin Only)
66
Audio Player (Cabin Only) (if Fitted)
66
4WD Switch
67
Parking Brake Lever
67
Differential Lock Switch
67
PT0 Mode Switch (Optional)
68
PTO Switch
69
Engine Speed Cruise Control (ESC) Switch
70
Left-Hand Controls
72
Range Gear Shift Lever
72
Creeper Gear Lever (if Fitted)
73
PTO Gear Lever
73
Passenger's Seat (if Fitted)
73
Power Shuttle System (PSS) (if Fitted)
74
Power Shuttle Lever (PSS)
74
Clutch Pedal (PSS)
76
Clutch ON/OFF Switch (PSS)
77
CAL/SEL Switch (PSS)
77
Engaging Speed +/- Switch (PSS)
78
Error Diagnosis Code (PSS)
79
Hydraulic System
81
Safety Precautions
81
Steering System
82
Hydraulic Lift Control (MHL)
83
Remote Control Lever and Quick Coupler (Optional)
86
Joystick Lever (Optional)
87
Auto Lift Control (MHL, if Fitted)
88
Hydraulic System Diagram
89
Electro-Hydraulic Lift (EHL) (if Fitted) (1) Configuration & Description of the EHL Controller
91
Operating Electro-Hydraulic Lift (EHL)
93
External Up/Down Switch (EHL)
99
Error Diagnosis Code (EHL)
101
4 Operation and Work
103
Engine Start and Stop
103
Engine Start
103
Start in Cold Weather
104
Engine Stop
105
How to Drive and Stop
106
How to Drive
106
Changing Speed
108
Emergency Stop
108
Stopping Tractor
108
Driving Tractor on the Road
109
Parking
110
How to Handle New Tractor
111
Check Points
111
Notices in Handling New Tractor
111
3-Point Linkage
112
Power Take-Off (PTO) Shaft
116
Hitch and Drawbar (Optional)
118
7-Pole Connector (Optional)
119
Technically Maximum Permissible Mass
120
Tires and Load Capacity
121
Adjusting Wheel Tracks and Tire Replacement
122
Using Front-End Loader (Optional)
127
Adjusting Steering Angle
130
Recommended Maximum Specification of Implements
131
Ballast Weights (Optional)
132
Working in Hazardous Area
133
Driving Speed
134
5 Lubrication and Maintenance
136
Access for Maintenance
136
Maintenance Chart
137
Lubricants and Capacity
139
First 50 Hour Check
140
When the Warning Indicator Lights
141
Drain Water from Fuel Filter
141
Check before Starting (Daily Check)
142
Engine Oil
142
Fuel Tank
143
Instrument Panel & Indicators
143
Engine Coolant
144
Air Cleaner (Dry Type)
145
Cleaning of Radiator and Radiator Screen
146
Adjustment of Clutch Pedal Play
147
Adjustment of Brake Pedal Play
148
Every 50 Hour Check
149
Lubricating Grease Nipple
149
Checking Transmission Oil
150
Checking Front Axle Oil
150
Battery Check
151
Air Cleaner (Dry Type)
151
Hydraulic Hoses and Leakage
151
Cleaning Cabin Air Filters
151
Every 300 Hour Check
152
Replacing Engine Oil and Filter
152
Replacing Hydraulic Oil Filter
153
Replacing Power Shuttle Oil Filter
153
Checking Brake Oil
154
Tension Adjustment of Fan Belt
155
Toe-In
155
Cleaning Fuel Tank
156
Every 500 Hour Check
157
Changing Front Axle Oil
157
Changing Transmission Oil
158
Replacing Fuel Filter Cartridge
159
Replacing Cabin Air Filters
160
Every 1000Hr or 1-Year Check
161
Replacing Air Cleaner Element (Dry Type)
161
Checking Nozzle Injection Pressure
161
Adjusting Engine Valve Clearance
161
Every 1500Hr or 2-Year Check
162
Cleaning Emission Related Parts
163
Every 3000Hr Check
164
Cleaning Emission Related Parts
164
General Maintenance (When Required)
165
Air-Bleeding from Fuel System
165
Air-Bleeding from Brake Lines
167
Air-Bleeding from Clutch Line (Synchro-Shuttle Models Only)
167
Fuse & Main Fuse
168
Battery Handling and Notices
171
Troubleshooting
175
6 Air Conditioning System (Cabin Type)
180
The Name of each Part of Cooling and Heating System
180
How to Use Air Conditioner and Heater
181
How to Operate Air Conditioner and Heater
181
Air Direction Control
181
Every 6 Month Check
182
Checking Refrigerant Amount
182
Cleaning Condenser and Radiator Screen
182
Checking Leakage
182
Belt Tension Adjustment
182
Cleaning and Replacing Cabin Air Filters
183
Every Year Check
183
Compressor Check
183
Control Switch Check
183
Using Cut-Off Valve (if Necessary)
184
Troubleshooting
185
System Diagram
187
