4 -13
When driving without attaching implement, comply with the followings.
1. Fix upper link(5) with the fixing hook.
2. Connect stabilizer(2) to the lower link(3) to avoid the lateral movement of the lower link.
If 3-point linkage is not necessary, remove it as follow.
1. Remove upper link pin(7) and upper link(5).
2. Detach rear side of the stabilizer(2) from the lower link(3) while holding lower link tightly not to fall
down.
3. Remove lift rod (LH), lift rod (RH) and stabilizer(2) step by step.
4. Remove lower link(3) carefully not to get hurt due to its weight.

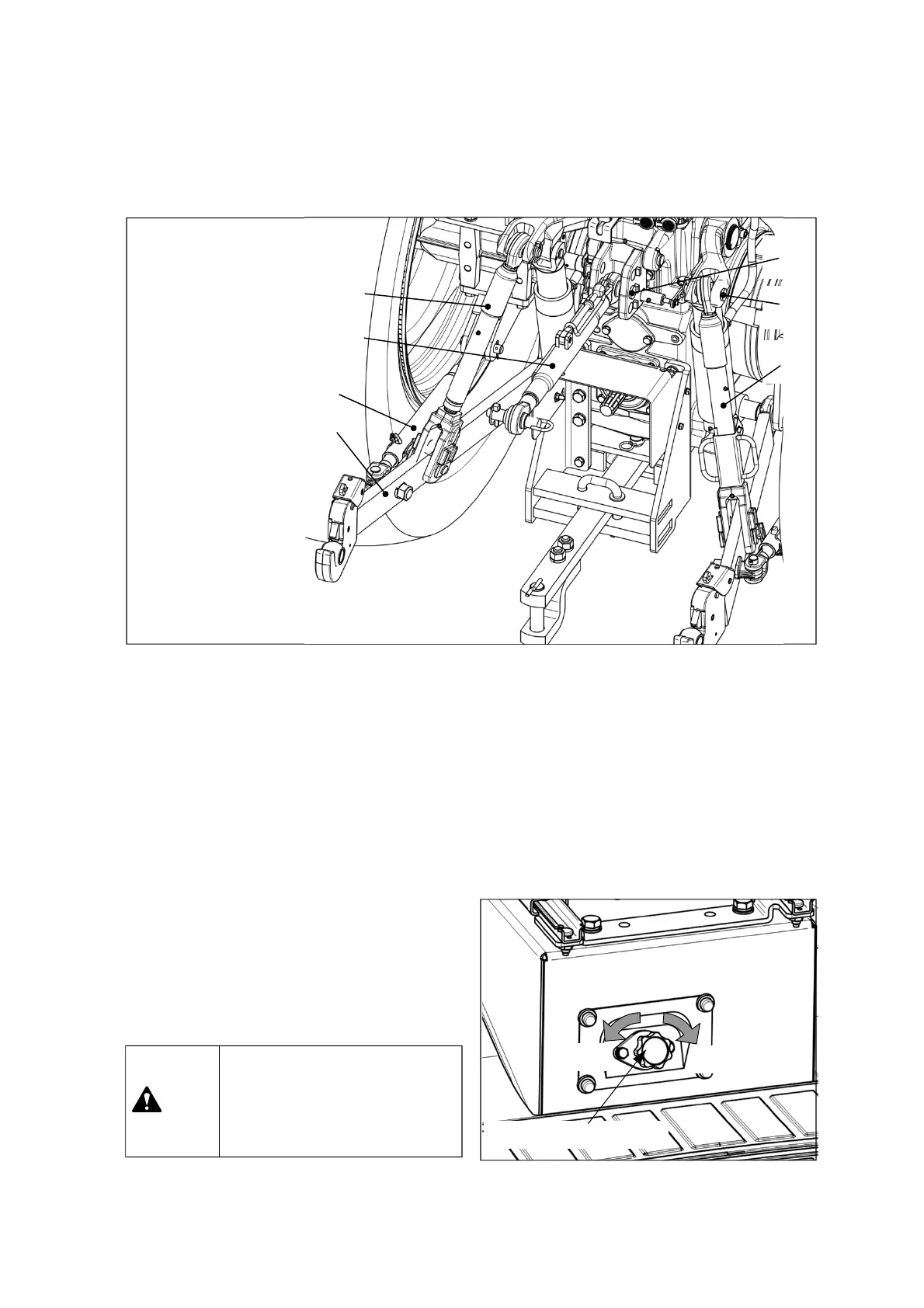

④ Handling of the 3-point linkage
1. Lift rod (RH)
2. Stabilizer
3. Lower link
4. Lift rod (LH)
5. Upper link
6. Lift rod pin
7. Top link pin
①
②
③
④
⑤
⑥
⑦
Down speed control knob
Fast
Slow & Lock
When using hitch/drawbar, or driving on road, lift
up the 3-point linkage and fix it by turning the
down speed control knob to lock position.
▶ The parts of 3-point linkage are
very heavy. When attaching/
detaching them, take care not
to get injury. BE CAREFULL !
Caution
