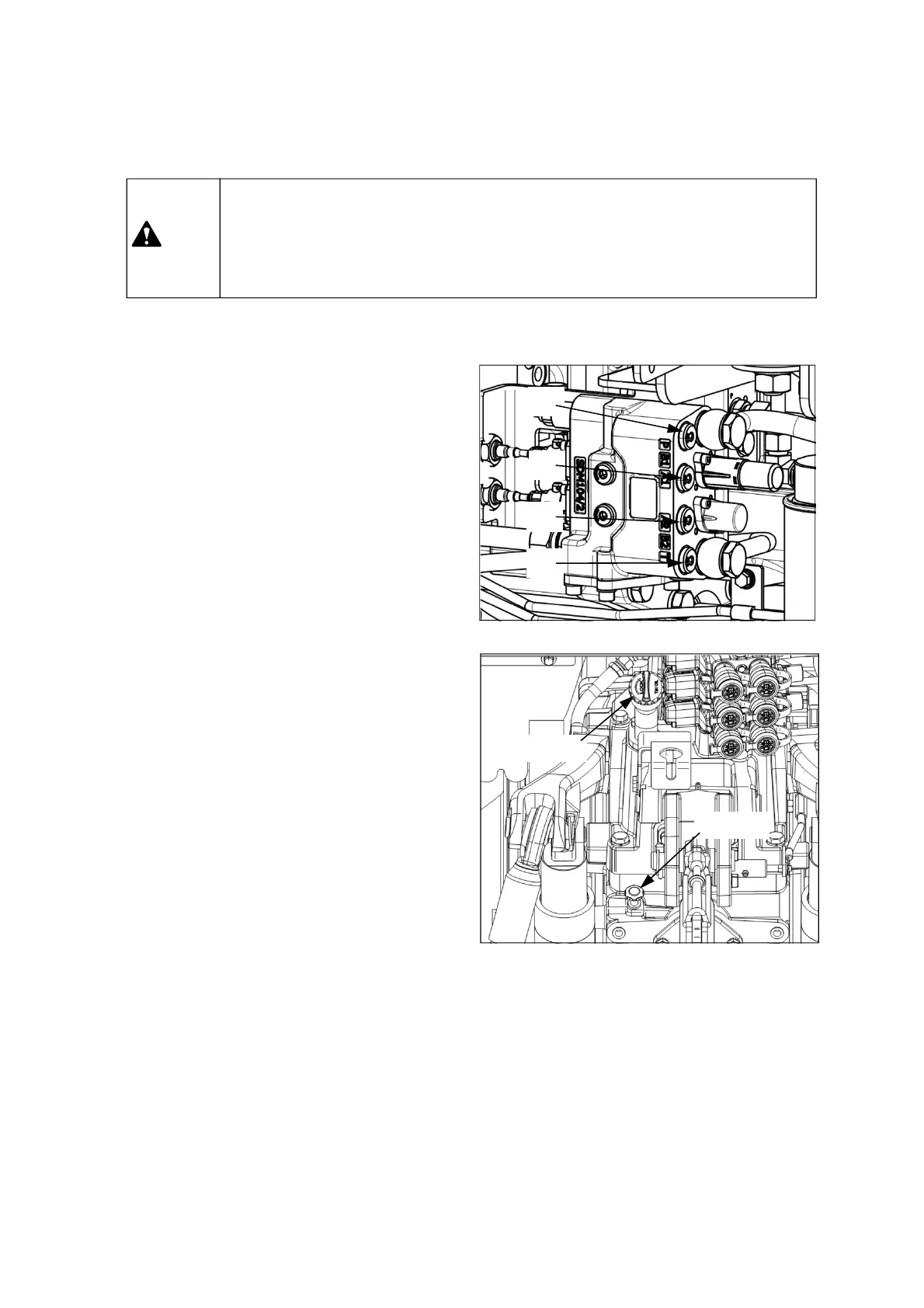

② Connection of hydraulic hoses
Refer to the following instruction for hydraulic
hoses connection.
Boom lowering – outlet 1
Boom lifting ------ outlet 2
Bucket lifting ----- outlet 3
Bucket dump ----- outlet 4
The thread specification of outlet ports is PF 3/8.
Use suitable quick couplers for hose connection.
If possible, contact your authorized local dealer.
After connecting the hoses, start the engine and
check the leakage of the hydraulic lines.
PRE-OPERATION CHECK, REAR BALLAST !
▶ For tractor stability and operator’s safety, rear ballast should be added to the rear
of the tractor in the form of implements as counter weight like Back Hoe, Rotary
Tiller, etc. The amount of rear ballast will be depend on the application.
Caution
After lowering the front implement, check if the
transmission oil level is marked between “Min”
and “Max” scale on the oil gauge. If necessary,
add new oil.
Oil filling inlet
Oil gauge
