② Draft control
The working depth of the implement under the
draft control is controlled automatically by the
draft load of the implement that detected from
draft load sensor bracket and transmitted to the
lift control valve. Generally, this mode is used for
the implement which receives the draft load.
In this case, operate the lever as follows.
1.Remove the draft sensor stopper of upper link
bracket.
2.Move the position control lever forward fully
(Down) and let the implement down by its own
weight.
3.The draft load to lift control valve shall be
determined according to the position of draft
control lever.
That is, the more the lever moves back (up), the
more the implement rises up by light draft
load.
4.If you want to lift the rear implement, use the
position control lever instead of the draft control
lever
Light load
Heavy load

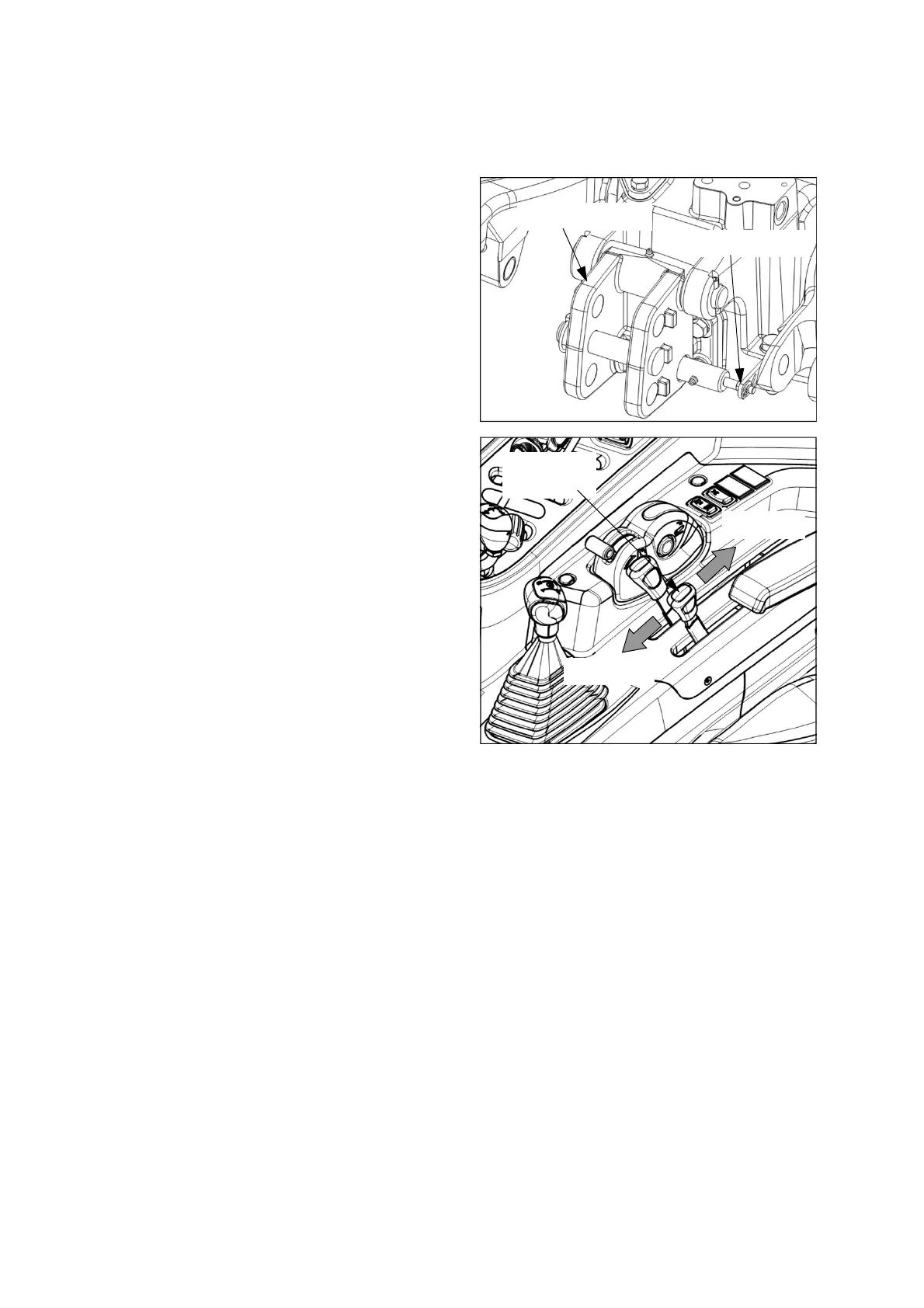

Draft control
lever
③ Mixed control
If using above two levers in combination, mixed control is available. Set the position of the implement
first, and set the draft control lever depending on the draft load. At this time, working depth can be
controlled by draft control lever under position control.
Upper link bracket
Draft sensing rod
