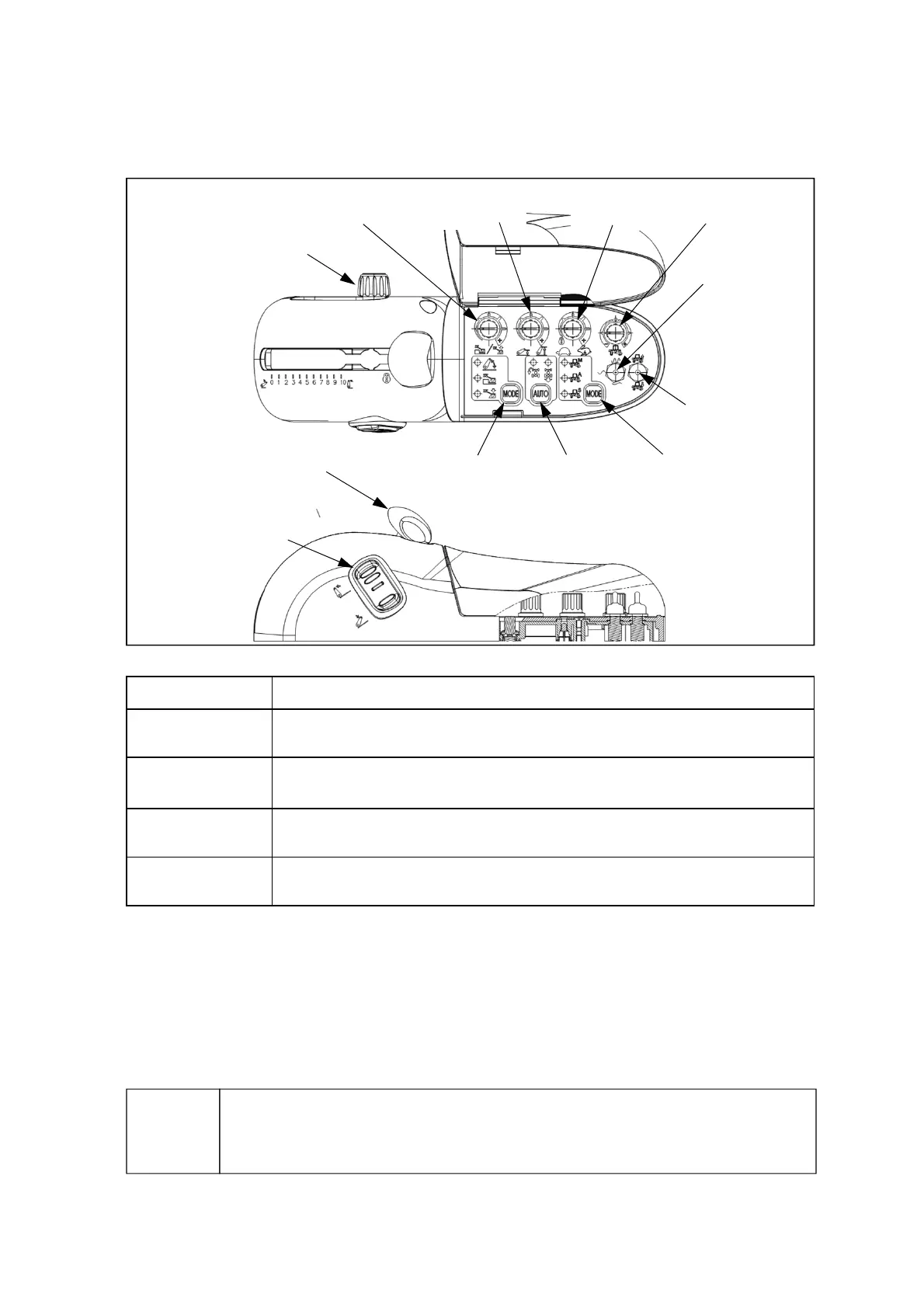

Switch Function
Leveling mode
switch
It is used to select mode, Manual(M), Automatic(A) and Slope(S) mode of
the Auto-leveling control.(optional)
Slope setting
dial
It is used to adjust or set the slope of the implement in Automatic(A) or
Slope(S) mode of the Auto-leveling control. (optional)
Sensitivity
switch
It is used to adjust or set the sensitivity of the Auto-leveling control. (optional)
Manual up/down
switch
It is used to operate the leveling control cylinder and set the slope of the
rear implement manually. (optional)
Lower limit setting knob
One touch
up/down switch
Work mode
setting switch
Auto lift
mode switch
Down speed
setting dial
Draft/Depth control
setting dial
Upper limit
setting dial
Position control
lever
Leveling mode
switch (if fitted)
Slope setting
dial (if fitted)
Sensitivity
switch (if fitted)
Manual up/down
switch (if fitted)
Notice
▶Do not press and hold all the switches related EHL over 10 seconds. If so, the error
diagnostic code shall be displayed on the instrument panel. BE CAREFUL !
