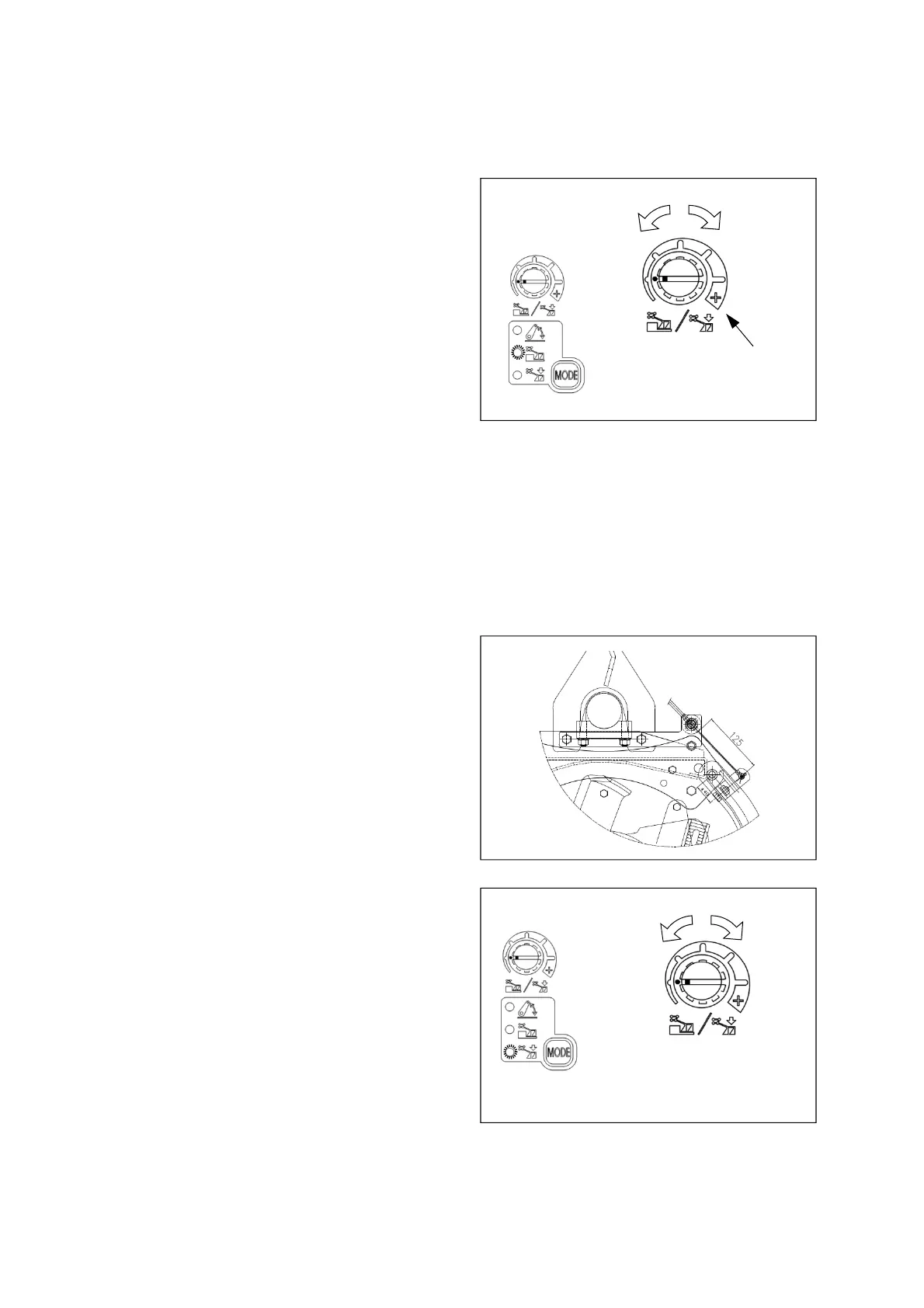

② Draft control
This mode maintains the draft load from the
implement consistently by detecting the load and
transmitting it to the hydraulic valve to lift up or
down the implement. Generally, this is useful for
the implements such as plow.
1. Press the work mode setting switch with
checking that the draft control LED is ON.
If the position control lever is synchronized to the
3-point linkage, the draft control starts with beep.
2. The load that hydraulic valve receives shall be
determined according to the setting of
Draft/Depth control setting dial. That is, the more
the dial turns left (“Light”), the more the
implement rises up by a little draft load.
3. If you need to lift the implement up, use the
position control lever or one touch up/down
switch.
③ Depth control
This mode maintains the tillage depth
consistently in the even working area such as
crop fields by detecting movement of the tiller
rear cover.
1. As shown in the figure, bracket and cable
must be installed on the tiller. After installing,
check if cable stroke is 125mm. (4.92 in.)
2. Press the work mode setting switch with
checking the depth control LED is ON.
If the position control lever is synchronized to the
3-point linkage, the depth control starts after 3
seconds.
3. The tillage depth is determined according to
the setting position of the Drafting/Depth control
setting dial. The more setting dial position is
‘Deep’, the more the tiller maintains deep tillage
depth.
4. When the engine receives excessive load
continuously, turn the dial to the left gradually.
To release the instantaneous excessive load,
pull the position control lever backward a little
and push it to the original position.
HeavyLight
Draft/Depth control
setting dial
Deep
Shallow
Draft/Depth control
setting dial
