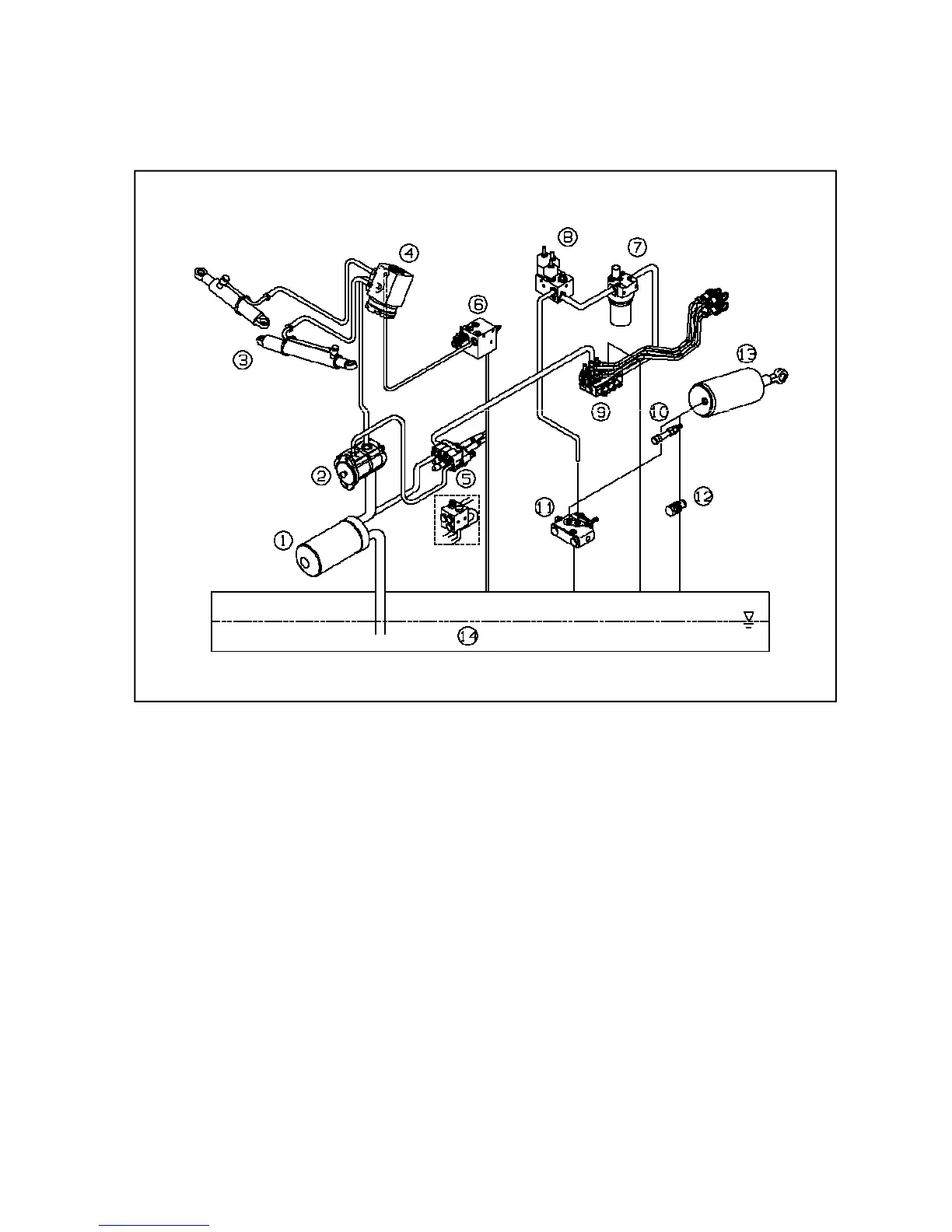

② U5030 / U5030C
1. Hydraulic oil filter
2. Hydraulic pump
3. Steering cylinder
6. Independent PTO valve
7. In-line filter (option)
8. Auto leveler valve (option)
11. Hydraulic lift control valve
12. Safety valve
13. Hydraulic lift cylinder
3
3 3
3 - 21
4. Power steering unit
5. Front loader valve
Front outlet valve (option)
9. Remote control valve
10. Drop speed control valve
14. Oil tank(Transmission case)
