(6) Toe-in

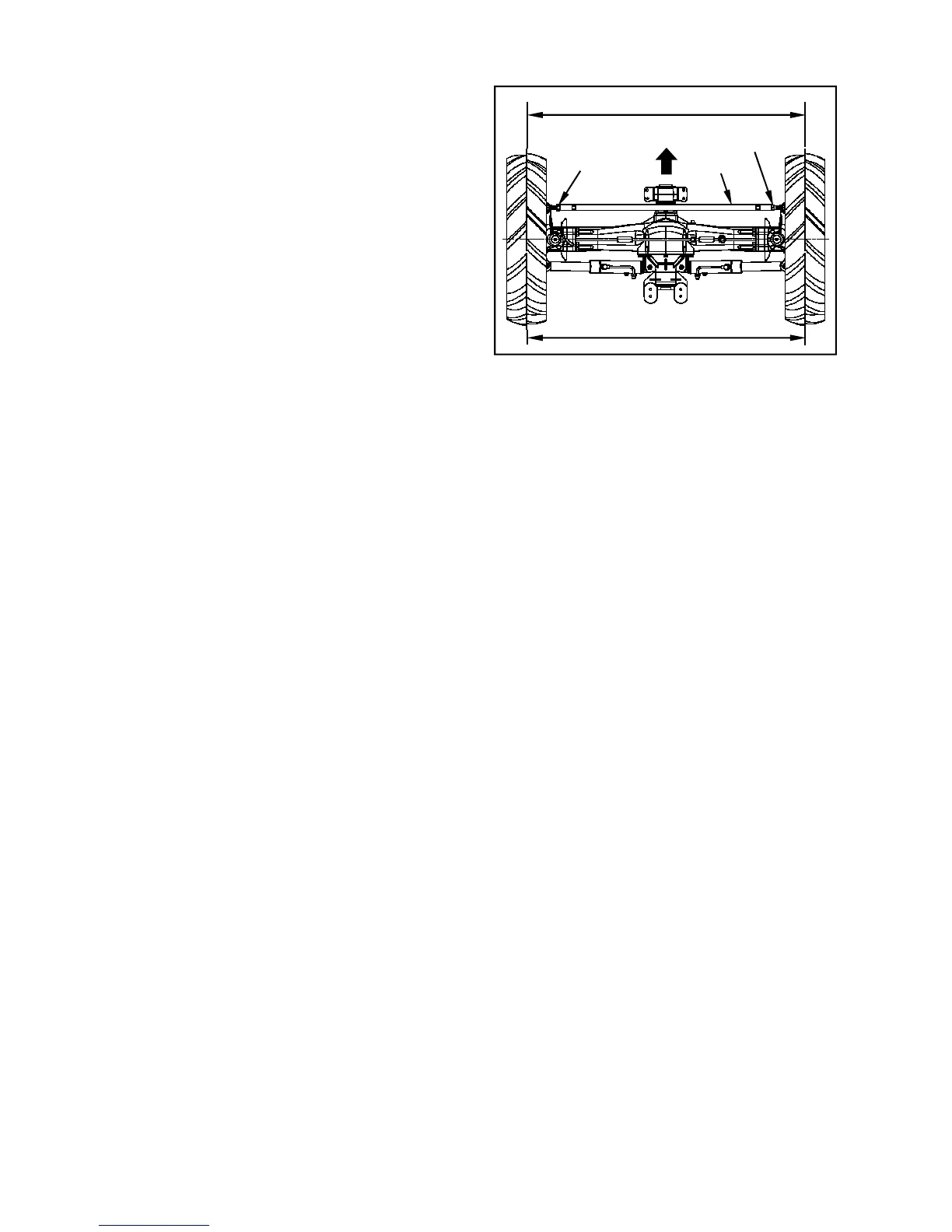

Check and adjust Toe-in of the front wheel as
follow.
Normal value ; B – A = 0~5 mm (0~0.2 in.)
Unscrew the lock nuts of the tie rod.
If you turn the tie rod clockwise at right hand side
“B-A” shall be increased.
After checking that Toe-in is correct, tighten the
lock nuts.
A
Lock nut
Lock nut
FRONT
B
Tie rod
