2.2 Scope of Delivery of the LSPV inverter 010K to 020K
The scope of delivery of the LSPV inverter includes a wall-mounting bracket and an enclosed bag
0030532 containing:
- 1 x 5-pin contact insert, IP67, VC-TFS5-PEA
- 1 x adapter housing, IP67, VC-K-T3-R-M25-PLOMB
- 2 x 4-pin male connectors, SACC-M12MS-4SC SH => RS485
- 1 x 4-pin female connectors, SACC-M12FS-4SC SH => relay
- 1 x Ethernet connector Phoenix Contact VS-08-RJ45-5-Q / IP67
- 3 x U-washer, shape B, M8, DIN125-8
- 1 x cable gland, Schlemmer-Tec, M25x1.5/21532
- 2 x cross-recessed flat-head screw, M5x20 => for mechanically securing the device
in the wall bracket
The IP67 VC-K-T3-R-M25-PLOMB adapter housing allows sealing according to DK4940.
The seal is run through a hole in the screw (below the screw head of the adapter housing) and the
opening provided and attached to the housing of the device.
2.3 Outside Dimensions of the LSPV inverter 010K to 020K

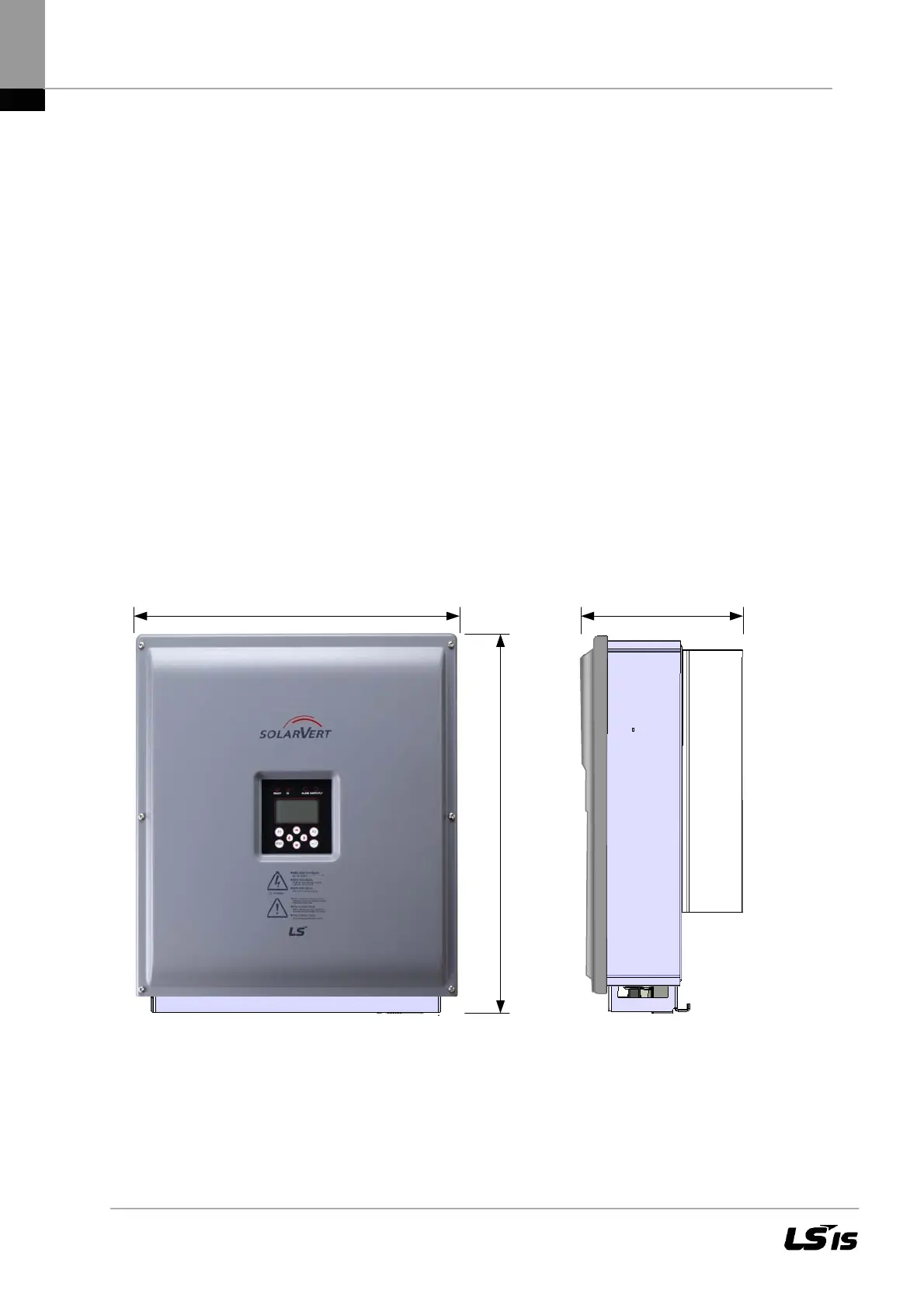

Figure 2 LSPV inverter 010K to 020K
535 280
600
