25
• USB
Ready-made IP20 cable on IP67 plug:
Phoenix Contact VS-04-2X2X26C7/7-67B/SDA, part no. 1653922 for 5 m.
Phoenix Contact VS-04-2X2X26C7/7-67B/SDA, part no. 1653919 for 2 m.
• Ethernet
Plug contained in the enclosed bag.
Please use an Ethernet cable with S/FTP design (screened foiled twisted pair).

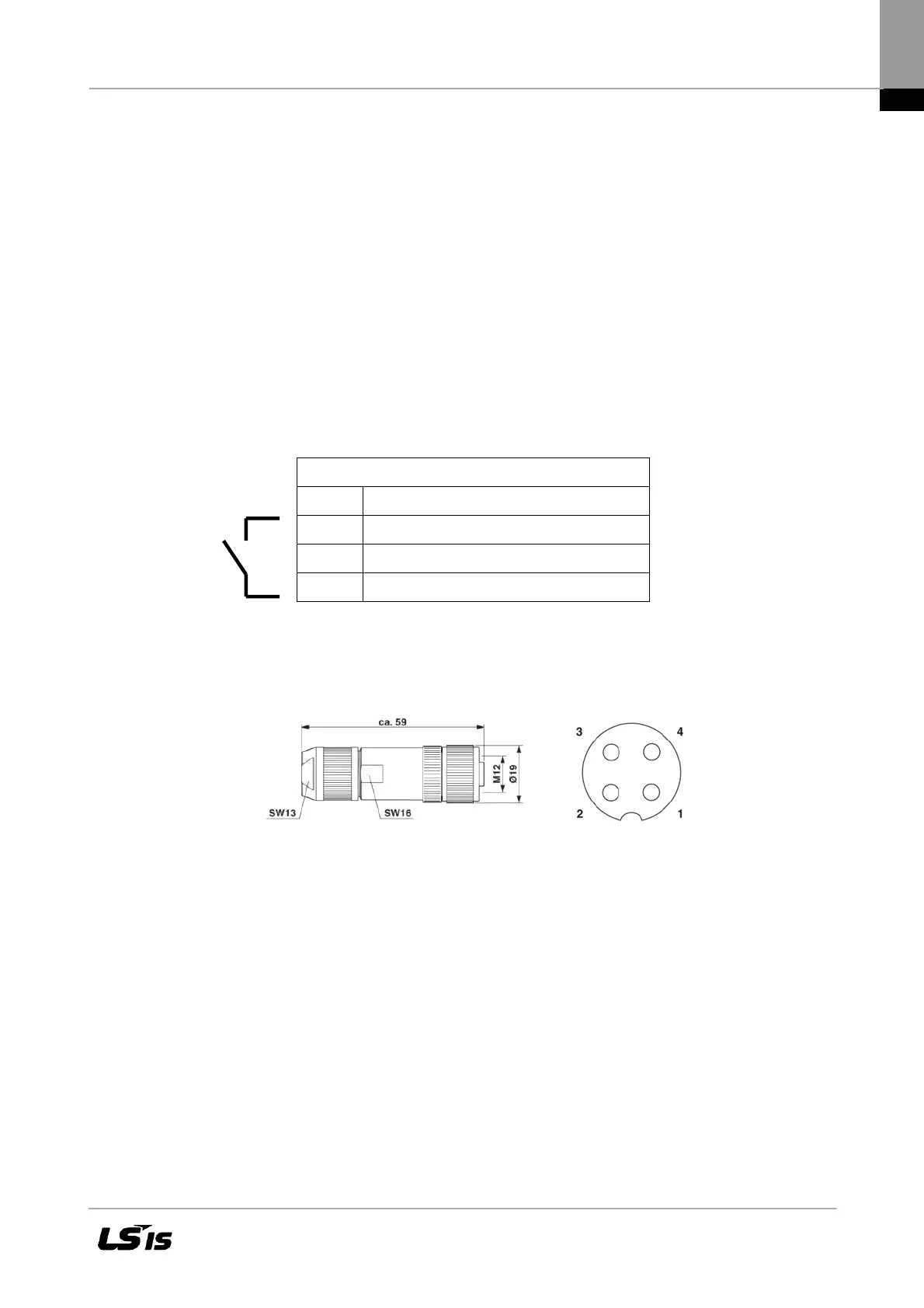

3.15 Relay Port
X61 Normally open contact
Pin 1 -
Pin 2 Contact rating 2 A/230 V AC-3
Pin 3 -
Pin 4 Contact rating 2 A/230 V AC-3
• Plug contained in the enclosed bag.
• The relay is programmed as fault message (contact closes).
Figure 15 Connector M12 x 1 straight, screened; pole arrangement: female M12, 4 pins, A-
coded, view of female connector side
