12

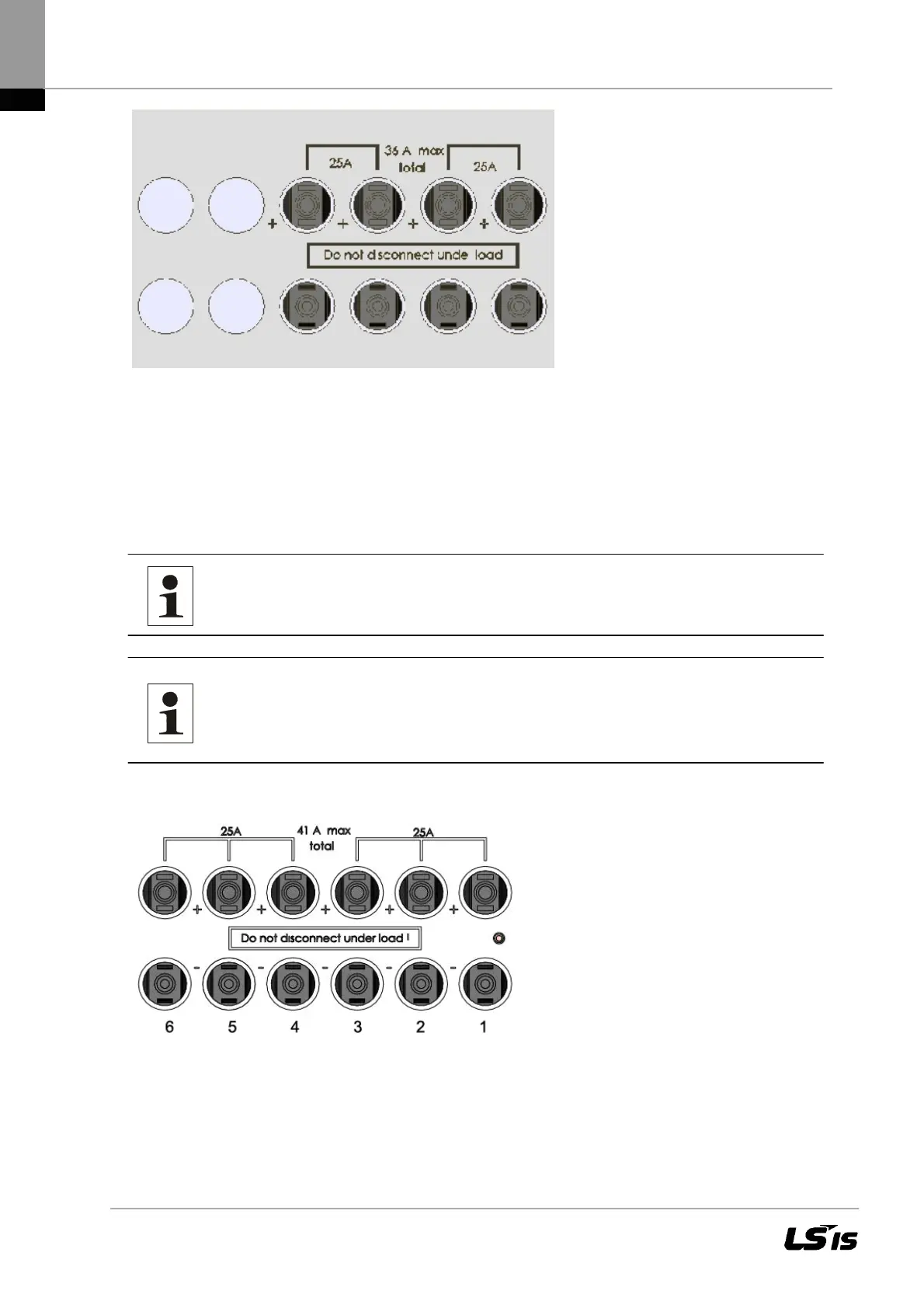

Figure 4 PV generator connector LSPV inverter 010K to 013K
LSPV inverter 10K and 13K:
2 PV connecting lines Æ inputs 1 and 3 or inputs 2 and 4
3 PV connecting lines Æ inputs 1, 2 and 3 or inputs 1, 3 and 4 or inputs 2, 3 and 4
4 PV connecting lines Æ inputs 1, 2, 3, 4
Note: Not observing the requirements may resultin a malfunction and damage to
the DC-Circuit breaker and thus the warranty deemed void!
Note: Should all DC inputs not be occupied, then the open inputs are closed with
MC4 closure caps. By Not observing these requirements the IP65
protection class can not be guaranteed! Both caps (+/-) can be ordered at
any time under the part no. 0028991 and 0028992 from LSIS.
Figure 5 PV generator connector LSPV inverter 017K to 020K
LSPV inverter 17K and 20K:
