• Mount the device at an appropriate distance from combustible materials.
• We recommend that you mount the device at eye level to ensure optimum user comfort.
• Owing to its protection type (IP65), the device can also be mounted in outside areas.
Note: To ensure protection class IP65, only use the male and female
connectors provided for connecting the LSPV inverter and connect
them according to the connector manufacturer's mounting instructions.
To protect against penetrating moisture and dirt, unused inputs and
outputs must be properly closed. Failure to observe these
specifications could void your warranty!
Note: Do not cover the cooling ribs of the heat sink. Failure to observe this
specification could void your warranty.
• To allow for the heat dissipation required, keep the following minimum distances from
the ceiling and wall as well as from neighboring devices.
Minimum
distances
At the
sides
50 mm or
1.9685 inches
At the
top
500 mm or
19.685 inches
At the
bottom
500 mm or
19.685 inches

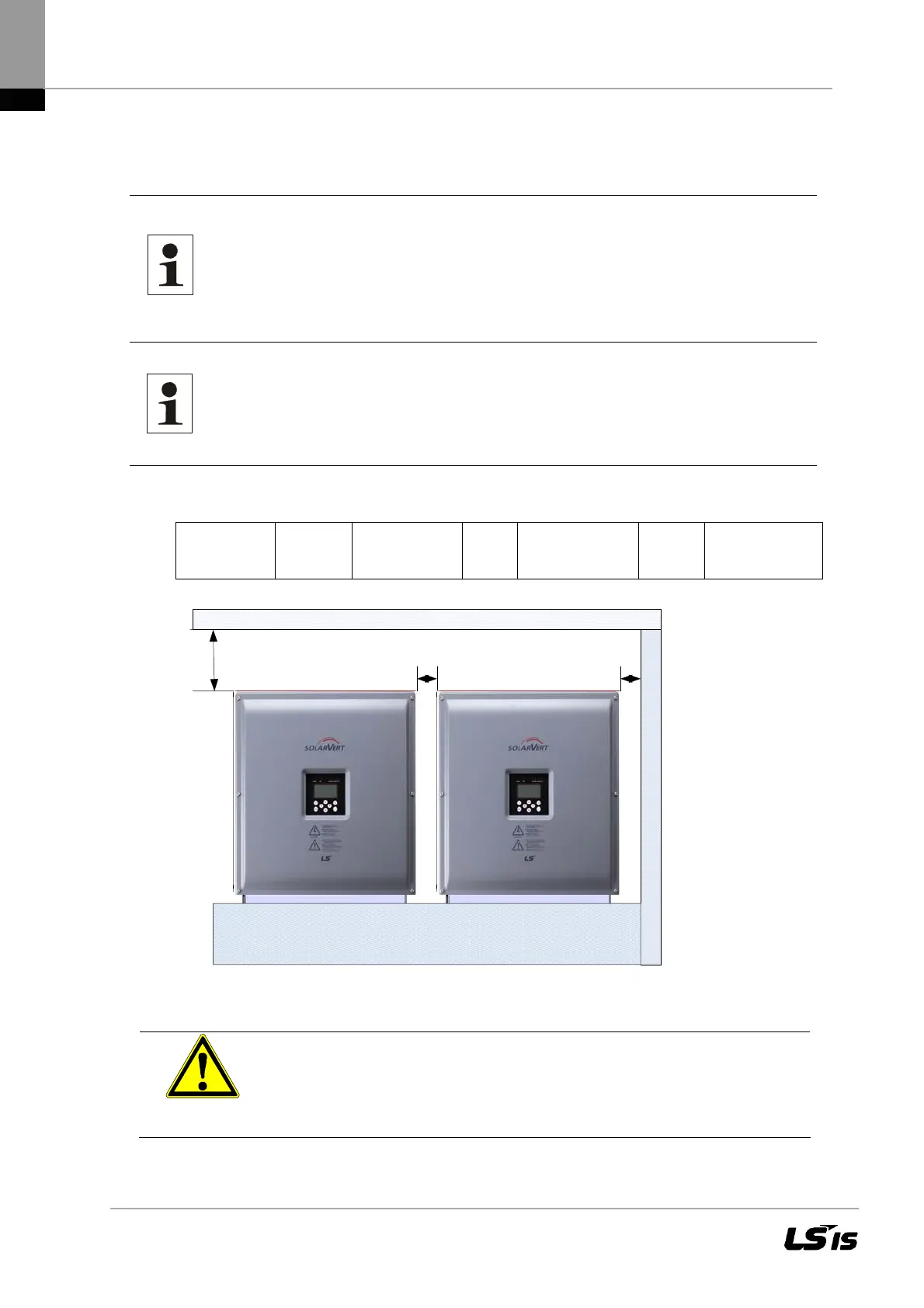

Figure 8 Minimum distances
CAUTION
LSPV inverter should in no case be mounted on top of each other with-
out a Power Cap otherwise the convection cooling will be affected!
50
500
50
500
