• Initializing has been completed:
Ö The "READY" status LED emits steady light
• Display:
Ö PAC Feed power in watts (W)
Ö UAC Line voltage in volts (V)
Ö UDC Solar cell voltage in volts (V)
Ö Switched off

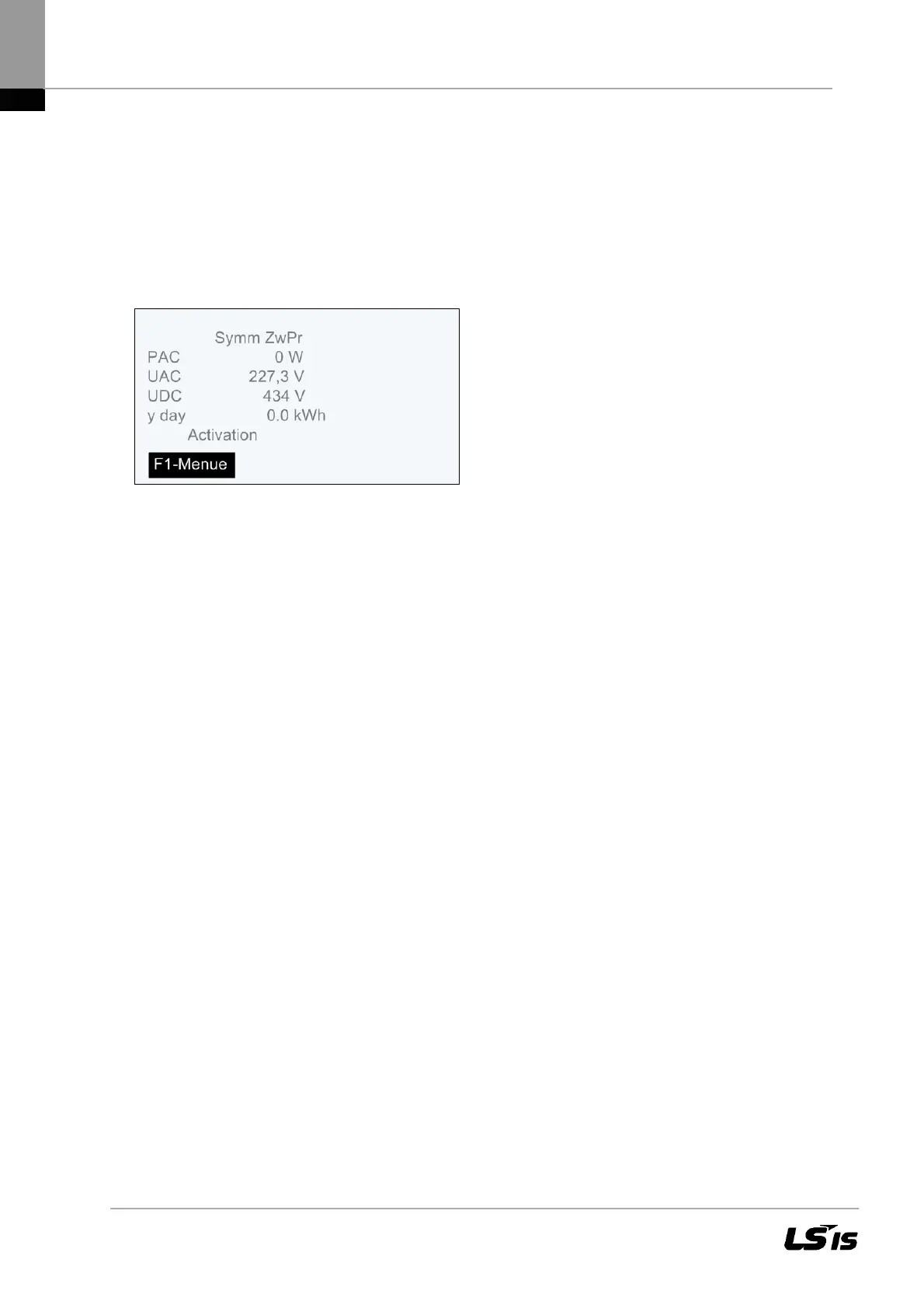

Figure 17 Device activation display
• Power-up starts if the solar cell voltage is >350 volts:
Ö The "READY" status LED is lights, the "ON" status LED is flashing
• Display:
Ö Pac Feed power in watts (W)
Ö Uac Line voltage in volts (V)
Ö UDC Solar cell voltage in volts (V)
Ö Activating
Ö This process can take up to one hour while the device is commissioned; during normal
operation, it takes up to 3 minutes.
• Feed mode:
Ö The "ON" status LED emits steady light; the "READY" status LED turns dark.
• Display
Ö PAC Feed power in watts (W)
Ö UAC Line voltage in volts (V)
Ö UDC Solar cell voltage in volts (V)
Ö Y DAY Yield of the day in kWh
Ö Operation
• Check time:
o If the electronic system was disconnected from the supply voltage for a longer period
(approx. 2-3 weeks) incorrect time setting is possible. For this reason, the time must be
checked and reset if necessary before switching on:
