34
Press the ►arrow key, then the ▼arrow key to display the development of standardized yield data.

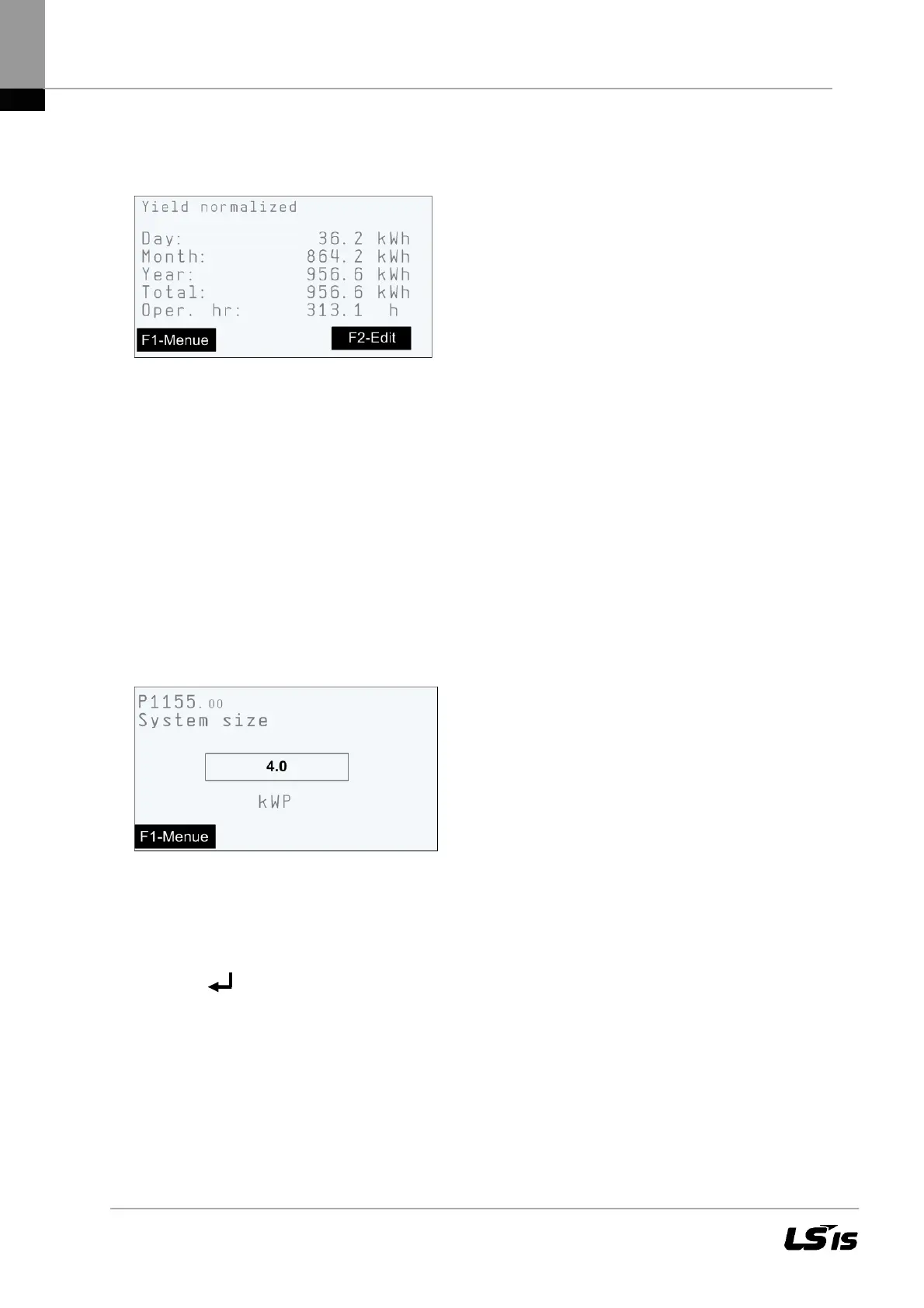

Figure 23 Standardized yield data display
Press the ESC key to return to the basic screen display.
Input of standardized data:
To obtain the standardized yield data, press the F2 key and enter the connected PV generator
power under parameter P1155 as follows:
keys:◄►: Press the ◄ key => selects the digit to the left of the decimal point
Press the ► key => selects the digit to the right of the decimal point
key ▲: Whenever you press this key, the number at the digit selected is incremented
by 1.
key ▼: Whenever you press this key, the number at the digit selected is decremented
by 1.
Figure 24 Standardized data input display
Press the ESC key, the previous “normalized yield” level will be displayed.
Press the F1 key to display the menu.
Press the to apply the set value. However, this requires that the password is correct.
