LSIS Master-K K1000S User Manual

Chapter 7 I/O modules MASTER-K
7-18

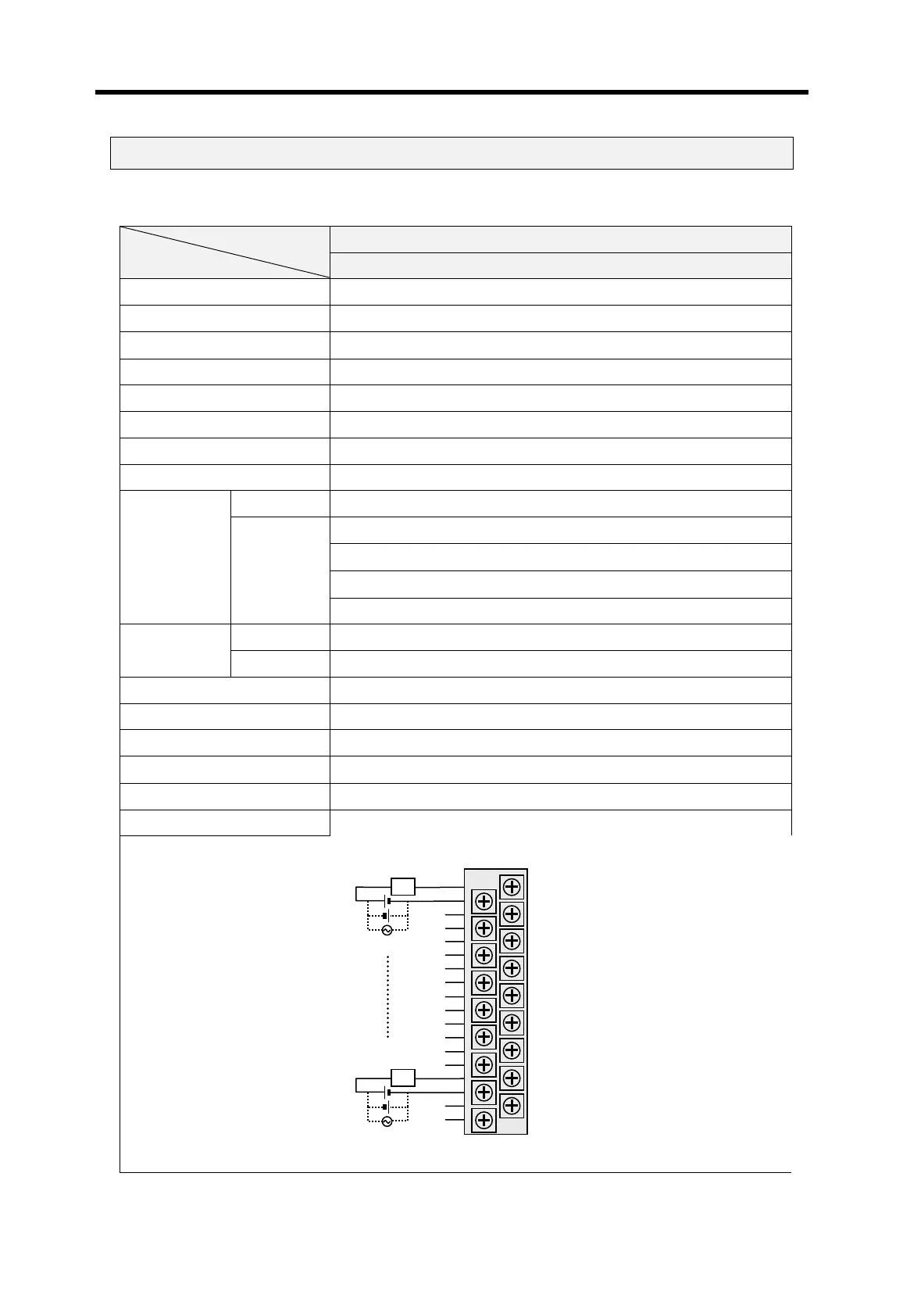

7.3 Digital output modules
7.3.1 8 points relay output module
K200S Type
Item
G6Q-RY1A
Output points 8 points
Insulation method Photo coupler
Rated load voltage / current
24 VDC / 2A (resistive load), 220 VAC / 2A (cosψ = 1)
Minimum load voltage / current 5 VDC / 1mA
Maximum load voltage 125 VDC / 250 VAC
Leakage current 0.1 mA ( 220 VAC, 60Hz )
Maximum switching frequency 3,600 times / hour
Surge absorber None
Mechanical No load Over 20 million times
Rated voltage / current Over 0.1 million times
200VAC / 1.5A, 240VAC / 1A (cosψ = 0.7)
Over 0.1 million times
200VAC / 1A, 240VAC / 0.5A (cosψ = 0.35)
Over 0.1 million times
Lifetime of
contact
Electrical
24VDC / 1A, 100VDC / 0.1A (L / R = 7ms) Over 0.1 million times
Off Æ On 10msec or less
Response time
On Æ Off 12msec or less
Common method 1 point / 1COM (Independent common)
Internal current consumption 210mA (when all outputs are on)
Operation indicator LED
External wiring
18 points terminal block connector ( M3×6 screw)
Weight 160 g
Wiring diagram
00
L
02
01
03
04
05
06
07
L
N.C
N.C

LSIS Master-K K1000S Specifications

General

Model	K1000S
Category	Controller
Series	Master-K
Type	Programmable Logic Controller (PLC)
Program Memory	32 KB
Data Memory	16 KB
Communication Ports	RS-232C, RS-485
Power Supply	24 VDC
Weight	0.5 kg
CPU Type	32-bit RISC
I/O Capacity	Up to 256 points
Programming Language	Ladder Diagram
Operating Temperature	0°C to 55°C
Dimensions	90 x 80 x 60 mm
