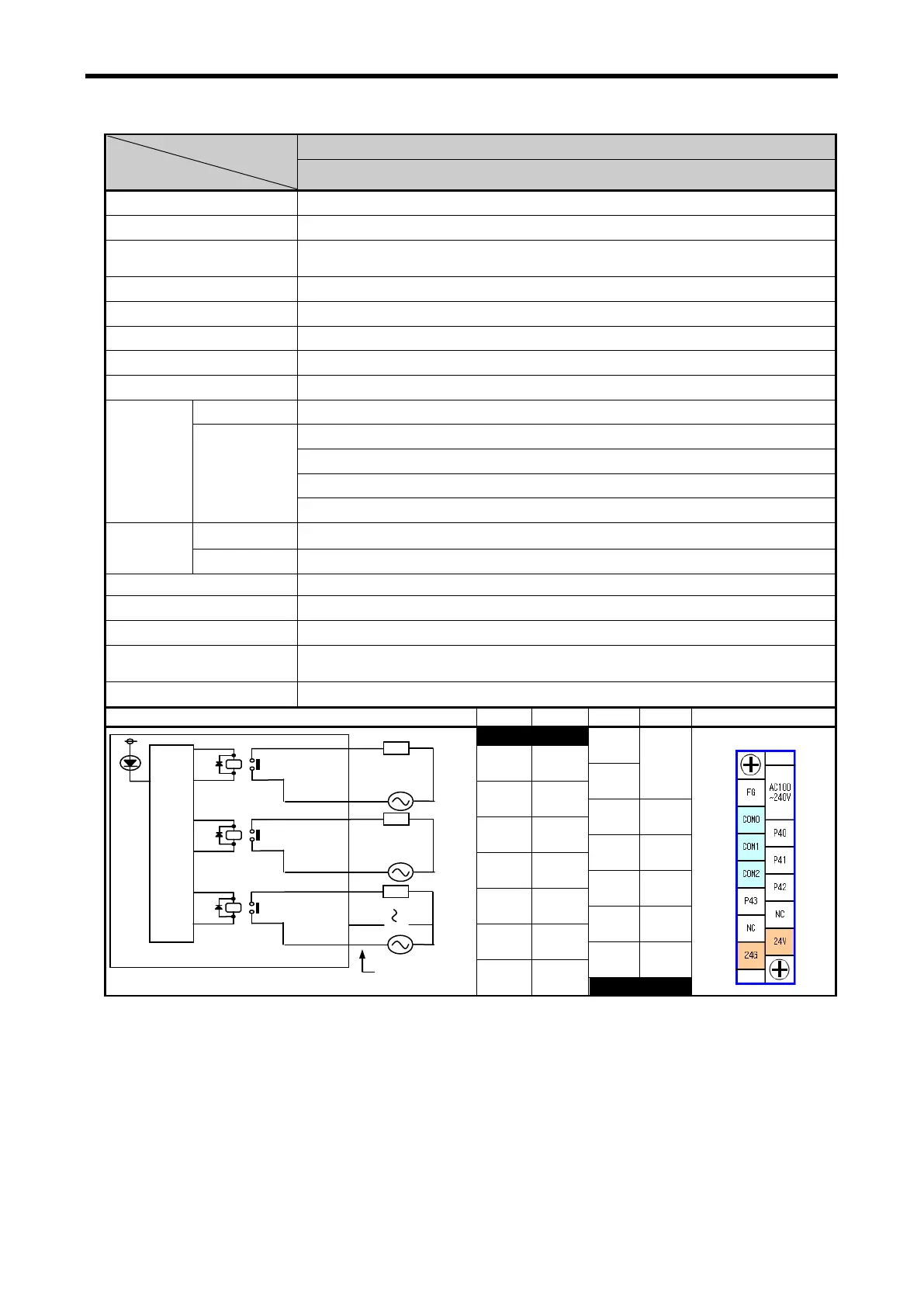

7.3.2 XBC-DR14E 6 point relay output
Model
Specification
Main unit
XBC-DR14E
Output point
6 point
Insulation method
Relay insulation
Rated load
voltage/current
DC24V 2A (resistive load) / AC220V 2A (COS = 1), 5A/COM
Min. load voltage/current
DC5V / 1 ㎃
Max. load voltage
AC250V, DC125V
Off leakage current
0.1 ㎃ (AC220V, 60 ㎐)
Max. On/Off frequency
3,600 times / hour
Surge absorber
None
Service
life
Mechanical
20 million times or more
Electrical
Rated load voltage / Current 100,000 times or more
AC200V / 1.5A, AC240V / 1A (COS = 0.7) 100,000 times or more
AC200V / 1A, AC240V / 0.5A (COS = 0.35) 100,000 times or more
DC24V / 1A, DC100V / 0.1A (L / R = 7 ㎳) 100,000 times or more
Response
time
Off  On
10 ㎳ or less
On  Off
12 ㎳ or less
Common method
4 point / COM
Proper cable size
Stranded cable 0.3~0.75 ㎟ (External diameter 2.8 ㎜ or less)
Operation indicator
LED On when Output On
External connection
method
14 point terminal block connector (M3 X 6 screw)
Weight
340g
Circuit configuration
No.
Contact
No.
Contact
Type
TB1
AC100
~240V
TB2
FG
TB3
TB4
COM0
TB5
40
TB6
COM1
TB7
41
TB8
COM2
TB9
42
TB10
43
TB11
NC
TB12
NC
TB13
24V
TB14
24G
TB2
TB4
TB6
TB8
TB10
TB12
TB14
TB1
TB3
TB5
TB7
TB9
TB11
TB13
Terminal no.
RY
Internal circuit
L
L
E
D
TB5
TB4
RY
L
TB7
TB6
L
TB9
COM0
COM1
RY
TB8
L
COM2
TB12
