Chapter 12 Memory Module

12-1

Chapter12 Memory Module

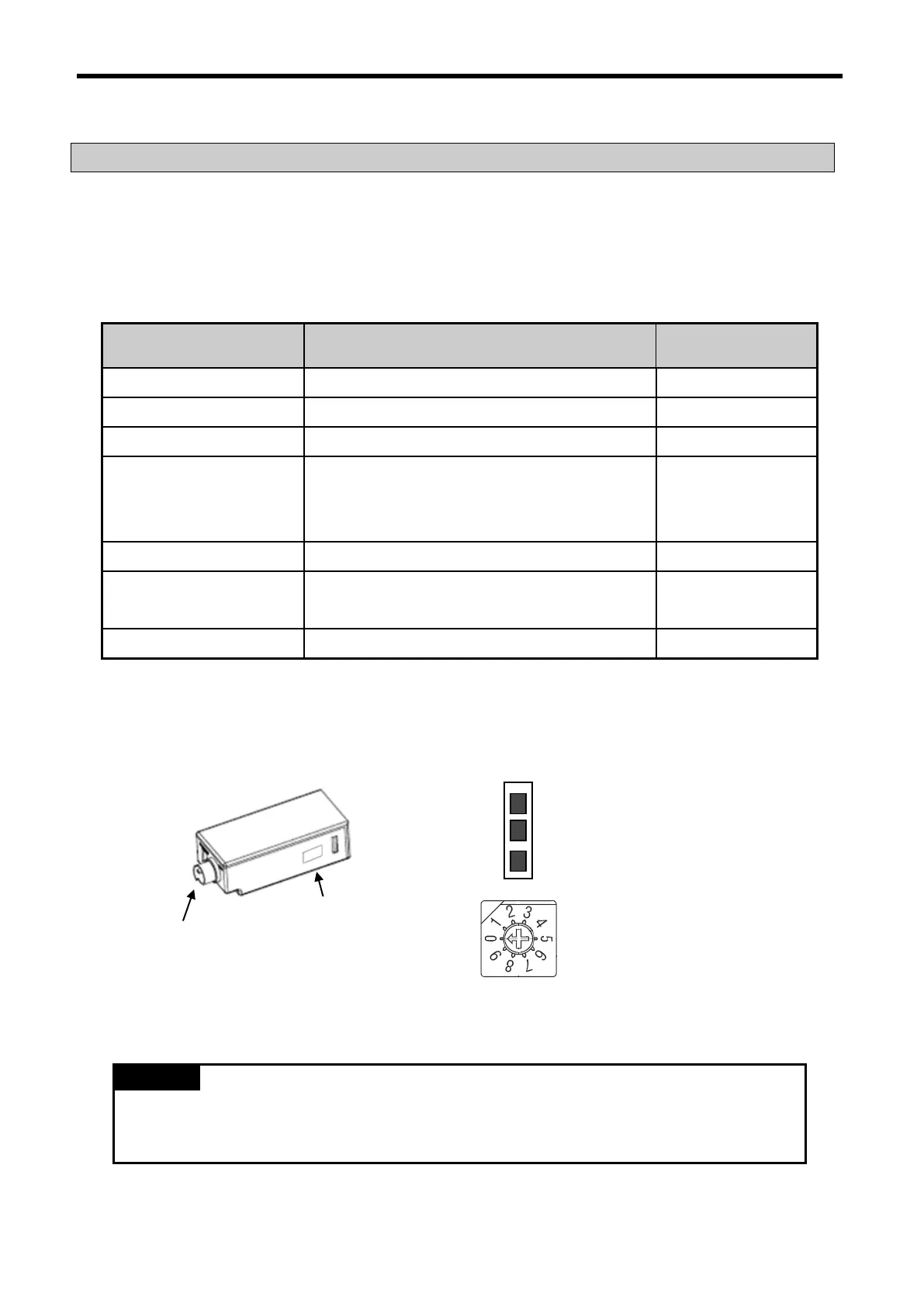

12.1 Memory Module Specification

You can save user program safely or download user program to PLC without special handling when user

program is damaged by using external memory module in XGB PLC

12.1.1 Memory module specification

Item

XBO-M2MB

Ref.

Memory capacity

2MByte

Memory type

Flash Memory

Specification

USB supported, Program Read/Write

Indicator

LED

1. RUN

2. WRITE

3. READ

Operating mode setup

Mode setup by rotary switch

Operating power supply

RS-232C communication connecter,

USB connector

Purpose

For moving

12.1.2 Memory module structure

Note

-.Memory module can be used for XGB (not supported for XGK/I/R)

-.Memory module is not supported at the version below

(XBMS: V2.5 or less, XBCH: V1.8 or less, XECH: V1.2 or less)

RS-232C connector

RUN LED

WRITE LED

READ LED

1 : READ mode

3 : WRITE mode

5 : PADT I/F mode

USB connector
