Chapter 9 Analog Output Option Board (XBO-DA02A)

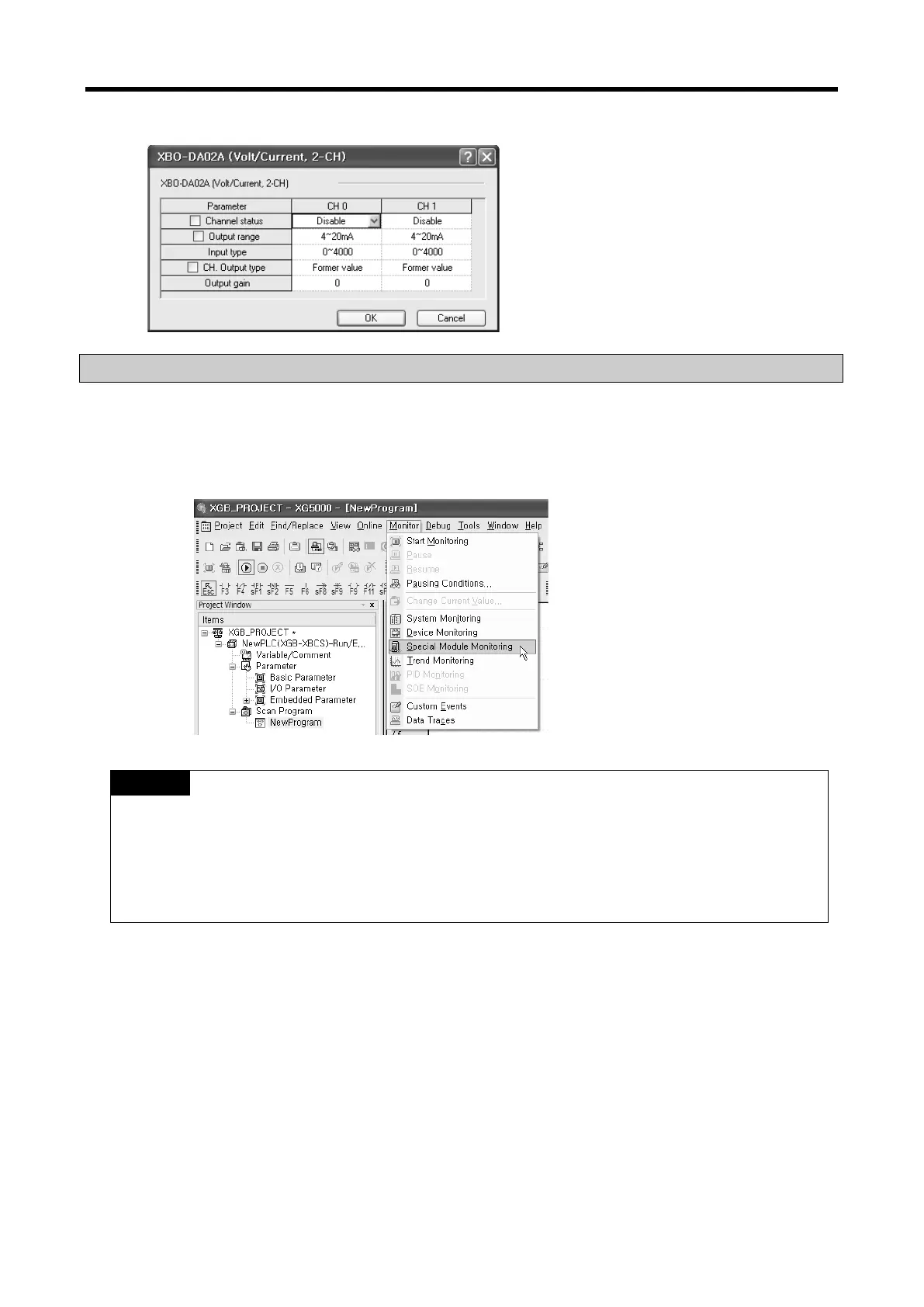

(f) A screen will be displayed for you to specify parameters for respective channels as shown below.
Click a desired item to display parameters to set for respective items.
9.9 Special Module Monitoring Function
The function of the special module monitor is as follows.
(1) Start of [Special Module Monitoring]
Go through [Online] [Connect] and [Monitor] [Special module Monitoring] to start. If the
status is not online, [Special Module Monitoring] menu will not be activated.
Note
1) The screen may not function properly if the system resources are not sufficient. In this case, close
the screen, exit other applications, and rerun XG5000.
2) The I/O parameters set up in [Special Module Monitor] condition are temporarily set up for testing
purpose. Therefore, these I/O parameters are deleted after exit from [Special Module Monitor].
3) The test function of the [Special Module Monitor] enables testing analog output option board
without sequence programming.
9 - 13
