XGB Analog edition manual

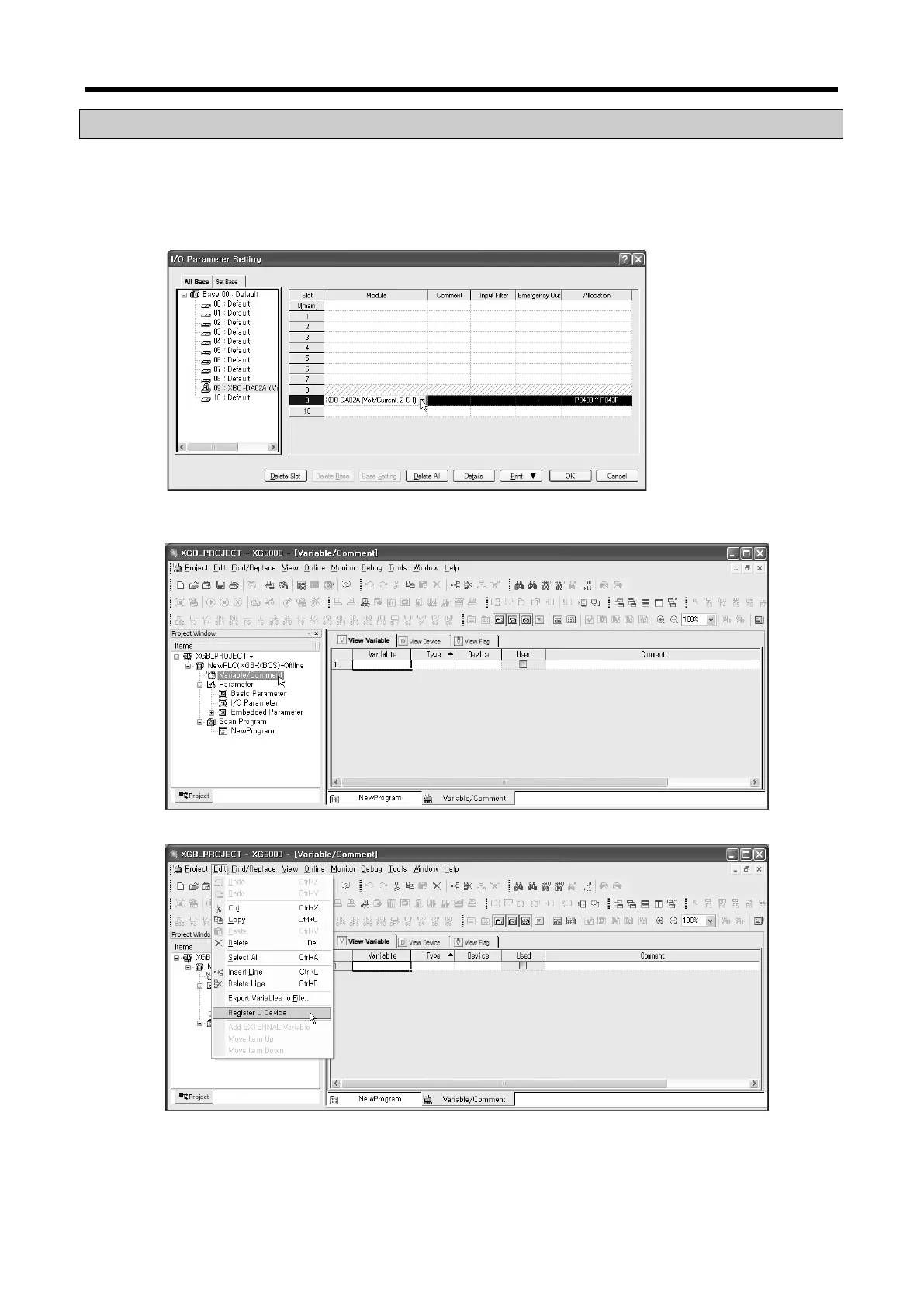

9.10 Register U devices (special module variable)
Register the variables for each option board referring to the special module information that is set in the
I/O parameter. The user can modify the variables and comments.
(1) Registration sequence
(a) Select a special module type in [I/O Parameter Setting] window.
(b) Double-click [Variable/Comment] from the project window.
(c) Select [Edit] [Register U Device].
9 - 16
