Chapter 9 Analog Output Option Board (XBO-DA02A)

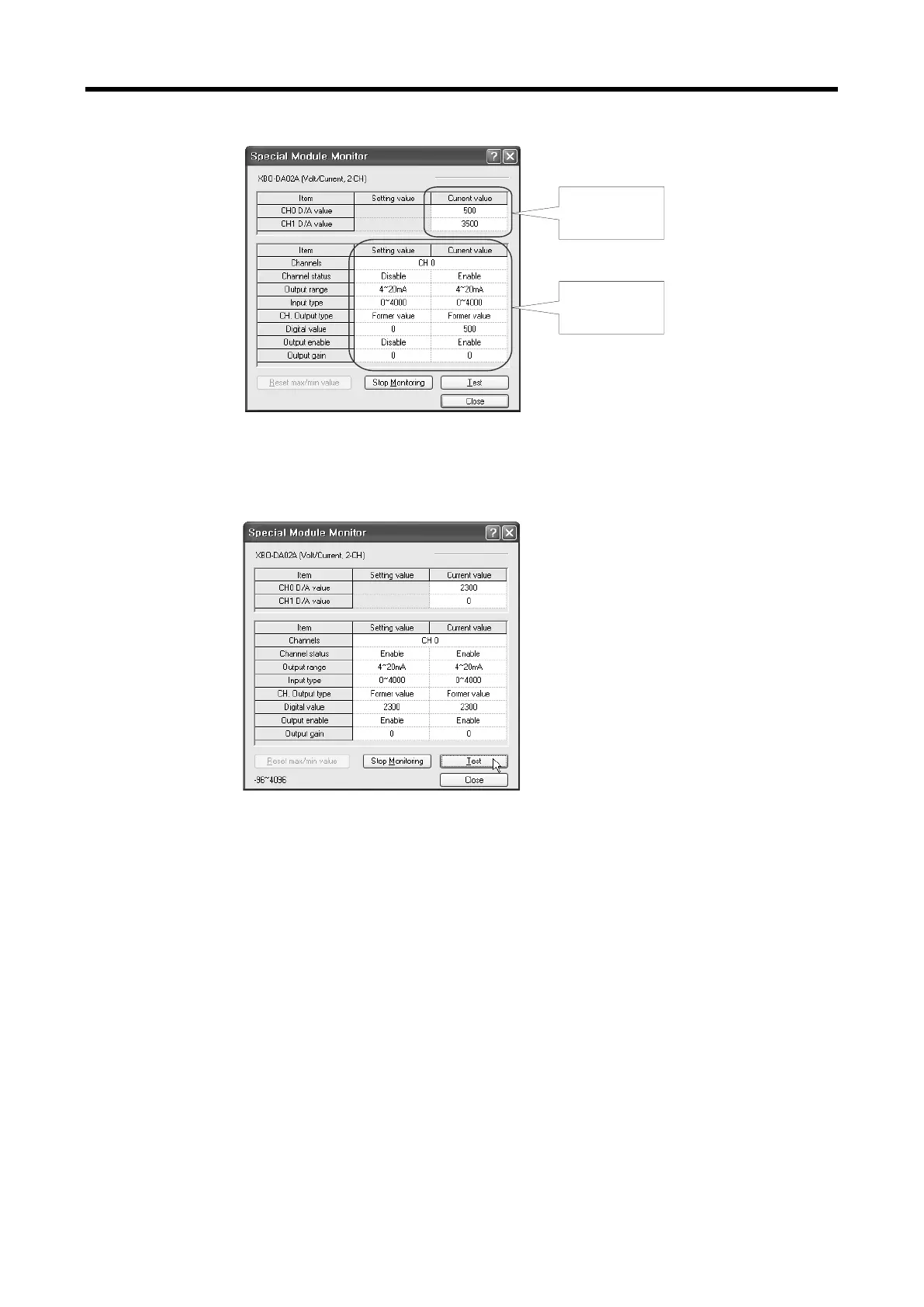

(d) [Start Monitoring] button will show you digital input data of the operating channel.
Output monitoring
Detailed
information of
output CH0
[Start Monitoring] execution screen
(e) [Test] is used to change the parameters of the voltage output module. You can change the
parameters when you click the values at the bottom of the screen. It is only available when
XGB CPU unit’s status is in [Stop Monitoring].
[Test] execution screen
(f) [Close] is used to escape from the monitoring/test screen.
When closing the “Monitoring/Test” screen, the setting value is not saved anymore.
9 - 15
